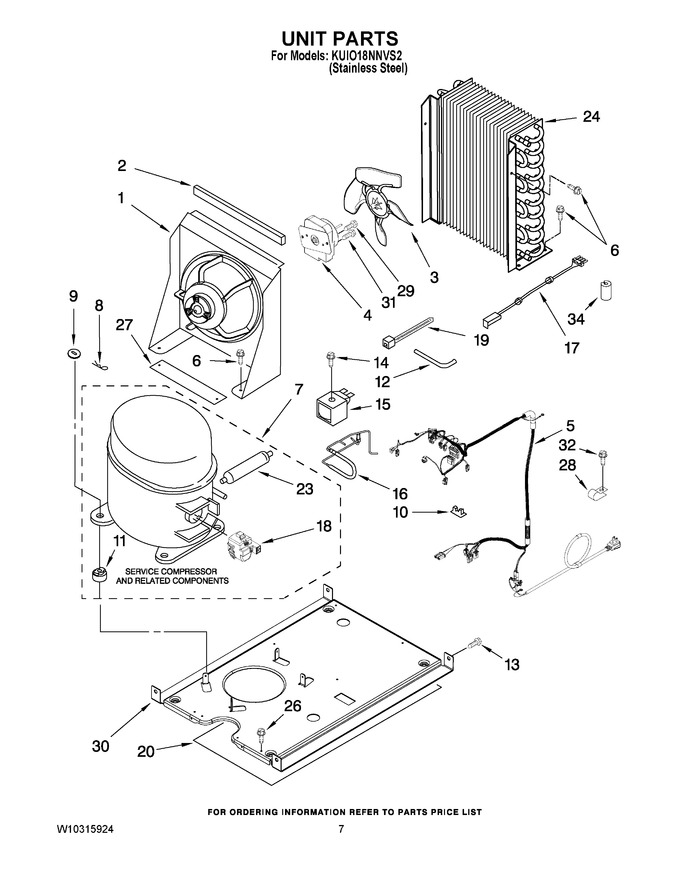

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2185532 | Bracket, Fan Mtg. (Replaces: 2185532) |
|
$ 102.18 | |||||
| 2 | 2185675 | Pad, Foam |
|
- | |||||
| 3 | W10200034 | Blade, Fan |
|
- | |||||
| 4 | W10200032 | Motor & Mounting Plate Assembly |
|
$ 368.92 | |||||
| 5 | W10193297 | Wiring Harness, Complete Unit (includes Power Cord) |
|
- | |||||
| 6 | WP67006908 | Screw (Replaces: 8281244) |
|
Immediately | $ 8.78 | ||||
| 7 | WPW10605286 | Compressor (includes Illus. 11 & 23) (Replaces: W10136195) |
|
$ 773.42 | |||||
| 8 | A201435 | Clip, Mounting |
|
- | |||||
| 9 | A201441 | Shim (4) |
|
$ 9.25 | |||||
| 10 | 1115375 | Clip, Wiring |
|
$ 11.15 | |||||
| 11 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 7.30 | |||||
| 11 | 2185965 | Grommet (4) (production) (Replaces: 2217318) |
|
- | |||||
| 12 | W10528572 | Tube, Process (Replaces: 2208415) |
|
$ 38.79 | |||||
| 13 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 14 | 489472 | Screw |
|
- | |||||
| 15 | WPW10206473 | Coil, Solenoid (Replaces: W10206473) |
|
$ 194.44 | |||||
| 16 | W10534026 | Hot Gas Valve Assy (Replaces: W10129500) |
|
- | |||||
| 17 | WP2187629 | Wiring Harness, Condenser Fan (Replaces: 2187629) |
|
$ 132.58 | |||||
| 18 | W10136197 | Start Relay & Overload Combo Device |
|
$ 76.43 | |||||
| 19 | WPW10339879 | Strap (Replaces: 2155774) |
|
$ 8.30 | |||||
| 20 | W10282061 | Shield,heat |
|
- | |||||
| 23 | W10843121 | Drier (production) (Replaces: W10183199) |
|
Immediately | $ 57.13 | ||||
| 23 | W10843121 | Drier (service) (Replaces: 4387019) |
|
Immediately | $ 57.13 | ||||
| 24 | W10129494 | Condenser-shroud Assembly |
|
- | |||||
| 26 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 27 | 2217397 | Pad, Foam (2) |
|
- | |||||
| 28 | 2185960 | Clamp-service Cord |
|
- | |||||
| 29 | 8281197 | Screw |
|
- | |||||
| 30 | W10139616 | Base, Unit |
|
- | |||||
| 31 | WP8281196 | Screw (Replaces: 8281196) |
|
Immediately | $ 7.55 | ||||
| 32 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 34 | W10852725 | Grommet, Cond (1) (Replaces: 2319835) |
|
$ 8.09 | |||||
| NI | N/P | Refrigerant Charge (6.5 Oz. (r134a)) |
|
- |
