01 - Cabinet Liner And Door Parts


02 - Evaporator Ice Cutter Grid And Water Parts


03 - Pump Parts


04 - Control Panel Parts

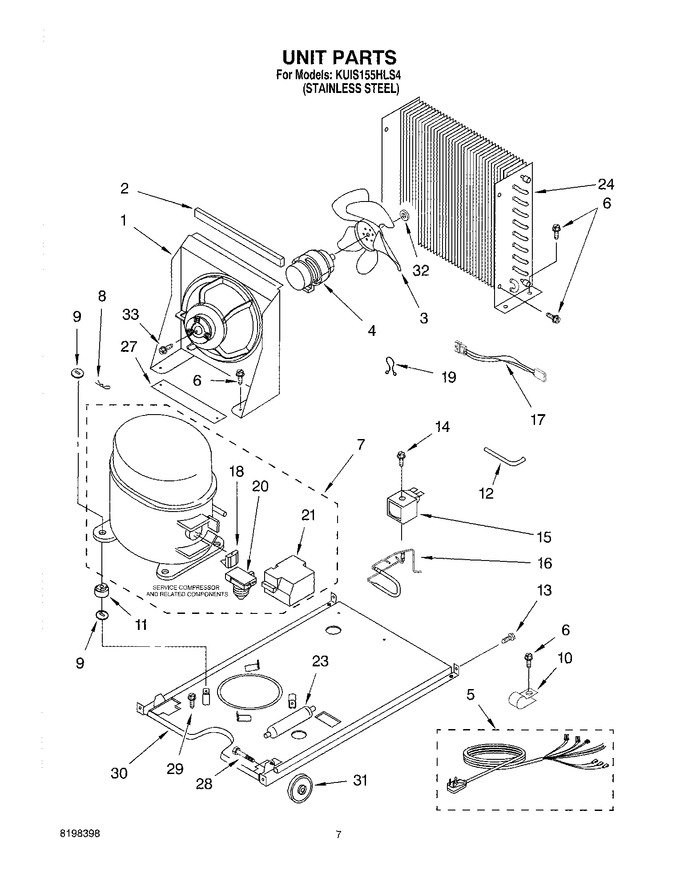

05 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP2185532		Bracket, Fan Mtg.   (Replaces: 2185532)				$ 102.18
2	2185675		Pad, Foam		Appelez-nous	-
3	2190685		Blade, Fan				$ 52.00
4	W10822259		Motor, Fan   (Replaces: 2188537)			Immediately	$ 221.30
6	WP489069		Screw 8-18 X 1/2   (Replaces: 304392)			Immediately	$ 8.40
7	W11735041		Compressor   (Replaces: 2208370)				$ 675.23
8	A201435		Clip, Mounting		Appelez-nous	-
9	A201441		Shim (4)				$ 9.25
10	2185960		Clamp (power Cord)		Appelez-nous	-
11	2185965		Grommet (4)   (Replaces: 2217318)		Appelez-nous	-
12	W10528572		Tube, Process   (Replaces: 2208415)				$ 38.79
13	WP999367		Screw   (Replaces: 489423)				$ 8.56
14	489472		Screw		Appelez-nous	-
15	759112		Coil, Solenoid				$ 72.80
16	W10724988		Valve, Body   (Replaces: 2208413)				$ 329.34
17	2187267		Wiring Harness, Condenser Fan		Appelez-nous	-
18	WP2217223		Overload   (Replaces: 2217223)				$ 142.71
19	2217322		Twist Loc		Appelez-nous	-
20	WP2217224		Relay, Start   (Replaces: 2217224)			Immediately	$ 104.82
21	WP2162358		Cover, Terminal   (Replaces: 2208371)				$ 95.29
23	W10843121		Drier   (Replaces: 2209223)			Immediately	$ 57.13
24	8201810		Condenser   (Replaces: 2185529)				$ 304.28
27	2217397		Pad, Foam (2)   (Replaces: 2185858)		Appelez-nous	-
28	3370389		Screw 10-32x15/16				$ 5.70
29	WP489128		Screw, Ground 8-32 X 3/8   (Replaces: 488500)				$ 11.40
30	2185511		Base, Unit		Appelez-nous	-
31	302819		Wheel				$ 5.65
32	WP486692		Nut, Speed   (Replaces: 486692)				$ 8.43
33	WP8281196		Screw 8-32 X 3/4   (Replaces: 489494)			Immediately	$ 7.55
