01 - Cabinet Liner And Door Parts

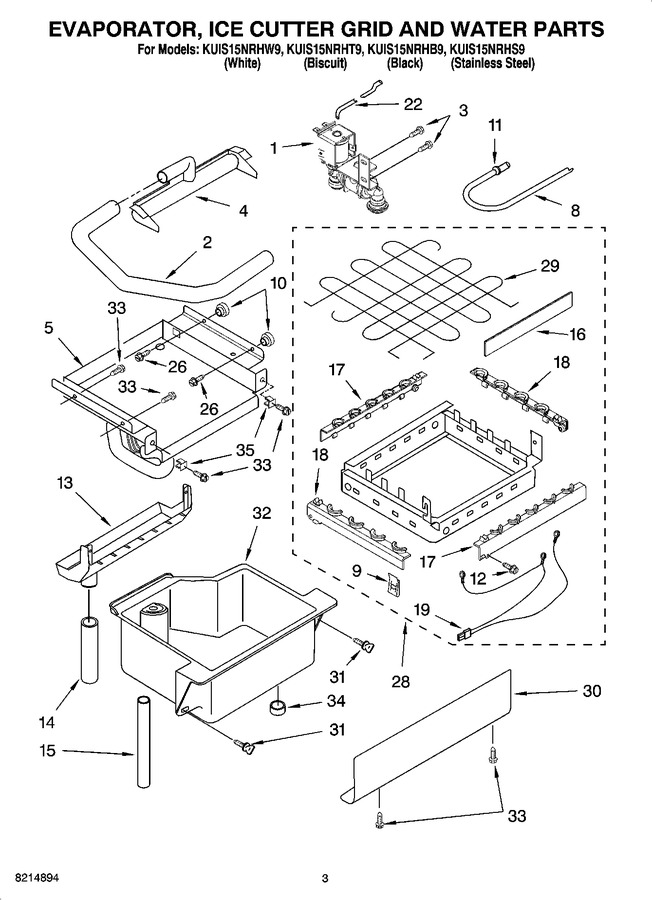

02 - Evaporator, Ice Cutter Grid And Water Parts


03 - Pump Parts


04 - Control Panel Parts


05 - Unit Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10881366		Valve, Complete Water   (Replaces: 2313644)				$ 204.81
2	W10863947		Tube, Plastic   (Replaces: 2217286)				$ 87.44
3	WP488163		Screw   (Replaces: 488208)				$ 7.92
4	W10863947		Dispenser, Water   (Replaces: 2185523)				$ 87.44
5	WPW10218037		Evaporator   (Replaces: W10218037)				$ 559.86
8	W10823511		Tube, Water Fill   (Replaces: 2172593)			Immediately	$ 32.41
9	488660		Nut, Speed		Appelez-nous	-
10	836667		Spacer		Appelez-nous	-
11	2208539		Fastener, Pushnut				$ 8.31
12	WP489443		Screw   (Replaces: 489443)			Immediately	$ 8.33
13	WP2185625		Reservoir, Water Slide   (Replaces: 2185625)				$ 188.34
14	WP2185626		Tube   (Replaces: 2185626)				$ 110.82
15	WP2313890		Hose, Overflow   (Replaces: 2185673)				$ 79.87
16	2313604		Guide-ice, Grid		Appelez-nous	-
17	2313603		Bracket, Front And Rear		Appelez-nous	-
18	8201791		Bracket, Side Left And Right   (Replaces: 2313602)				$ 28.15
19	2185681		Harness, Grid				$ 137.90
22	2313745		Tube				$ 52.44
26	3400886		Screw 8-18 X 1 1/4				$ 5.65
28	WP2313637		Grid Assembly (complete)   (Replaces: 2313637)				$ 384.29
29	4387020		Wire, Grid Cutter   (Replaces: 2174754)				$ 106.21
30	2185570		Cover, Grid				$ 105.88
31	8281228		Thumbscrew		Appelez-nous	-
32	8201653		Reservoir, Water		Appelez-nous	-
33	WP3400884		Screw 8-18 X 5/8   (Replaces: 3400884)				$ 8.10
34	WP2185696		Cap, Drain   (Replaces: 2185696)				$ 27.54
35	WP3400909		Nut, Push-in   (Replaces: 3400909)				$ 7.94
