SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Refrigerator Door Parts

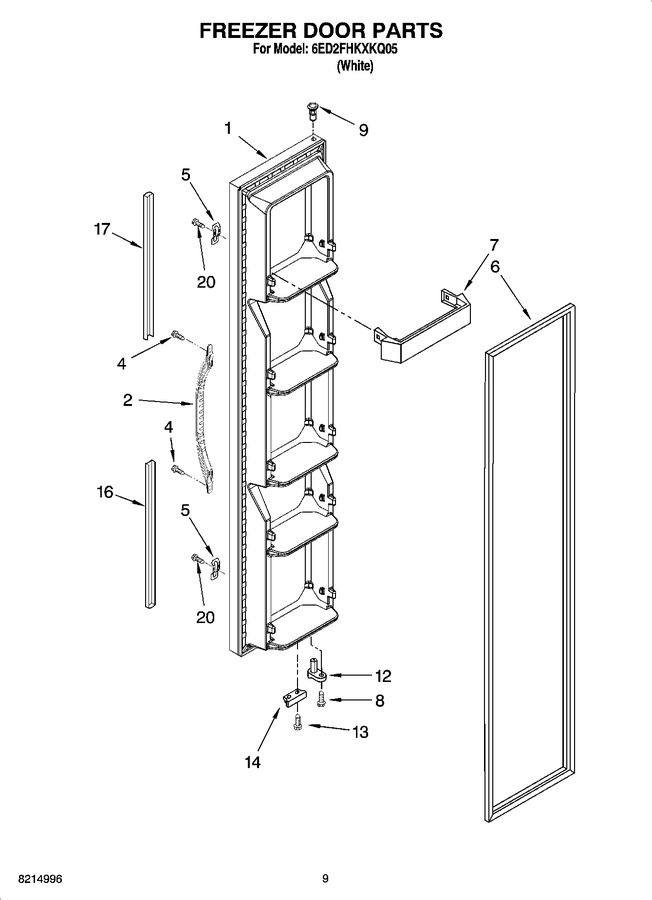

06 - Freezer Door Parts


07 - Air Flow Parts


08 - Control Parts


09 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2206725W		Freezer Door (includes 6) (white)		Appelez-nous	-
2	2186649W		Handle, Center (white)				$ 70.49
4	WP489491		Screw   (Replaces: 489491)				$ 7.30
5	WP2195327		Clip (4)   (Replaces: 2195327)				$ 7.77
6	2159072		Door, Gasket Magnetic   (Replaces: 2221301)				$ 323.60
7	2194286K		Trivet (5)		Appelez-nous	-
8	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
9	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 8.15
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
13	WP489483		Screw   (Replaces: 489420)				$ 11.41
14	WP2206629B		Bracket, Door Stop   (Replaces: 2206629)				$ 42.79
16	2194969W		Extension, Bottom (white)				$ 5.51
17	2194971W		Extension, Top (white)				$ 44.85
20	WP3400852		Screw   (Replaces: 3400852)				$ 10.33

    View Diagram in Separate Window       Print Part List
