01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Refrigerator Door Parts


06 - Freezer Door Parts


07 - Air Flow Parts


08 - Control Parts


09 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

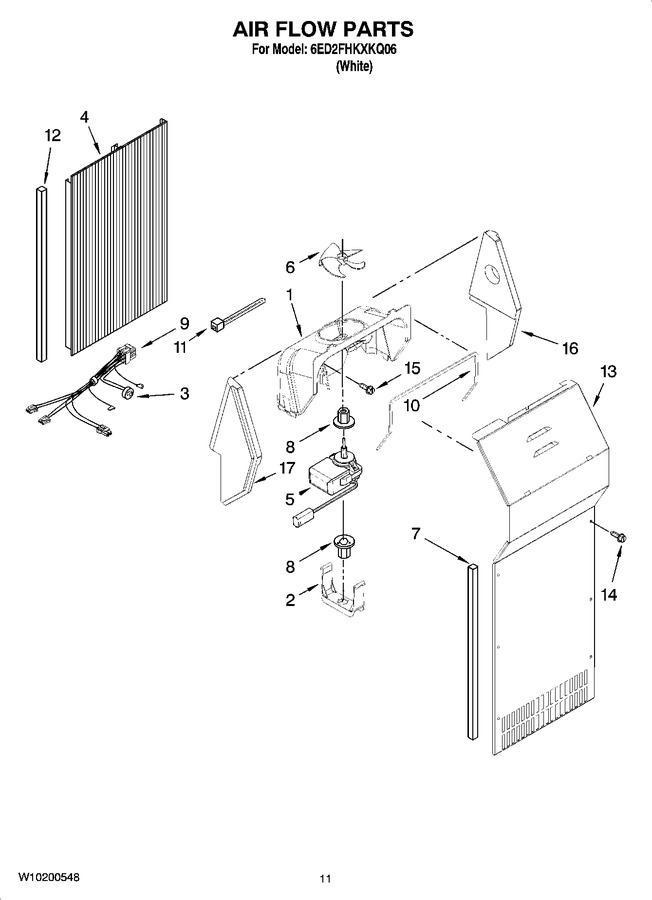

1	W11254898		Fan Scroll   (Replaces: 2182119)			Immediately	$ 339.43
2	2155590		Retainer Fan Motor				$ 5.83
3	WPW10225581		Defrost Bi-metal   (Replaces: 2188824)			Immediately	$ 50.77
4	W11503180		Air Duct Freezer   (Replaces: 2203592)				$ 67.62
5	2187151		Fan Motor		Appelez-nous	-
6	WP2169142		Fan Blade   (Replaces: 2169142)			Immediately	$ 43.41
7	WP2304241		Gasket, Evaporator Cover (2)   (Replaces: 2304241)			Immediately	$ 86.94
8	WP2176759		Fan Grommet (2)   (Replaces: 2176759)				$ 8.16
9	W10242395		Harness, Fan Evaporator (includes 3)   (Replaces: W10129781)		Appelez-nous	-
10	WP2155789		Gasket, Fan Scroll   (Replaces: 2155788)				$ 8.18
11	WPW10339879		Wire Tie   (Replaces: 2172840)				$ 8.30
12	4388500		Gasket   (Replaces: 2203875)				$ 94.91
13	2203840		Cover, Evaporator (includes 7)		Appelez-nous	-
14	4389654		Screw (6)   (Replaces: 8281159)				$ 14.58
15	WP489478		Screw   (Replaces: 489478)				$ 8.18
16	4388358		Support, R.s   (Replaces: 2203595)				$ 32.72
17	4388358		Support, L.s   (Replaces: 2203596)				$ 32.72
