Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2180948 Shroud Appelez-nous -
2 680811 Screw, Appelez-nous -
3 572728 Blade, Fan Appelez-nous -
4 1108089 Motor, Fan Appelez-nous -
5 560817 Bracket Appelez-nous -
6 681305 Screw, 1/4-20 X 1/2 (6) Appelez-nous -
7 W10309988 Compressor   (Replaces: 2176659) In-Stock Immediately $ 587.29

8 680233 Screw (4) Appelez-nous -
9 595230 Washer (4) Appelez-nous -
10 585564 Sleeve (4) Appelez-nous -
11 596355 Grommet (4) Appelez-nous -
14 489472 Screw Appelez-nous -
15 759112 Coil, Solenoid Special Order $ 72.80

16 WP759113 Valve, Body   (Replaces: 759113) Special Order $ 326.37

18 2183404 Overload Appelez-nous -
20 2183410 Relay, Start Appelez-nous -
21 WP2162358 Cover, Terminal   (Replaces: 2162358) Special Order $ 95.29

23 W10843121 Drier   (Replaces: 2180801) In-Stock Immediately $ 57.13

24 W10139458 Condenser   (Replaces: 2180808) Special Order $ 279.05

25 2180807 Accumulator Appelez-nous -
27 758811 Deflector, Front Appelez-nous -
29 WP90767 Screw, 8 X 3/8   (Replaces: 681167) In-Stock Immediately $ 8.25

30 2180938 Base, Unit Appelez-nous -
32 681650 Conical Washer 1/4-20 Hex Appelez-nous -
33 489199 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

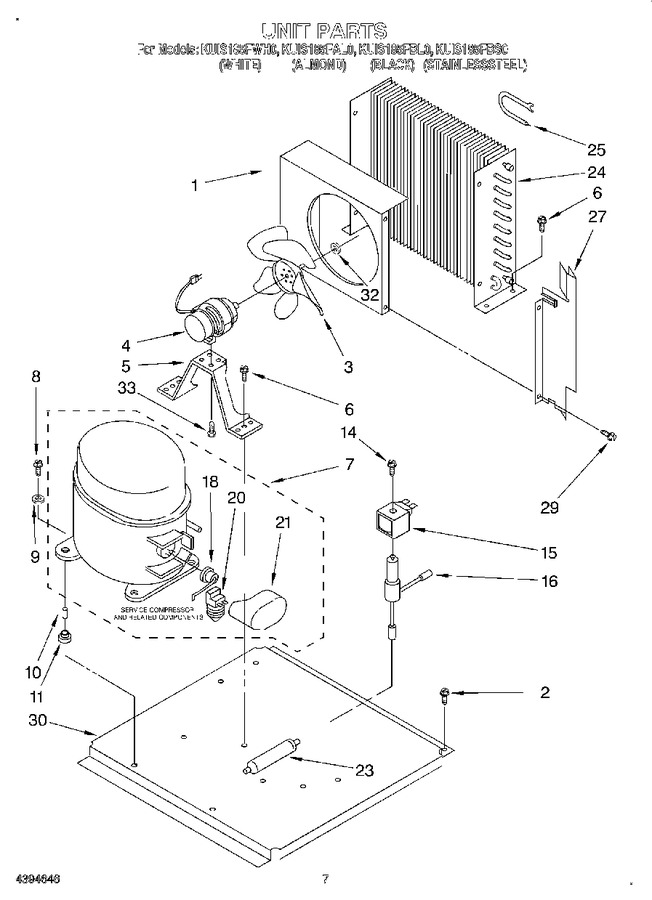

Diagram for KUIS185FBL0
