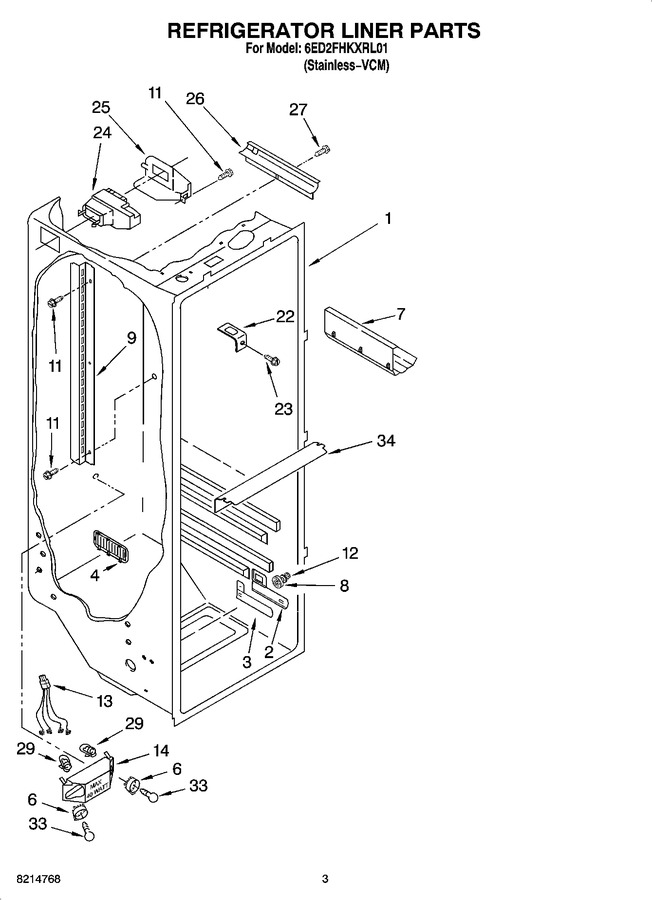

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 2194744 | Escutcheon, Meat Pan Control |
|
$ 91.28 | |||||
| 3 | 2182757 | Slide Meat |
|
$ 75.15 | |||||
| 4 | 2257741 | Louver Pan Control |
|
- | |||||
| 6 | WP2175210 | Shroud, Light (Replaces: 2169193) |
|
$ 82.61 | |||||
| 7 | W10777924 | Rack, Wine & Egg (Replaces: 2179404K) |
|
$ 23.60 | |||||
| 8 | W11223328 | Stud Assembly (Replaces: 2196485) |
|
Immediately | $ 14.07 | ||||
| 9 | 2206270 | Ladder, Shelf (2) |
|
- | |||||
| 11 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 12 | WP3-24004-109 | Screw (Replaces: 3400894) |
|
$ 8.05 | |||||
| 13 | 2311637 | Wire Harness, Crisper Light (Replaces: 2256037) |
|
$ 140.23 | |||||
| 14 | 2256035 | Bracket, Dual Crisper Light |
|
$ 62.54 | |||||
| 22 | WP2256085 | Bracket, Retainer (Replaces: 1123919) |
|
$ 34.38 | |||||
| 23 | WP488488 | Screw (2) (Replaces: 489290) |
|
$ 7.68 | |||||
| 24 | WPW10129864 | Air Diffuser Assembly (Replaces: 2209752) |
|
$ 344.30 | |||||
| 25 | WP2212240 | Air Diffuser Cover (Replaces: 2212240) |
|
$ 131.57 | |||||
| 26 | 2150331 | Cover, Conduit |
|
$ 24.40 | |||||
| 27 | W10759522 | Screw (Replaces: 486298) |
|
$ 7.75 | |||||
| 29 | 4387478 | Socket (Replaces: 2162085) |
|
Immediately | $ 110.16 | ||||
| 33 | WP67002552 | Light Bulb (Replaces: 851682) |
|
Immediately | $ 11.75 | ||||
| 34 | 2209769 | Light Lens |
|
- |
