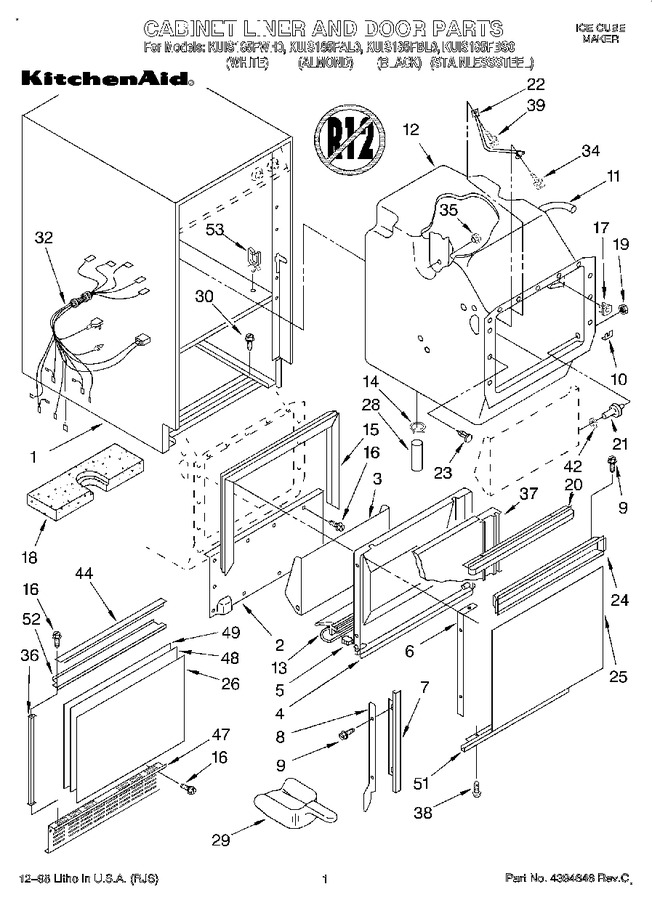

01 - Cabinet Liner And Door, Lit/optional
02 - Evaporator, Ice Cutter Grid And Water
03 - Pump
04 - Escutcheon And Control
05 - Unit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2175636 | Shell (white) |
|
- | |||||
| 1 | 2175698 | Shell (almond) |
|
- | |||||
| 1 | 2175696 | Shell (black) |
|
- | |||||
| 2 | 2175619 | Front, Shell |
|
- | |||||
| 3 | 756330 | Door, Inner Bin |
|
- | |||||
| 4 | 758655 | Liner, Door |
|
- | |||||
| 5 | 593192 | Plug, Hinge |
|
- | |||||
| 6 | 593104 | Strip, Tapping (2) |
|
- | |||||
| 7 | 2181114 | Trim, Door (2) (black) |
|
- | |||||
| 7 | 2181115 | Trim, Door (2) (almond) |
|
- | |||||
| 7 | 2181113 | Trim, Door (2) (white) |
|
- | |||||
| 7 | 759272 | Trim, Door (2) (stainless Steel) |
|
- | |||||
| 8 | 593184 | Rail, R.s. |
|
- | |||||
| 8 | 593185 | Rail, L.s. |
|
- | |||||
| 9 | 681459 | Screw, 8-32 X 5/8 (6) |
|
- | |||||
| 10 | 758492 | Washer (2) |
|
- | |||||
| 11 | 759213 | Tube, Water Fill |
|
- | |||||
| 12 | 2180752 | Liner (includes Nos. 10, 11, 17, 19, 21, & 35) |
|
- | |||||
| 13 | 555555 | Gasket, Bottom (Replaces: 2172898) |
|
$ 168.82 | |||||
| 14 | 596023 | Clamp (2) |
|
- | |||||
| 15 | 758921 | Gasket |
|
- | |||||
| 16 | WP488729 | Screw, No.8 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 17 | 596807 | Grommet |
|
- | |||||
| 18 | 756891 | Insulation, Bottom, Foam |
|
- | |||||
| 19 | 681542 | Nut |
|
- | |||||
| 20 | 2181154 | Handle, Door (almond) |
|
- | |||||
| 20 | 2181152 | Handle, Door (black) |
|
- | |||||
| 20 | 2181153 | Handle, Door (white) |
|
- | |||||
| 21 | 758220 | Stud (2) |
|
- | |||||
| 22 | 593183 | Well, Bin Thermostat |
|
- | |||||
| 23 | 596812 | Clip, Panel (12) |
|
- | |||||
| 24 | 759274 | Pocket, Handle (stainless Steel) |
|
- | |||||
| 24 | 2181119 | Pocket, Handle (almond) |
|
- | |||||
| 24 | 2181117 | Pocket, Handle (white) |
|
- | |||||
| 24 | 2181118 | Pocket, Handle (black) |
|
- | |||||
| 25 | 758745 | Panel, Exterior (almond & Harvest Gold) |
|
- | |||||
| 25 | 758746 | Panel, Exterior (white & Black) |
|
- | |||||
| 25 | 758923 | Panel, Exterior (stainless Steel) |
|
- | |||||
| 26 | 758722 | Panel, Outer (almond/ Harvest Gold) |
|
- | |||||
| 26 | 758720 | Panel, Outer (white/ Black) |
|
- | |||||
| 26 | 758924 | Panel, Outer (stainless Steel) |
|
- | |||||
| 28 | 593577 | Connector, Hose |
|
- | |||||
| 29 | W11420408 | Scoop (Replaces: 585158) |
|
$ 28.61 | |||||
| 30 | 680811 | Screw, 10-32 X 3/8 |
|
- | |||||
| 32 | 2174781 | Wiring Harness, Cabinet |
|
- | |||||
| 34 | 680930 | Thumbscrew, 10-1/2 |
|
- | |||||
| 35 | 596715 | Well Nut (3) |
|
- | |||||
| 36 | 2181102 | Trim, Side (2) (white) |
|
- | |||||
| 36 | 2181103 | Trim, Side (2) (black) |
|
- | |||||
| 36 | 2181104 | Trim, Side (2) (almond) |
|
- | |||||
| 36 | 758713 | Trim, Side (2) (stainless Steel) |
|
- | |||||
| 37 | 758608 | Insulation, Door |
|
- | |||||
| 38 | 681196 | Screw |
|
- | |||||
| 39 | 681419 | Thumbscrew |
|
- | |||||
| 42 | 681613 | Washer |
|
- | |||||
| 44 | 2181107 | Trim, Top And Bottom (almond) |
|
- | |||||
| 44 | 2181106 | Trim, Top And Bottom (black) |
|
- | |||||
| 44 | 758716 | Trim, Top And Bottom (stainless Steel) |
|
- | |||||
| 44 | 2181105 | Trim, Top And Bottom (white) |
|
- | |||||
| 47 | 2180778 | Grill, Front (almond) |
|
- | |||||
| 47 | 758769 | Grill, Front (black) |
|
- | |||||
| 47 | 759132 | Grill, Front (white) |
|
- | |||||
| 48 | 758770 | Panel, Filler |
|
- | |||||
| 49 | 758771 | Panel, Inner |
|
- | |||||
| 51 | 2181111 | Trim, Door (lower) (almond) |
|
- | |||||
| 51 | 2181109 | Trim, Door (lower) (white) |
|
- | |||||
| 51 | 755677 | Trim, Door (lower) (stainless Steel) |
|
- | |||||
| 51 | 2181110 | Trim, Door (lower) (black) |
|
- | |||||
| 52 | 2175604 | Support, Front |
|
- | |||||
| 53 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | |||||
| 53 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | ||||
| 53 | 212643 | Sealer, Gum (22 Pcs. 3/16`` X 7``) |
|
Immediately | $ 82.13 | ||||
| 53 | 876370 | Kit, Insulation (5 Pcs. 3`` X 24`` X 48) (Replaces: 479976) |
|
$ 243.14 | |||||
| 53 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | ||||
| 53 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 53 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 53 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 53 | 978030 | Valve, Access (3/4``) |
|
$ 137.25 | |||||
| 53 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 53 | 489482 | Retainer, Wire |
|
- | |||||
| 53 | WP279368 | Cement, Insulation (1 Oz.) (Replaces: 797403) |
|
Immediately | $ 116.46 | ||||
| LIT2181092 | Use & Care Guide |
|
- | ||||||
| LIT2180830 | Service And Wiring Sheet |
|
- | ||||||
| LIT2175675 | Instructions, Installation |
|
- |
