Diagram for 04 - Escutcheon And Control

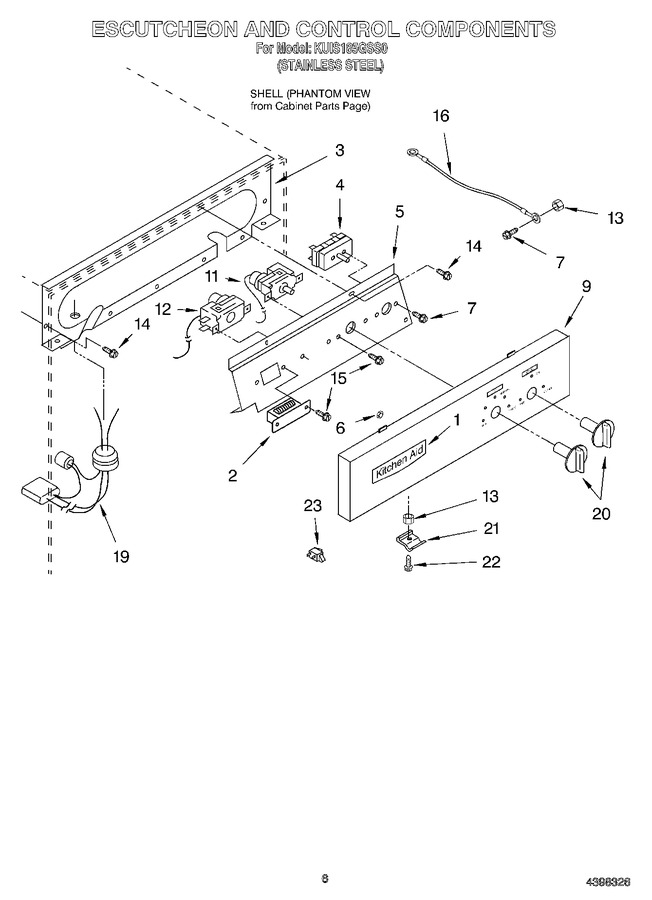

04 - Escutcheon And Control

Diagram for 05 - Unit
05 - Unit


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 2005292 Nameplate Special Order $ 52.20

2 2165483 Transformer Appelez-nous -
3 2165530 Escutcheon, Panel Appelez-nous -
4 2181045 Switch, Service Appelez-nous -
5 2181207 Bracket, Control Appelez-nous -
6 WP2004333 Palnut (2)   (Replaces: 2004333) Special Order $ 11.24

7 WP486579 Screw, 8-32 X 1/4   (Replaces: 595005) Special Order $ 7.89

9 2181219 Escutcheon Appelez-nous -
11 759308 Thermostat, Evaporator Special Order $ 107.45

12 759309 Thermostat, Bin Control Special Order $ 126.04

13 WP488130 Nut, Hex   (Replaces: 488130) Special Order $ 7.32

14 WP488729 Screw, No.8 X 1/2   (Replaces: 487909) In-Stock Immediately $ 8.28

15 681036 Screw, Appelez-nous -
16 3184020 Ground Wire   (Replaces: 2181149) Special Order $ 86.92

19 758567 Harness, Grid Appelez-nous -
20 2181229 Knob Appelez-nous -
21 759007 Latch Appelez-nous -
22 680964 Screw, 8-32 X 1/2 Appelez-nous -
23 W11384469 Switch, Rocker   (Replaces: 2154668) In-Stock Immediately $ 39.09
