SELECT A DIAGRAM

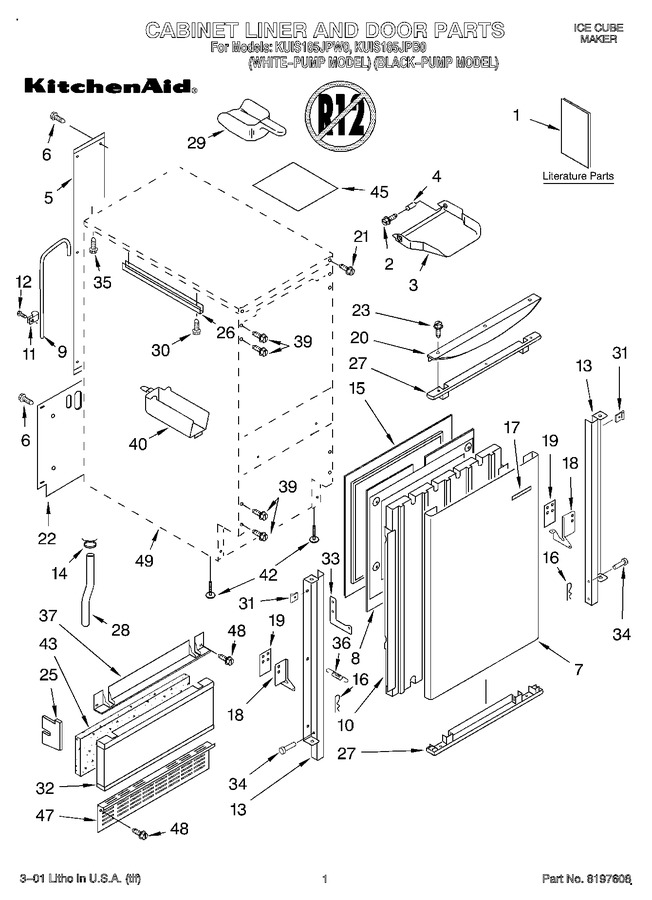

01 - Cabinet Liner And Door, Literature


02 - Evaporator, Ice Cutter Grid And Water


03 - Pump


04 - Control Panel


05 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2208388		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT2208598		Literature Parts (service & Wiring Sheet)		Appelez-nous	-
2	3400886		Screw 8-18 X 1 1/4				$ 5.65
3	2208354		Bin, Door		Appelez-nous	-
4	2185678		Spacer				$ 11.03
5	2217394		Cover, Wiring   (Replaces: 2185575)		Appelez-nous	-
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
7	2208352B		Panel, Exterior (black)		Appelez-nous	-
7	2208352W		Panel, Exterior (white)		Appelez-nous	-
8	2208353		Panel, Interior		Appelez-nous	-
9	2185926		Tube, Air Vent		Appelez-nous	-
10	2208377		Insulation		Appelez-nous	-
11	WP2208367		Clamp, Half   (Replaces: 2208367)				$ 73.20
12	WP489464		Screw   (Replaces: 3400881)			Immediately	$ 8.38
13	2217466		Bracket, Door (left Side)   (Replaces: 2208376)		Appelez-nous	-
13	2217465		Bracket, Door (right Side)   (Replaces: 2208375)		Appelez-nous	-
14	WP489503		Clamp   (Replaces: 489503)			Immediately	$ 11.29
15	2208361		Gasket, Door		Appelez-nous	-
16	63823		Cotter Pin		Appelez-nous	-
17	2212762		Nameplate (black)		Appelez-nous	-
17	2212760		Nameplate (white)		Appelez-nous	-
18	2208426		Hinge (right Side)		Appelez-nous	-
18	2208425		Hinge (left Side)		Appelez-nous	-
19	2208401		Shim, Hinge		Appelez-nous	-
20	2208440W		Handle, Door (white)		Appelez-nous	-
20	2208440B		Handle, Door (black)		Appelez-nous	-
21	8281188		Screw 8-18 X 1/2   (Replaces: 3400887)		Appelez-nous	-
22	WPW10136200		Assembly, Unit Cover   (Replaces: 2208399)				$ 113.70
23	8281138		Screw, Handle (black)		Appelez-nous	-
23	8281188		Screw, Handle (white)   (Replaces: 8281137)		Appelez-nous	-
25	2217225		Pad, Foam   (Replaces: 2208402)		Appelez-nous	-
26	2185691		Channel, Wiring		Appelez-nous	-
27	2208350W		Endcap, Door (white)		Appelez-nous	-
27	W11413461		Endcap, Door (black)   (Replaces: 2208350B)		Appelez-nous	-
28	2208459		Tube, Drain		Appelez-nous	-
29	W11420408		Scoop   (Replaces: 2208386)				$ 28.61
30	WP3400884		Screw 8-18 X 5/8   (Replaces: 3400884)				$ 8.10
31	2217222		Clip		Appelez-nous	-
32	2208382W		Panel, Lower (white)		Appelez-nous	-
32	2208382B		Panel, Lower (black)		Appelez-nous	-
33	2208487		Bracket, Spring		Appelez-nous	-
34	2208417		Pin, Hinge		Appelez-nous	-
35	WP250830		Screw, Ground 8-32 X 1/2   (Replaces: 489048)				$ 8.78
36	W11095554		Spring   (Replaces: 2208480)		Appelez-nous	-
37	2208383B		Endcap, Panel (black)		Appelez-nous	-
37	2208383W		Endcap, Panel (white)		Appelez-nous	-
39	WP999367		Screw 10-32x11/16   (Replaces: 489423)				$ 8.56
40	2208449		Holder, Scoop		Appelez-nous	-
42	8193716		Leg, Leveler   (Replaces: 3376439)			Immediately	$ 88.96
43	2208384		Insulation		Appelez-nous	-
45	2185690		Shield, Electrical		Appelez-nous	-
47	2208366B		Grill, Front (black)		Appelez-nous	-
47	2208366W		Grill, Front (white)		Appelez-nous	-
48	WP489474		Screw 8-18 X 1   (Replaces: 489474)			Immediately	$ 8.55
49	978030		Valve, Access (3/4``)				$ 137.25
49	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
49	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
49	876370		Kit, Insulation (5 Pcs. 3`` X 24`` X 48)   (Replaces: 479976)				$ 243.14
49	978026		Valve, Access (5/16``)			Immediately	$ 134.49
49	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
49	978028		Valve, Access (1/2)		Appelez-nous	-
49	978029		Valve Access (5/8``)				$ 93.85
49	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
49	W11179302		Cleaner, Icemaker   (Replaces: 8171307)			Immediately	$ 31.34
49	WP279368		Cement, Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 116.46
49	212643		Sealer, Gum (22 Pcs. 3/16`` X 7``)			Immediately	$ 82.13

    View Diagram in Separate Window       Print Part List
