SELECT A DIAGRAM

01 - Cabinet, Liner And Door, Literature


02 - Evaporator, Ice Cutter Grid And Water


03 - Pump


04 - Control Panel


05 - Unit

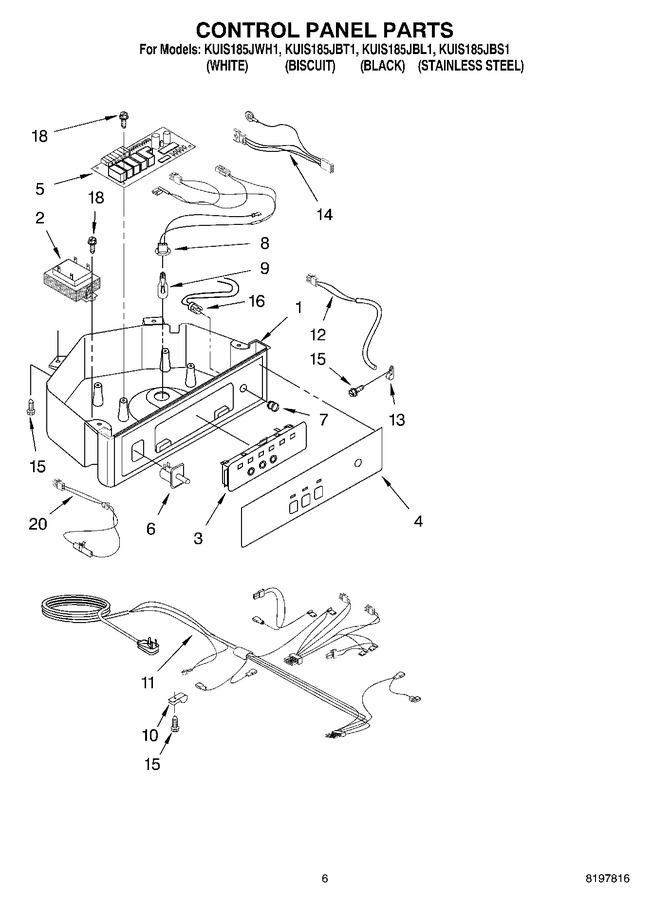

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2185738		Box, Control		Appelez-nous	-
2	2185657		Transformer				$ 163.75
3	2185592		Assembly, Switch (also Order No.4)				$ 94.83
4	2208317W		Overlay		Appelez-nous	-
5	6100499		P.c. Board		Appelez-nous	-
6	WP2149705		Switch, Plunger   (Replaces: 2149705)			Immediately	$ 40.40
7	2185694		Lens, Led		Appelez-nous	-
8	2185692		Wiring Harness Grid/ Light		Appelez-nous	-
9	745362		Bulb		Appelez-nous	-
10	W11456069		Clamp   (Replaces: 2185788)			Immediately	$ 22.40
11	2187286		Wiring Harness, Complete Unit (includes Power Cord)		Appelez-nous	-
12	WPW10503764		Thermostat, Bin   (Replaces: 2185679)				$ 125.23
13	2185825		Clamp		Appelez-nous	-
14	2185703		Wiring Harness, Main To Pump,		Appelez-nous	-
15	WP3400884		Screw 8-18 X 5/8   (Replaces: 3400884)				$ 8.10
16	2187256		Led Assembly		Appelez-nous	-
18	WP489443		Screw 8-16 X 3/8   (Replaces: 3400850)			Immediately	$ 8.33
20	2185680		Thermister, Ice Control				$ 39.81
