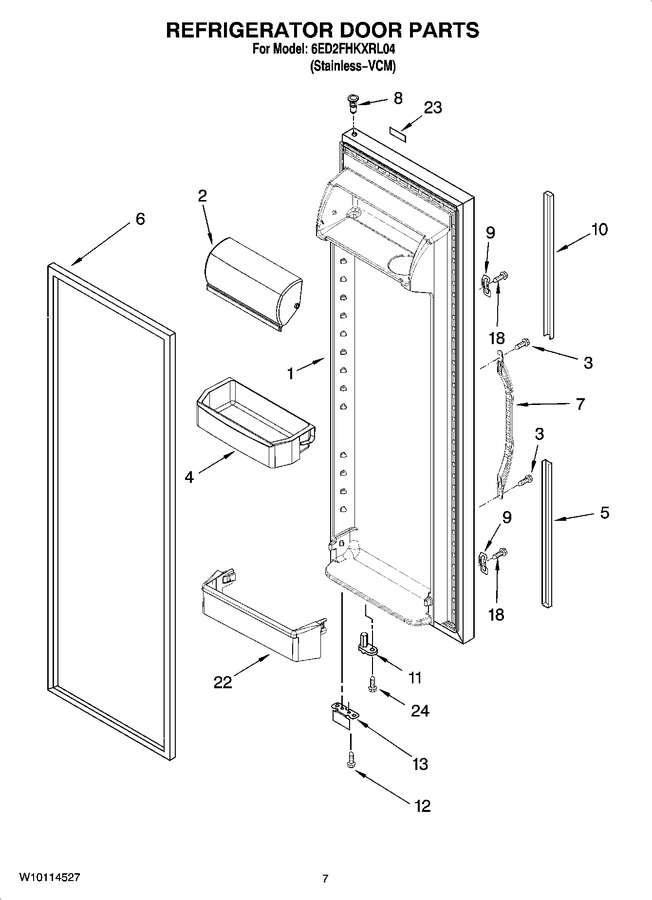

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2206716LG | Refrigerator Door (includes 6) (stainless-vcm) |
|
- | |||||
| 2 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 89.42 | ||||
| 3 | WP489491 | Screw (Replaces: 489491) |
|
$ 7.30 | |||||
| 4 | WP2187172 | Shelf Bin (3) (Replaces: 2187172K) |
|
Immediately | $ 45.09 | ||||
| 5 | WP2194969B | Extension, Bottom (black) (Replaces: 2194969B) |
|
$ 122.22 | |||||
| 6 | 2159081 | Door Gasket, Magnetic (Replaces: 2221311) |
|
$ 335.58 | |||||
| 7 | 2186649B | Handle, Center (black) |
|
$ 72.96 | |||||
| 8 | WP2182181 | Thimble, Top (Replaces: 2308091) |
|
$ 8.15 | |||||
| 9 | WP2195327 | Clip (Replaces: 2195327) |
|
$ 7.77 | |||||
| 10 | WP2194971B | Extension, Top (black) (Replaces: 2194971B) |
|
$ 111.96 | |||||
| 11 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 12 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 13 | WP2206629B | Bracket, Door Stop (Replaces: 2206629B) |
|
$ 42.79 | |||||
| 18 | WP3400852 | Screw (Replaces: 3400852) |
|
$ 10.33 | |||||
| 22 | WP2177962K | Trivet, Shelf (Replaces: 2177962) |
|
$ 85.14 | |||||
| 23 | WP2213265 | Nameplate (Replaces: 2255121) |
|
Immediately | $ 93.18 | ||||
| 24 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 |
