SELECT A DIAGRAM

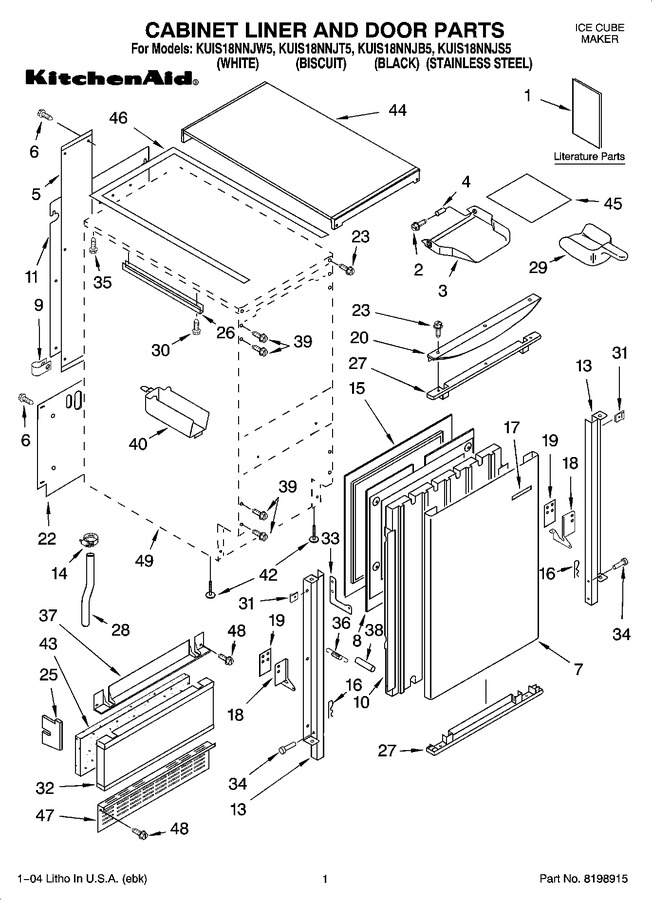

01 - Cabinet Liner And Door Parts


02 - Evaporator Ice Cutter Grid And Water Parts


03 - Pump Parts


04 - Control Panel Parts


05 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2217408		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT2217232		Literature Parts (service & Wiring Sheet)		Appelez-nous	-
2	3400886		Screw 8-18 X 1 1/4				$ 5.65
3	2208354		Bin, Door		Appelez-nous	-
4	2185678		Spacer				$ 11.03
5	2217394		Cover, Wiring		Appelez-nous	-
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
7	2208352B		Panel, Exterior (black)		Appelez-nous	-
7	2208352W		Panel, Exterior (white)		Appelez-nous	-
7	2208352T		Panel, Exterior (biscuit)		Appelez-nous	-
7	2208352S		Panel, Exterior (stainless Steel)		Appelez-nous	-
8	2217298		Panel, Interior		Appelez-nous	-
9	WP488366		Clamp, Tube   (Replaces: 489385)				$ 11.92
10	2208377		Insulation		Appelez-nous	-
11	W10218024		Ballast-back, Im   (Replaces: 2217227)		Appelez-nous	-
13	2217465		Bracket, Door (right Side)   (Replaces: 2208375)		Appelez-nous	-
13	2217466		Bracket, Door (left Side)   (Replaces: 2208376)		Appelez-nous	-
14	WP489503		Clamp   (Replaces: 489503)			Immediately	$ 11.29
15	W11624959		Gasket, Door   (Replaces: 2217295)				$ 244.84
16	2208535		Clip				$ 7.73
17	2212762		Nameplate (black)		Appelez-nous	-
17	2212760		Nameplate (white)		Appelez-nous	-
17	2212761		Nameplate (biscuit)		Appelez-nous	-
18	2208426		Hinge (right Side)		Appelez-nous	-
18	2208425		Hinge (left Side)		Appelez-nous	-
19	2208401		Shim, Hinge		Appelez-nous	-
20	2208440W		Handle, Door (white)		Appelez-nous	-
20	2208440B		Handle, Door (black)		Appelez-nous	-
20	2208440T		Handle, Door (biscuit)		Appelez-nous	-
22	WPW10136200		Assembly, Unit Cover   (Replaces: 2208399)				$ 113.70
23	8281186		Screw, Handle (black)		Appelez-nous	-
23	8281188		Screw, Handle (white)		Appelez-nous	-
23	8281187		Screw, Handle ((biscuit))		Appelez-nous	-
25	2217225		Pad, Foam		Appelez-nous	-
26	2185691		Channel, Wiring		Appelez-nous	-
27	2208350W		Endcap, Door (white)		Appelez-nous	-
27	W11413461		Endcap, Door (black)   (Replaces: 2208350B)		Appelez-nous	-
27	2208350T		Endcap, Door (biscuit)		Appelez-nous	-
28	2208453		Tube, Drain		Appelez-nous	-
29	W11420408		Scoop   (Replaces: 2208386)				$ 28.61
30	WP3400884		Screw 8-18 X 5/8   (Replaces: 3400884)				$ 8.10
31	2208421		Clip		Appelez-nous	-
32	2208382B		Panel, Lower (black)		Appelez-nous	-
32	2208382S		Panel, Lower (stainless Steel)		Appelez-nous	-
32	2208382B		Panel, Lower (biscuit)   (Replaces: 2208382T)		Appelez-nous	-
32	2208382W		Panel, Lower (white)		Appelez-nous	-
33	2208487		Bracket, Spring		Appelez-nous	-
34	2208417		Pin, Hinge		Appelez-nous	-
35	WP250830		Screw, Ground 8-32 X 1/2   (Replaces: 489048)				$ 8.78
36	W11095554		Spring, Hinge   (Replaces: 2208480)		Appelez-nous	-
37	2208383B		Endcap, Panel (black)		Appelez-nous	-
37	2208383T		Endcap, Panel (biscuit)		Appelez-nous	-
37	2208383W		Endcap, Panel (white)		Appelez-nous	-
38	2208529		Dampener, Spring		Appelez-nous	-
39	WP999367		Screw 10-32x11/16   (Replaces: 489423)				$ 8.56
40	2208449		Holder, Scoop		Appelez-nous	-
42	8193716		Leg, Leveler (4)   (Replaces: 3374849)			Immediately	$ 88.96
43	2208384		Insulation		Appelez-nous	-
44	2929701W		Top (white)		Appelez-nous	-
44	2929701B		Top (black)		Appelez-nous	-
44	2929701T		Top (biscuit)		Appelez-nous	-
45	2185690		Shield, Electrical		Appelez-nous	-
46	2217296		Gasket, Top Panel		Appelez-nous	-
47	WP2217206B		Grill, Front (black)   (Replaces: 2217206B)				$ 116.28
47	2217206T		Grill, Front (biscuit)		Appelez-nous	-
47	2217206W		Grill, Front (white)		Appelez-nous	-
48	WP489474		Screw 8-18 X 1   (Replaces: 489474)			Immediately	$ 8.55
49	978030		Valve, Access (3/4``)				$ 137.25
49	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
49	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
49	WP279368		Cement, Insulation (1 Oz.)   (Replaces: 797403)			Immediately	$ 116.46
49	212643		Sealer, Gum (22 Pcs. 3/16`` X 7``)			Immediately	$ 82.13
49	876370		Kit, Insulation (5 Pcs. 3`` X 24`` X 48)   (Replaces: 479976)				$ 243.14
49	978026		Valve, Access (5/16``)			Immediately	$ 134.49
49	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
49	978028		Valve, Access (1/2)		Appelez-nous	-
49	978029		Valve Access (5/8``)				$ 93.85
49	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
49	N/A		Parts Not Illustrated And Optional Parts (not Included)		Appelez-nous	-
49	W11179302		Cleaner, Icemaker   (Replaces: 8171307)			Immediately	$ 31.34

    View Diagram in Separate Window       Print Part List
