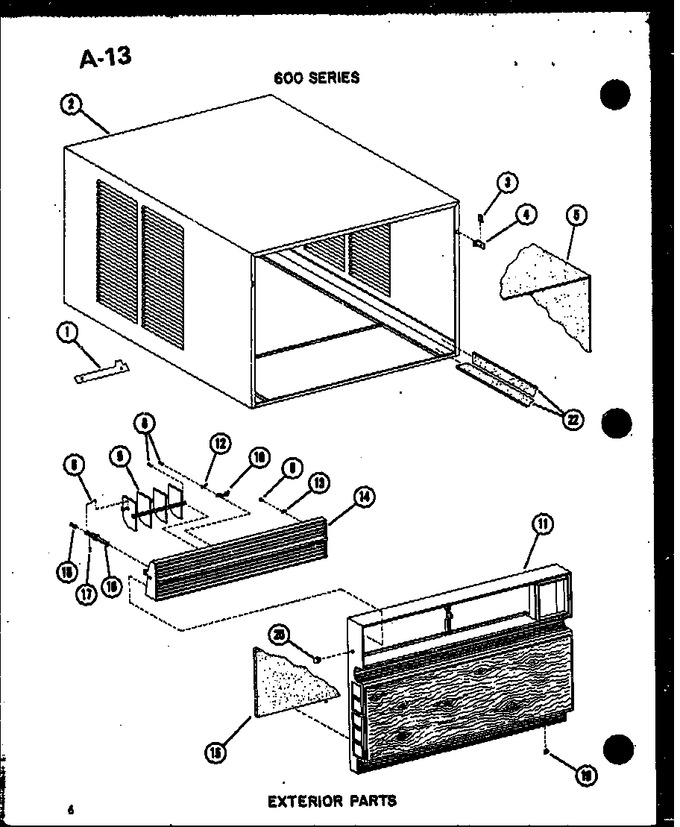

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | B4115501 | Nameplate |
|
- | |||||
| 2 | D5421007 | Outer Case Weldment |
|
- | |||||
| 3 | M0288413 | Speed Nut |
|
- | |||||
| 4 | A4660001 | Strike |
|
- | |||||
| 5 | A4654309 | Insulation, Outer Case Top And |
|
- | |||||
| 5 | A4654310 | Insulation |
|
- | |||||
| 5 | A4654307 | Insulation |
|
- | |||||
| 6 | A4623801 | Linkage Bar |
|
- | |||||
| 8 | M0229004 | Screw |
|
- | |||||
| 9 | C5832001 | Louver |
|
- | |||||
| 10 | B5167101 | Pin |
|
- | |||||
| 11 | D5424120 | Cabinet Front, Frame Only |
|
- | |||||
| 11 | D5429220 | Cabinet Front Assembly, Comple |
|
- | |||||
| 12 | A4664503 | Friction Clip |
|
- | |||||
| 13 | A4672801 | Retainer, Pin |
|
- | |||||
| 14 | D5434409 | Louver Horiz |
|
- | |||||
| 15 | D5427303 | Filter |
|
- | |||||
| 16 | B1185001 | Lever K |
|
- | |||||
| 17 | A3339201 | Pin K |
|
- | |||||
| 18 | A4624103 | Spring K |
|
- | |||||
| 19 | A4577804 | Hook |
|
- | |||||
| 20 | M0234916 | Thumb Screw K |
|
- | |||||
| 22 | A4591118 | Gasket |
|
- |
