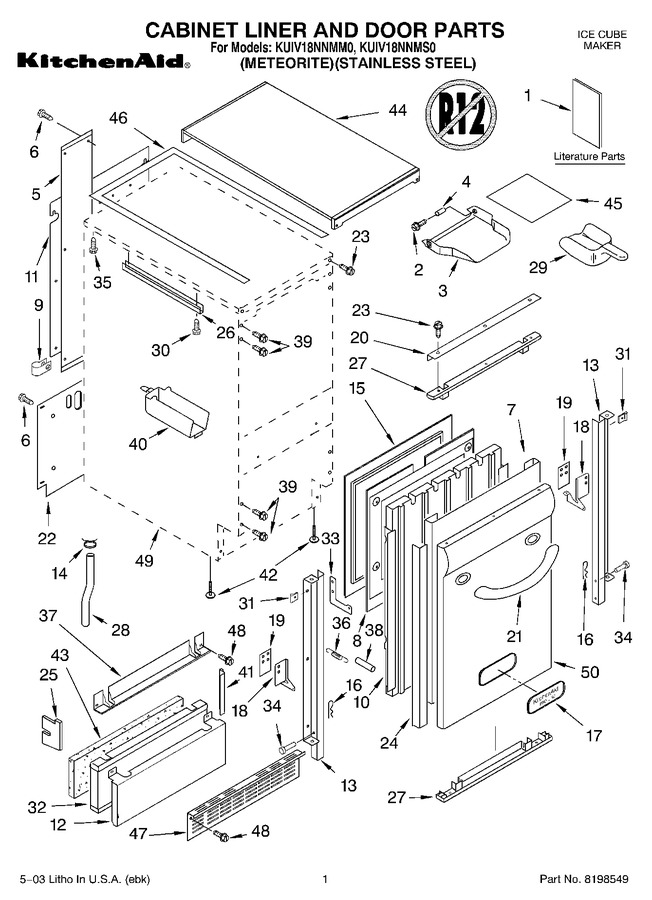

01 - Cabinet Liner And Door Parts


02 - Evaporator Ice Cutter Grid And Water Parts


03 - Pump Parts


04 - Control Panel Parts


05 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT2217251		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT2217232		Literature Parts (service & Wiring Sheet)		Appelez-nous	-
2	3400886		Screw 8-18 X 1 1/4				$ 5.65
3	2208354		Bin, Door		Appelez-nous	-
4	2185678		Spacer				$ 11.03
5	2217394		Cover, Wiring   (Replaces: 2185575)		Appelez-nous	-
6	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
7	2208352B		Panel, Exterior (black)		Appelez-nous	-
8	2217298		Panel, Interior		Appelez-nous	-
9	WP488366		Clamp, Tube   (Replaces: 489385)				$ 11.92
10	2208377		Insulation		Appelez-nous	-
11	W10218024		Ballast-back, Im   (Replaces: 2217227)		Appelez-nous	-
12	2208594S		Panel, Lower (stainless)				$ 243.24
12	2208594M		Panel, Lower (meteorite)		Appelez-nous	-
13	2217465		Bracket, Door (right Side)   (Replaces: 2208375)		Appelez-nous	-
13	2217466		Bracket, Door (left Side)   (Replaces: 2208376)		Appelez-nous	-
14	WP489503		Clamp   (Replaces: 2208483)			Immediately	$ 11.29
15	W11624959		Gasket, Door   (Replaces: 2217295)				$ 244.84
16	2208535		Clip				$ 7.73
17	8531727		Badge		Appelez-nous	-
18	2208426		Hinge (right Side)		Appelez-nous	-
18	2208425		Hinge (left Side)		Appelez-nous	-
19	2208401		Shim, Hinge		Appelez-nous	-
20	WP2208452B		Handle, Icemaker (black)   (Replaces: 2208452B)				$ 115.37
21	2252312		Handle, Bar		Appelez-nous	-
22	WPW10136200		Assembly, Unit Cover   (Replaces: 2208399)				$ 113.70
23	8281186		Screw, Handle (black)		Appelez-nous	-
24	2208595B		Grommet, Edge Guard(2)		Appelez-nous	-
25	2217225		Pad, Foam		Appelez-nous	-
26	2185691		Channel, Wiring		Appelez-nous	-
27	W11413461		Endcap, Door (black)   (Replaces: 2208350B)		Appelez-nous	-
28	2208453		Tube, Drain		Appelez-nous	-
29	W11420408		Scoop   (Replaces: 2208386)				$ 28.61
30	WP3400884		Screw 8-18 X 5/8   (Replaces: 3400884)				$ 8.10
31	2208421		Clip		Appelez-nous	-
32	2208382B		Panel, Wrap Lower (black)		Appelez-nous	-
33	2208487		Bracket, Spring		Appelez-nous	-
34	2208417		Pin, Hinge		Appelez-nous	-
35	WP250830		Screw, Ground 8-32 X 1/2   (Replaces: 489048)				$ 8.78
36	WP2208570		Spring, Hinge   (Replaces: 2208570)				$ 23.79
37	2208383B		Endcap, Panel (black)		Appelez-nous	-
38	2208530		Dampener, Spring		Appelez-nous	-
39	WP999367		Screw 10-32x11/16   (Replaces: 489423)				$ 8.56
40	2208449		Holder, Scoop		Appelez-nous	-
41	2208596B		Grommet, Edge Guard(2)		Appelez-nous	-
42	8193716		Leg, Leveler   (Replaces: 3376439)			Immediately	$ 88.96
43	2208384		Insulation		Appelez-nous	-
44	2929701B		Top (black)		Appelez-nous	-
45	2185690		Shield, Electrical		Appelez-nous	-
46	2217296		Gasket, Top Panel		Appelez-nous	-
47	WP2217206B		Grill, Front (black)   (Replaces: 2217206B)				$ 116.28
48	WP489474		Screw 8-18 X 1   (Replaces: 489474)			Immediately	$ 8.55
50	978030		Panel, Wrap Parts Not Illustrated And Optional Parts (not Included) (valve, Access (3/4``))				$ 137.25
50	978026		Panel, Wrap Parts Not Illustrated And Optional Parts (not Included) (valve, Access (5/16``))			Immediately	$ 134.49
50	SF5538		Panel, Wrap Parts Not Illustrated And Optional Parts (not Included) (valve, Access (3/8``))   (Replaces: 978027)				$ 21.64
50	978028		Panel, Wrap Parts Not Illustrated And Optional Parts (not Included) (valve, Access (1/2``))		Appelez-nous	-
50	978029		Panel, Wrap Parts Not Illustrated And Optional Parts (not Included) (valve, Access (5/8``))				$ 93.85
50	WP503695		Panel, Wrap Parts Not Illustrated And Optional Parts (not Included) (sealer, Cork (1/4 Pound))   (Replaces: 503695)				$ 123.84
50	WP978025		Panel, Wrap Parts Not Illustrated And Optional Parts (not Included) (valve, Access (1/4``))   (Replaces: 978025)			Immediately	$ 110.51
50	WP505587		Panel, Wrap Parts Not Illustrated And Optional Parts (not Included) (sealer, Mastic (1 Qt.))   (Replaces: 505587)			Immediately	$ 182.65
50	2252313M		Panel, Wrap (meteorite)		Appelez-nous	-
50	2252313S		Panel, Wrap (stainless)		Appelez-nous	-
50	W11179302		Panel, Wrap Parts Not Illustrated And Optional Parts (not Included) (cleaner, Icemaker)   (Replaces: 8171307)			Immediately	$ 31.34
50	WP279368		Panel, Wrap Parts Not Illustrated And Optional Parts (not Included) (cement, Insulation (1 Oz.))   (Replaces: 797403)			Immediately	$ 116.46
50	212643		Panel, Wrap Parts Not Illustrated And Optional Parts (not Included) (sealer, Gum (22 Pcs. 3/16`` X 7			Immediately	$ 82.13
50	876370		Panel, Wrap Parts Not Illustrated And Optional Parts (not Included) (kit, Insulation (5 Pcs. 3`` X 2   (Replaces: 479976)				$ 243.14
50	2006783		Panel, Wrap Parts Not Illustrated And Optional Parts (not Included) (cleaner, Stainless Steel)		Appelez-nous	-
