01 - Cabinet Liner And Door Parts
02 - Evaporator, Ice Cutter Grid And Water Parts
03 - Pump Parts
04 - Control Panel Parts
05 - Unit Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:

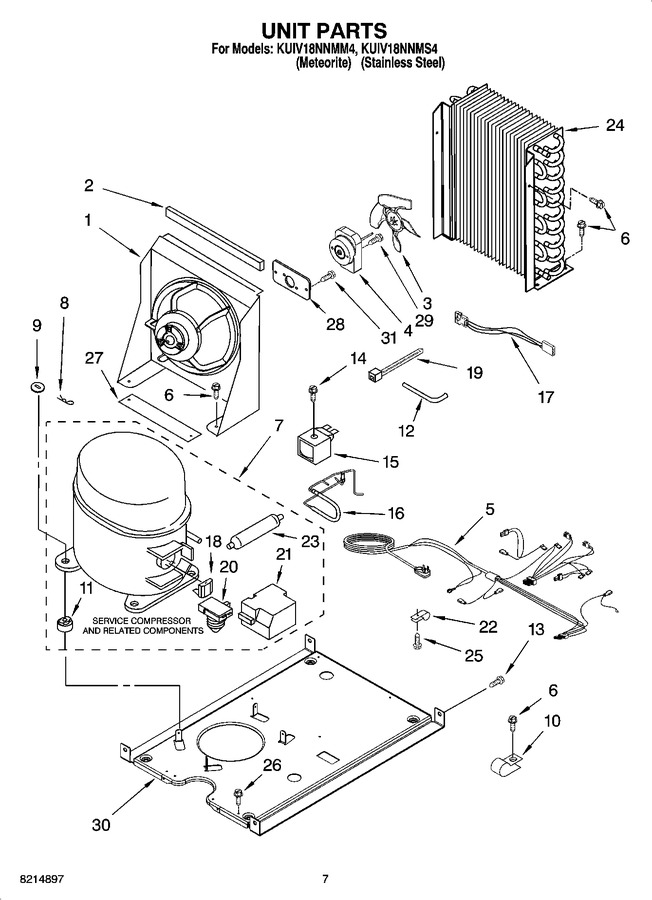

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2185532 | Bracket, Fan Mtg. (Replaces: 2185532) |
|
$ 102.18 | |||||
| 2 | 2185675 | Pad, Foam |
|
- | |||||
| 3 | WP2188935 | Blade, Fan (Replaces: 2188935) |
|
Immediately | $ 97.29 | ||||
| 4 | W10124096 | Motor, Fan (Replaces: 2188891) |
|
Immediately | $ 112.20 | ||||
| 5 | 2313636 | Wiring Harness, Complete Unit (includes Power Cord) |
|
- | |||||
| 6 | WP489069 | Screw 8-18 X 1/2 (Replaces: 304392) |
|
Immediately | $ 8.40 | ||||
| 7 | W11735041 | Compressor (includes Illus. 11,18, 20,21 & 23) (Replaces: 2208370) |
|
$ 675.23 | |||||
| 8 | A201435 | Clip, Mounting |
|
- | |||||
| 9 | A201441 | Shim (4) |
|
$ 9.25 | |||||
| 10 | 2185960 | Clamp (power Cord) |
|
- | |||||
| 11 | 2185965 | Grommet (4) (production) (Replaces: 2217318) |
|
- | |||||
| 11 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 7.30 | |||||
| 12 | W10528572 | Tube, Process (Replaces: 2208415) |
|
$ 38.79 | |||||
| 13 | WP999367 | Screw (Replaces: 489423) |
|
$ 8.56 | |||||
| 14 | 489472 | Screw |
|
- | |||||
| 15 | 759112 | Coil, Solenoid |
|
$ 72.80 | |||||
| 16 | WP759113 | Valve, Body (Replaces: 759113) |
|
$ 326.37 | |||||
| 17 | WP2187629 | Wiring Harness, Condenser Fan (Replaces: 2187629) |
|
$ 132.58 | |||||
| 18 | WP2217223 | Overload (production) (Replaces: 2217223) |
|
$ 142.71 | |||||
| 18 | WP4387938 | Overload (service (includes Relay)) (Replaces: 4387938) |
|
$ 198.58 | |||||
| 19 | WPW10339879 | Strap (Replaces: 2155774) |
|
$ 8.30 | |||||
| 20 | WP2217224 | Relay, Start (production) (Replaces: 2217224) |
|
Immediately | $ 104.82 | ||||
| 20 | WP4387938 | Relay, Start (service (includes Overload)) (Replaces: 4387938) |
|
$ 198.58 | |||||
| 21 | WP2162358 | Cover Terminal (production) (Replaces: 2208371) |
|
$ 95.29 | |||||
| 21 | WP2162358 | Cover Terminal (service) (Replaces: 4387731) |
|
$ 95.29 | |||||
| 22 | W11456069 | Clamp (Replaces: 2185788) |
|
Immediately | $ 22.40 | ||||
| 23 | W10843121 | Drier (service) (Replaces: 4387019) |
|
Immediately | $ 57.13 | ||||
| 23 | W10843121 | Drier (production) (Replaces: 2319826) |
|
Immediately | $ 57.13 | ||||
| 24 | WP2313624 | Condenser (Replaces: 2313624) |
|
$ 366.37 | |||||
| 25 | WP3400884 | Screw (Replaces: 3400884) |
|
$ 8.10 | |||||
| 26 | WP489128 | Screw (Replaces: 488500) |
|
$ 11.40 | |||||
| 27 | 2217397 | Pad, Foam (2) |
|
- | |||||
| 28 | 2301979 | Plate-mtg. |
|
$ 94.77 | |||||
| 29 | 8281197 | Screw |
|
- | |||||
| 30 | 2217446 | Base, Unit (Replaces: 2217423) |
|
- | |||||
| 31 | WP8281196 | Screw (Replaces: 8281196) |
|
Immediately | $ 7.55 | ||||
| W11179302 | Cleaner, Icemaker (Replaces: 8171307) |
|
Immediately | $ 31.34 | |||||
| 876370 | Kit, Insulation (5 Pcs. 3`` X 24`` X 48) (Replaces: 479976) |
|
$ 243.14 | ||||||
| 212643 | Sealer, Gum (22 Pcs. 3/16`` X 7``) |
|
Immediately | $ 82.13 | |||||
| 978030 | Valve, Access (3/4``) |
|
$ 137.25 | ||||||
| WP279368 | Cement, Insulation (1 Oz.) (Replaces: 797403) |
|
Immediately | $ 116.46 | |||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | ||||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | |||||
| WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | |||||
| 978029 | Valve Access (5/8``) |
|
$ 93.85 | ||||||
| 978028 | Valve, Access (1/2) |
|
- | ||||||
| SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | ||||||
| 978026 | Valve, Access (5/16``) |
|
Immediately | $ 134.49 | |||||
| 2006783 | Cleaner, Stainless Steel |
|
- |
