SELECT A DIAGRAM

01 - Cabinet Parts


02 - Shelf Parts

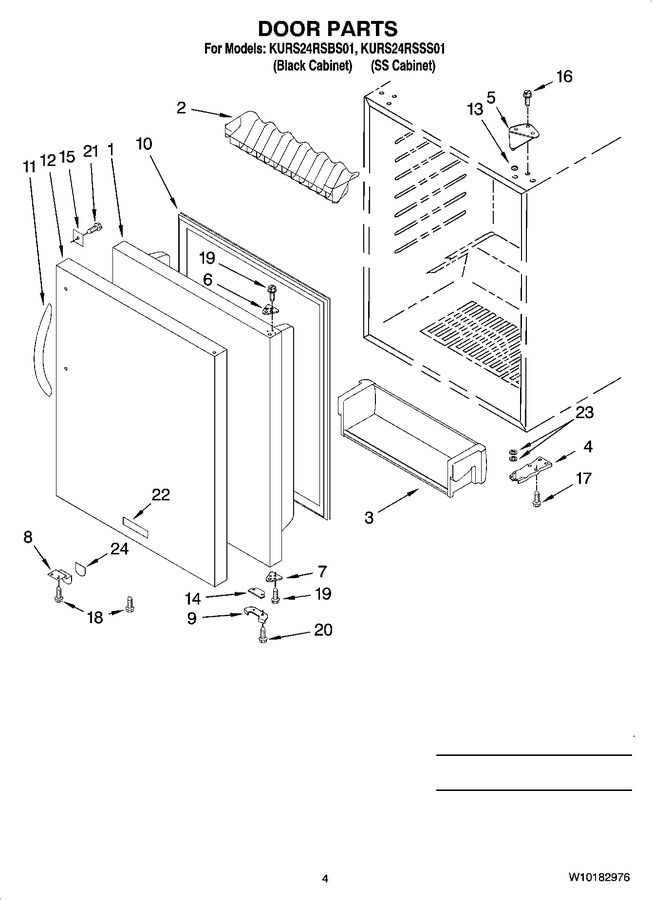

03 - Door Parts


04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4344750		Door Assembly (includes Gasket)		Appelez-nous	-
2	4344751		Beverage Holder				$ 84.46
3	4344752		Door Bin				$ 81.31
4	W10239363		Hinge, Bottom   (Replaces: 4344753)				$ 80.61
5	4344754		Hinge, Top				$ 89.01
6	4344755		Spacer, Top Hinge				$ 20.03
7	4344756		Spacer, Bottom Hinge				$ 20.70
8	4344757		Actuator, Switch				$ 154.08
9	4344758		Door Stop		Appelez-nous	-
10	4344759		Door Gasket		Appelez-nous	-
11	WP9872207S		Handle, Door   (Replaces: 4344810)				$ 193.95
12	4344811		Door Skin, Stainless Steel		Appelez-nous	-
13	4344760		Washer				$ 15.91
14	4344788		Spacer, Door				$ 171.37
15	4344809		Plate		Appelez-nous	-
16	4344796		Screw				$ 16.82
17	4344906		Screw, Lower Hinge (quantity 1)		Appelez-nous	-
17	4344797		Screw, Lower Hinge (quantity 3)		Appelez-nous	-
18	4344827		Screw		Appelez-nous	-
19	W10243123		Screw   (Replaces: W10163072)				$ 16.82
20	4344801		Screw				$ 16.82
21	4344808		Screw		Appelez-nous	-
22	4344813		Nameplate		Appelez-nous	-
23	W11241702		Washer, Bottom   (Replaces: W10162992)				$ 14.27
24	W10163191		Gasket, Push Plate				$ 14.85
	8171420		Cleaner, Stainless Steel (12 Oz.)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
