SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Liner


03 - Shelf


04 - Refrigerator Door


05 - Unit


06 - Freezer Door

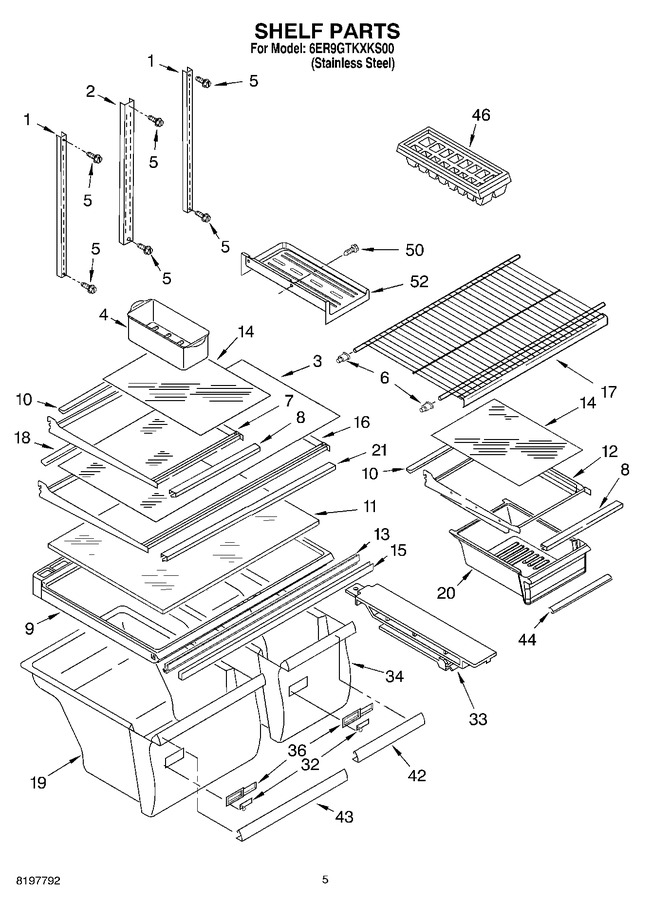

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2210522		Shelf, Ladder (2)				$ 44.10
2	2202821		Shelf, Ladder Center		Appelez-nous	-
3	2177824		Glass, Full Shelf				$ 139.59
4	W10136387A		Egg Bin   (Replaces: 2216624)				$ 17.59
5	WP489478		Screw   (Replaces: 489478)				$ 7.36
6	WPW10130299		Cup, Shelf   (Replaces: 2163762)			Immediately	$ 13.23
7	2201101		Shelf, Cantilever				$ 76.57
8	2188525		Trim, Shelf Front		Appelez-nous	-
9	WP2314548		Crisper Cover   (Replaces: 2195342)				$ 233.85
10	WP2188689		Trim, Shelf Rear   (Replaces: 2188520)				$ 109.40
11	WP2169921		Glass, Crisper Cover   (Replaces: 2169921)				$ 233.04
12	2201105		Shelf, Cantilever Meat Pan				$ 78.45
13	2172683		Gasket, Crisper Cover		Appelez-nous	-
14	2169917		Glass, Half Shelf				$ 84.17
15	WP2172748		Crisper Support   (Replaces: 2172541)				$ 91.87
16	2201137		Shelf, Full Cantilever (includes 3,18,21)		Appelez-nous	-
17	WP2176275		Shelf, Freezer   (Replaces: 2176275)				$ 111.06
18	WP2188689		Trim, Shelf Rear   (Replaces: 2188522)				$ 109.40
19	W10854037		Pan, Crisper Wide   (Replaces: 2218139)			Immediately	$ 161.27
20	WP2218127K		Pan, Meat   (Replaces: 2218127)				$ 132.12
21	2188527		Trim, Shelf Front		Appelez-nous	-
32	WP2176222		Slide, Crisper   (Replaces: 2176222)				$ 27.35
33	WP2163835		Crisper Track, Center   (Replaces: 2163835)			Immediately	$ 32.83
34	W10856580		Pan, Crisper   (Replaces: 2218138)			Immediately	$ 159.33
36	W11819839		Body, Humidity Control   (Replaces: 2212446)				$ 14.23
42	2195340		Trim, Crisper Pan				$ 7.07
43	WP2195341		Trim, Crisper Pan   (Replaces: 2195341)				$ 78.00
44	2176356		Trim, Meat Pan		Appelez-nous	-
46	WP841180A		Ice Cube Tray   (Replaces: 841180)			Immediately	$ 43.06
50	WP489478		Screw   (Replaces: 489478)				$ 7.36
52	2212770		Shelf, Ice Tray				$ 65.17

    View Diagram in Separate Window       Print Part List
