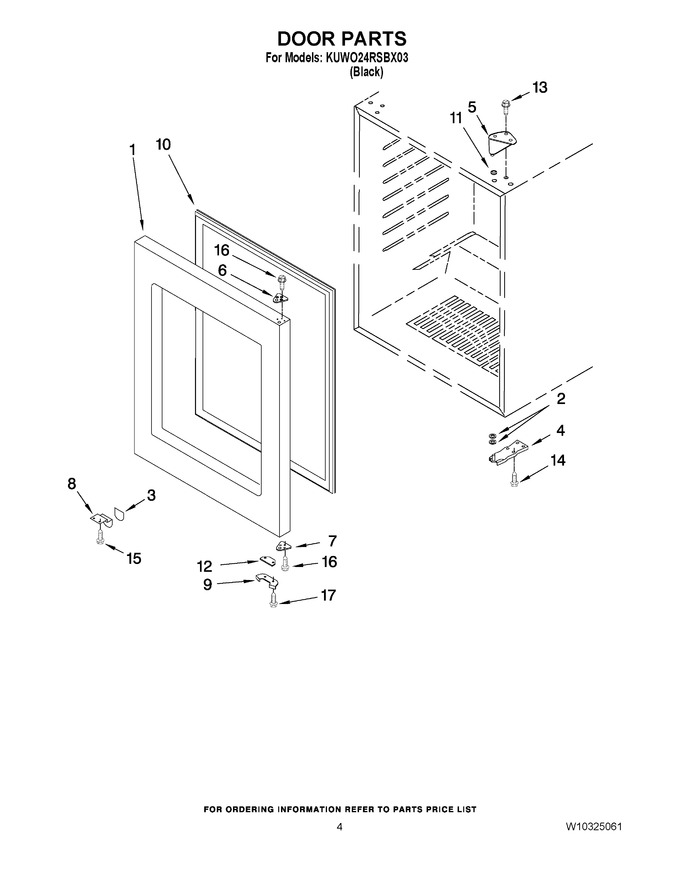

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4344890 | Door Assembly (includes Gasket) |
|
- | |||||
| 2 | W11241702 | Washer, Bottom (Replaces: W10162992) |
|
$ 14.27 | |||||
| 3 | W10163191 | Gasket, Push Plate |
|
$ 14.85 | |||||
| 4 | W10239363 | Hinge, Bottom |
|
$ 80.61 | |||||
| 5 | 4344754 | Hinge, Top |
|
$ 89.01 | |||||
| 6 | 4344804 | Spacer, Top Hinge |
|
$ 20.03 | |||||
| 7 | 4344798 | Spacer, Bottom Hinge |
|
$ 20.03 | |||||
| 8 | 4344757 | Actuator, Switch |
|
$ 154.08 | |||||
| 9 | 4344802 | Door Stop |
|
$ 21.98 | |||||
| 10 | WPW10238068 | Door Gasket (Replaces: W10238068) |
|
$ 347.01 | |||||
| 11 | 4344760 | Washer |
|
$ 15.91 | |||||
| 12 | 4344803 | Spacer, Door |
|
$ 175.49 | |||||
| 13 | 4344796 | Screw |
|
$ 16.82 | |||||
| 14 | W10243104 | Screw, Lower Hinge (quantity 3) |
|
- | |||||
| 14 | 4344906 | Screw, Lower Hinge (quantity 1) |
|
- | |||||
| 15 | W10837731 | Screw (Replaces: W10204865) |
|
$ 8.30 | |||||
| 16 | 4344800 | Screw |
|
- | |||||
| 17 | 4344801 | Screw |
|
$ 16.82 | |||||
| NI | 4344818 | Installation Kit, Door Panel |
|
$ 129.52 |
