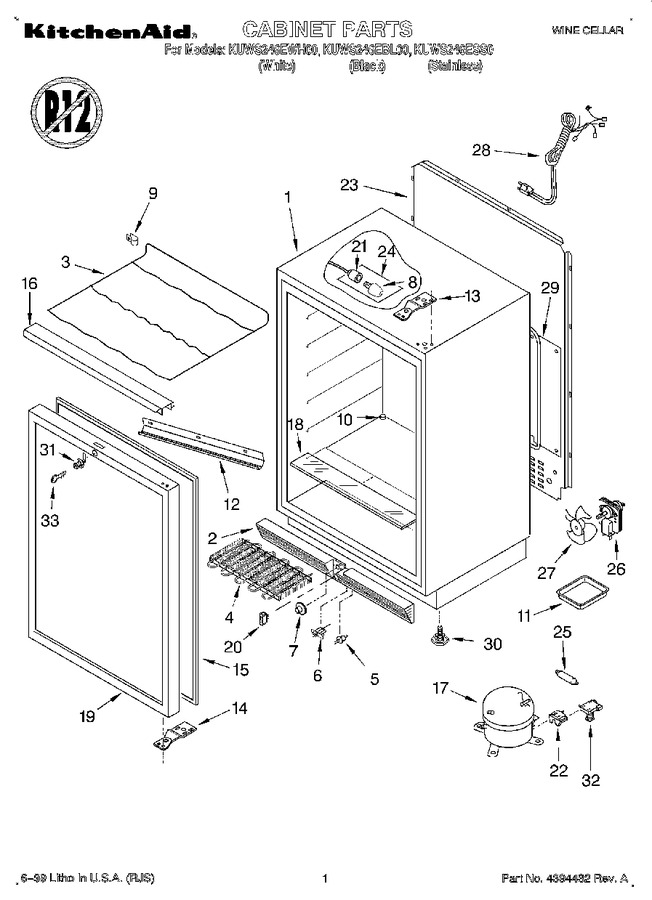

01 - Section


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
2	4344604		Grille (black)		Appelez-nous	-
2	4344603		Grille (white)		Appelez-nous	-
3	4344605		Wine Shelf		Appelez-nous	-
4	4344606		Condenser		Appelez-nous	-
5	4344607		Door Switch		Appelez-nous	-
6	WP4344659		Thermostat   (Replaces: 4344608)				$ 384.20
7	4344609		Knob, Thermostat		Appelez-nous	-
8	WP22002263		Light Bulb   (Replaces: 4344602)			Immediately	$ 14.85
9	4344610		Shelf Clip		Appelez-nous	-
10	4344611		Drain Cup		Appelez-nous	-
11	4344612		Drain Pan		Appelez-nous	-
12	4344613		Drain Through		Appelez-nous	-
13	4344614		Hinge, Top (white)		Appelez-nous	-
13	4344651		Hinge, Top (stainless)		Appelez-nous	-
13	4344615		Hinge, Top (black)		Appelez-nous	-
14	4344617		Hinge, Bottom (black)		Appelez-nous	-
14	4344616		Hinge, Bottom (white)		Appelez-nous	-
14	4344652		Hinge, Bottom (stainless)		Appelez-nous	-
15	4344618		Door Gasket		Appelez-nous	-
16	4344650		Door Handle (stainless)		Appelez-nous	-
16	4344619		Door Handle (white)		Appelez-nous	-
16	4344620		Door Handle (black)		Appelez-nous	-
17	4344621		Compressor (includes Items 22, 25 & 32)		Appelez-nous	-
18	4344622		Glass Shelf, Half		Appelez-nous	-
19	4344649		Door Assembly (includes Items 15, 16 & 31) (stainless)		Appelez-nous	-
19	4344624		Door Assembly (includes Items 15, 16 & 31) (black)		Appelez-nous	-
19	4344623		Door Assembly (includes Items 15, 16 & 31) (white)		Appelez-nous	-
20	4344625		Light Switch		Appelez-nous	-
21	4344626		Light Socket		Appelez-nous	-
22	4344627		Overload		Appelez-nous	-
23	4344628		Back Panel		Appelez-nous	-
24	4344629		Light Cover		Appelez-nous	-
25	4344630		Drier		Appelez-nous	-
26	4344631		Fan Motor				$ 124.77
27	4344632		Fan Blade		Appelez-nous	-
28	4344633		Power Cord		Appelez-nous	-
29	4344634		Evaporator And Heat Exchanger		Appelez-nous	-
30	4344635		Leveler Feet		Appelez-nous	-
31	4344636		Lock (includes Key)		Appelez-nous	-
32	4344638		Relay				$ 58.66
33	4344637		Key		Appelez-nous	-
	LIT4344601		Installation Guide		Appelez-nous	-
	LIT4344600		Use & Care Guide		Appelez-nous	-
