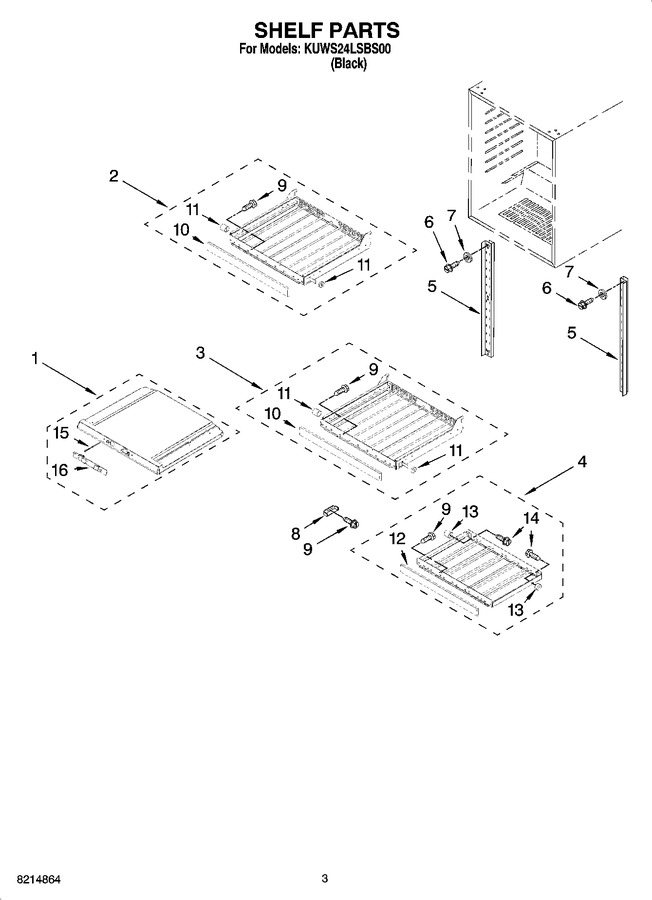

02 - Shelf Parts


03 - Door Parts


04 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10297314		Temperature Separator   (Replaces: 4344880)				$ 381.71
2	4344846		Wine Rack, (4)		Appelez-nous	-
3	4344847		Wine Rack, (1)		Appelez-nous	-
4	4344849		Wine Rack, Lower		Appelez-nous	-
5	4344843		Ladder, Shelf (right Side)		Appelez-nous	-
5	4344842		Ladder, Shelf (left Side)		Appelez-nous	-
6	4344794		Screw		Appelez-nous	-
7	4344795		Washer		Appelez-nous	-
8	4344850		Stop, Lower Rack		Appelez-nous	-
9	4344851		Screw		Appelez-nous	-
10	4344882		Trim, Top And Middle Racks		Appelez-nous	-
11	4344867		Support (left)		Appelez-nous	-
11	4344866		Support (right)		Appelez-nous	-
12	4344884		Trim, Lower Rack		Appelez-nous	-
13	4344885		Support, Bumper (right)		Appelez-nous	-
13	4344886		Support, Bumper (left)		Appelez-nous	-
14	4344914		Screw (right)		Appelez-nous	-
14	4344915		Screw (left)		Appelez-nous	-
15	4344895		Transformer Cable		Appelez-nous	-
16	4344894		Pcb Display Board				$ 307.77
