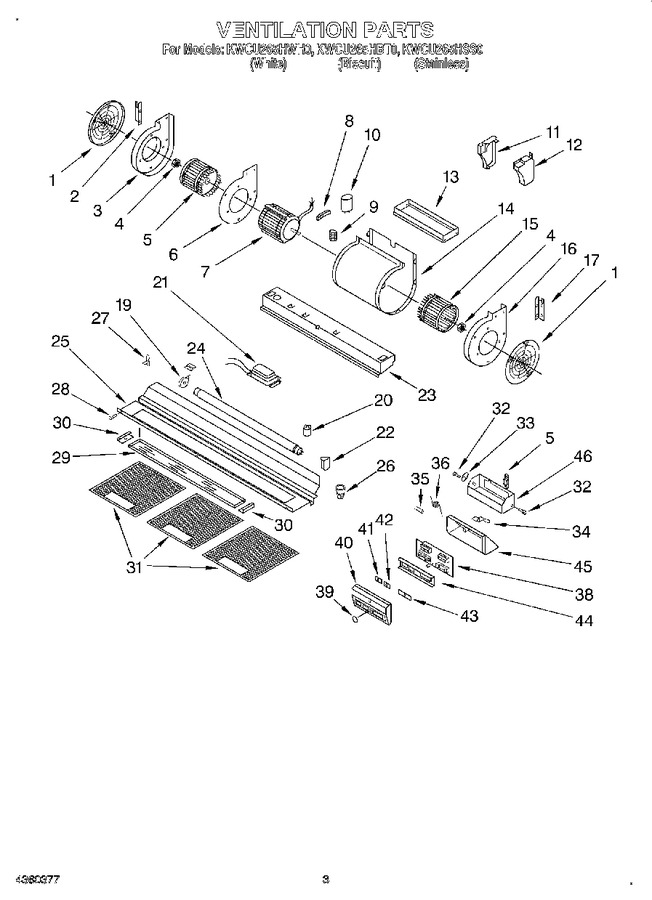

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4360257		Filter, Charcoal		Appelez-nous	-
2	4360389		Bracket, Diffuser		Appelez-nous	-
3	4360188		Cover, Blower		Appelez-nous	-
4	4360180		Nut		Appelez-nous	-
5	4360187		Impeller		Appelez-nous	-
6	4360185		Motor Mount		Appelez-nous	-
7	4360212		Motor		Appelez-nous	-
8	4360059		Block, Capacitor		Appelez-nous	-
9	4360176		Terminal		Appelez-nous	-
10	4360175		Capacitor		Appelez-nous	-
11	4360060		Box, Electric		Appelez-nous	-
12	4360056		Cover, Box		Appelez-nous	-
13	4360255		Extension, Diffuser		Appelez-nous	-
14	4360184		Housing, Motor		Appelez-nous	-
15	4360181		Impeller		Appelez-nous	-
16	4360179		Cover, Blower		Appelez-nous	-
17	4360390		Bracket		Appelez-nous	-
19	4360261		Lampholder		Appelez-nous	-
20	4360260		Starter		Appelez-nous	-
21	4360045		Ballast		Appelez-nous	-
22	4360266		Lamp Holder		Appelez-nous	-
23	4360297		Support, Light		Appelez-nous	-
24	4360014		Lamp		Appelez-nous	-
25	4360298		Support, Light (white Model)		Appelez-nous	-
25	4360324		Support, Light (stainless Model)		Appelez-nous	-
25	4360392		Support, Light (biscuit Model)		Appelez-nous	-
26	4360211		Wire Nut		Appelez-nous	-
27	4360299		Clamp, Wire		Appelez-nous	-
28	4360048		Pin		Appelez-nous	-
29	4360264		Glass, Light		Appelez-nous	-
30	4360300		Side, Lighting		Appelez-nous	-
31	WPW10368696		Filter, Grease   (Replaces: 4360265)			Immediately	$ 146.29
32	4360238		Pin		Appelez-nous	-
33	4360241		Lever, Switches		Appelez-nous	-
34	4360242		Clamp, Cable		Appelez-nous	-
35	4360244		Spring, Pin		Appelez-nous	-
36	4360243		Spring		Appelez-nous	-
37	4360239		Clamp, Cable		Appelez-nous	-
38	4360246		Board, Control		Appelez-nous	-
39	4360028		Cover, Lamp				$ 6.34
40	4360251		Cover, Box		Appelez-nous	-
41	4360250		Actuator, Lighting		Appelez-nous	-
42	4360249		Actuator, Motor		Appelez-nous	-
43	4360248		Actuator, 1-2-3		Appelez-nous	-
44	4360247		Support, Actuators		Appelez-nous	-
45	4360245		Control Box		Appelez-nous	-
46	4360240		Housing, Control Box		Appelez-nous	-
	LIT4360296		Wiring Diagram		Appelez-nous	-
	4378621		Ductless Kit (stainless Model)				$ 243.61
	LIT4360367		Use & Care Guide		Appelez-nous	-
	8171290		Ductless Kit (biscuit Model)		Appelez-nous	-
	4378622		Ductless Kit (white Model)		Appelez-nous	-
	4378623		Filters (2-pak)		Appelez-nous	-
	4378619		Rear		Appelez-nous	-
	4378618		Side		Appelez-nous	-
	4378617		Rack Hanger Kits Utensil Bars		Appelez-nous	-
	4378616		Wire Racks		Appelez-nous	-
	4378615		Backsplash				$ 193.38
