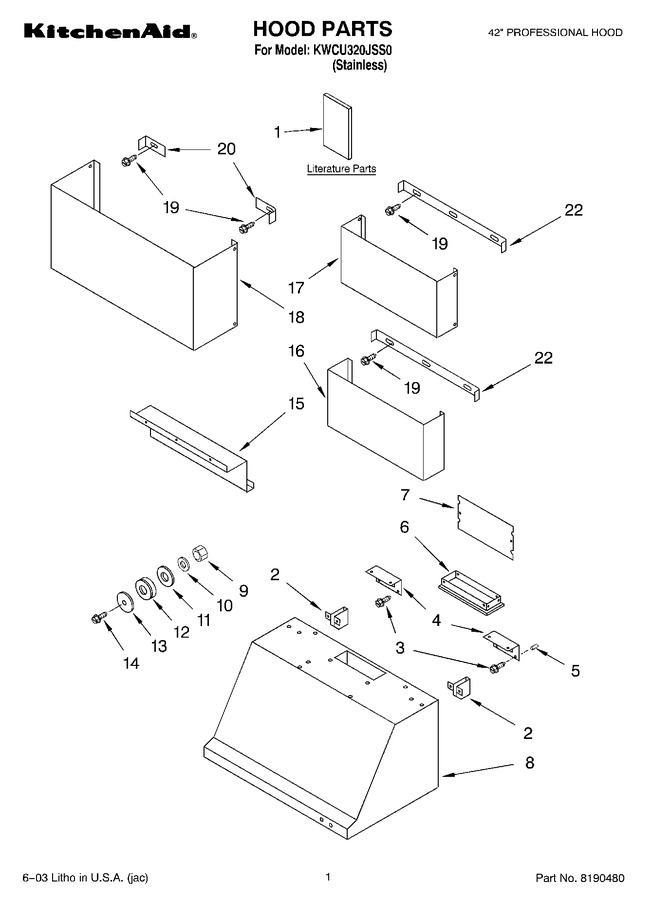

01 - Hood Parts


02 - Ventilation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8189631		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT8284829		Literature Parts (use & Care Guide/ Install Instructns)		Appelez-nous	-
2	8189612		Bracket, Hood		Appelez-nous	-
3	8189611		Screw		Appelez-nous	-
4	8189610		Bracket, Mounting		Appelez-nous	-
5	4360318		Grommet		Appelez-nous	-
6	4360001		Damper		Appelez-nous	-
7	4360190		Cover, Exhaust		Appelez-nous	-
8	8190478		Hood		Appelez-nous	-
9	8189600		Nut		Appelez-nous	-
10	98007193		Washer   (Replaces: 4360158)				$ 10.38
11	8189601		Plate (rubber)		Appelez-nous	-
12	WPW10252120		Transformer, 120v   (Replaces: 8189602)				$ 567.91
13	8189603		Plate (nylon)		Appelez-nous	-
14	4360310		Screw		Appelez-nous	-
15	8190477		Support, Back		Appelez-nous	-
16	8189605		Chimney, Lower		Appelez-nous	-
17	8189606		Chimney, Upper		Appelez-nous	-
18	8189993		Chimney, 42``		Appelez-nous	-
19	4360320		Screw		Appelez-nous	-
20	8189608		Bracket, Chimney		Appelez-nous	-
22	8189609		Bracket, Upper		Appelez-nous	-
