01 - Hood Parts

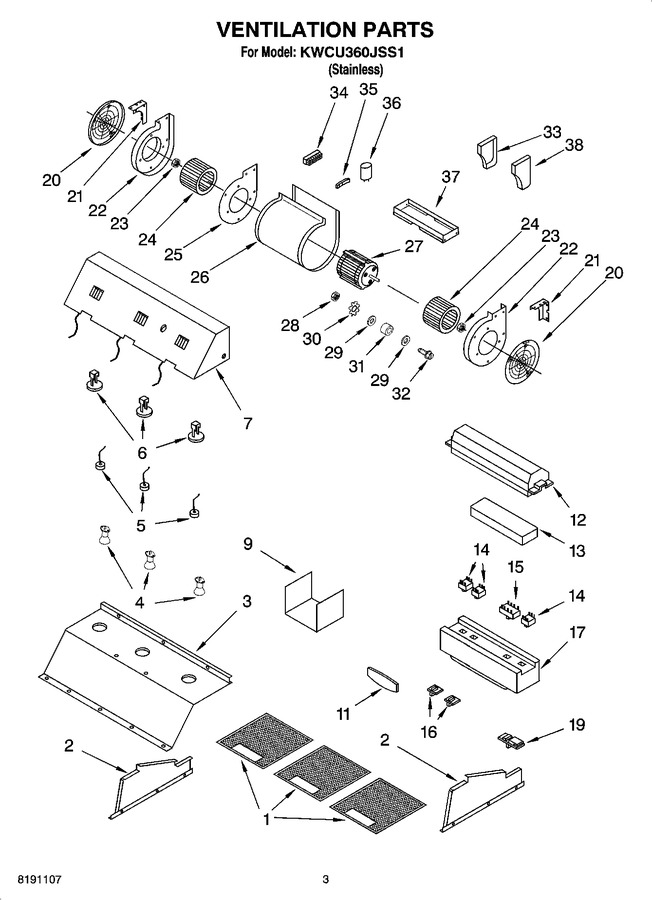

02 - Ventilation Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10252087 | Filter, Grease (Replaces: 8189594) |
|
Immediately | $ 294.79 | ||||
| 2 | 8189595 | Support. Side (left) |
|
- | |||||
| 2 | 8189617 | Support. Side (right) |
|
- | |||||
| 3 | 8189596 | Support, Light |
|
- | |||||
| 4 | WPW10252088 | Bulb, Halogen (Replaces: 8189593) |
|
Immediately | $ 114.94 | ||||
| 5 | 8189597 | Holder, Bulb |
|
$ 33.45 | |||||
| 6 | 8189598 | Support, Bulb |
|
- | |||||
| 7 | 8189599 | Cover, Light |
|
- | |||||
| 8 | 4360062 | Relief, Strain |
|
- | |||||
| 9 | 8189614 | Cover, Inlet |
|
- | |||||
| 10 | 8189615 | Spacer |
|
- | |||||
| 11 | 8189616 | Nameplate |
|
- | |||||
| 12 | 8189624 | Cover, Switch |
|
- | |||||
| 13 | 8189623 | Support, Switch |
|
- | |||||
| 14 | W11731942 | Switch, On/off (Replaces: 8189621) |
|
$ 89.95 | |||||
| 15 | WPW10252122 | Switch, Motor (Replaces: 8189622) |
|
$ 331.91 | |||||
| 16 | 8189618 | Button, On/off |
|
- | |||||
| 17 | 8189619 | Box, Control |
|
- | |||||
| 18 | 4360028 | Lens, Indicator |
|
$ 6.34 | |||||
| 19 | 8189620 | Button, Mtr Speed |
|
- | |||||
| 20 | 4360257 | Support, Filter |
|
- | |||||
| 21 | 8189625 | Bracket, Diffuser (right) |
|
- | |||||
| 21 | 8189628 | Bracket, Diffuser (left) |
|
- | |||||
| 22 | 4360179 | Cover, Blower (right) |
|
- | |||||
| 22 | 4360188 | Cover, Blower (left) |
|
- | |||||
| 23 | 4360180 | Nut, Locking |
|
- | |||||
| 24 | 4360181 | Impeller, Blower (right) |
|
- | |||||
| 24 | 4360187 | Impeller, Blower (left) |
|
- | |||||
| 25 | 4360185 | Plate, Mtr Mount |
|
- | |||||
| 26 | 4360184 | Housing, Fan |
|
- | |||||
| 27 | 8189627 | Motor, Blower |
|
- | |||||
| 28 | 8189626 | Nut, Motor |
|
- | |||||
| 29 | 4360345 | Washer |
|
- | |||||
| 30 | 4360344 | Washer, Star |
|
- | |||||
| 31 | 4360342 | Spacer, Motor |
|
- | |||||
| 32 | 4360347 | Screw, Mtr Mount |
|
- | |||||
| 33 | 4360056 | Box, Capacitor |
|
- | |||||
| 34 | 8189629 | Block, Terminal |
|
$ 33.56 | |||||
| 35 | 4360059 | Bracket, Capacitor |
|
- | |||||
| 36 | 4360175 | Capacitor |
|
- | |||||
| 37 | 4360255 | Extension, Blower |
|
- | |||||
| 38 | 4378619 | Rear |
|
- | |||||
| 38 | W10352735 | Backsplash (Replaces: 8284756) |
|
$ 727.94 | |||||
| 38 | 4378616 | Wire Racks |
|
- | |||||
| 38 | 4378617 | Rack Hanger Kits |
|
- | |||||
| 38 | 4378618 | Side |
|
- | |||||
| 38 | 4360060 | Cover, Box |
|
- |
