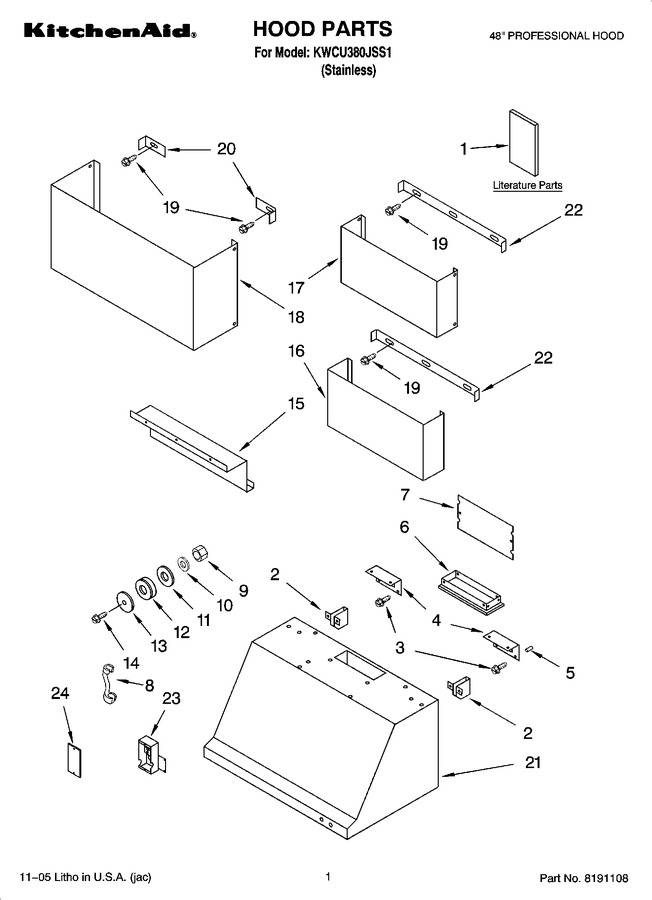

01 - Hood Parts


02 - Ventilation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8189863		Wiring Diagram		Appelez-nous	-
1	9763385		Use & Care Guide		Appelez-nous	-
2	8189612		Bracket, Hood		Appelez-nous	-
3	8189611		Screw		Appelez-nous	-
4	8189610		Bracket, Mounting		Appelez-nous	-
5	4360318		Grommet		Appelez-nous	-
6	4360001		Damper		Appelez-nous	-
7	4360190		Cover, Exhaust		Appelez-nous	-
8	4360062		Relief, Strain		Appelez-nous	-
9	8189600		Nut		Appelez-nous	-
10	98007193		Washer   (Replaces: 4360158)				$ 10.38
11	8189855		Plate (rubber)		Appelez-nous	-
12	8189856		Transformer, 120v		Appelez-nous	-
13	8189857		Plate (nylon)		Appelez-nous	-
14	4360310		Screw		Appelez-nous	-
15	8189858		Support, Back		Appelez-nous	-
16	8189605		Chimney, Lower		Appelez-nous	-
17	8189606		Chimney, Upper		Appelez-nous	-
18	8189859		Chimney, 48``		Appelez-nous	-
19	4360320		Screw		Appelez-nous	-
20	8189608		Bracket, Chimney		Appelez-nous	-
21	8189860		Hood		Appelez-nous	-
22	8189609		Bracket, Upper		Appelez-nous	-
23	8189905		Box, Distribution		Appelez-nous	-
24	8189906		Cover, Box		Appelez-nous	-
