SELECT A DIAGRAM

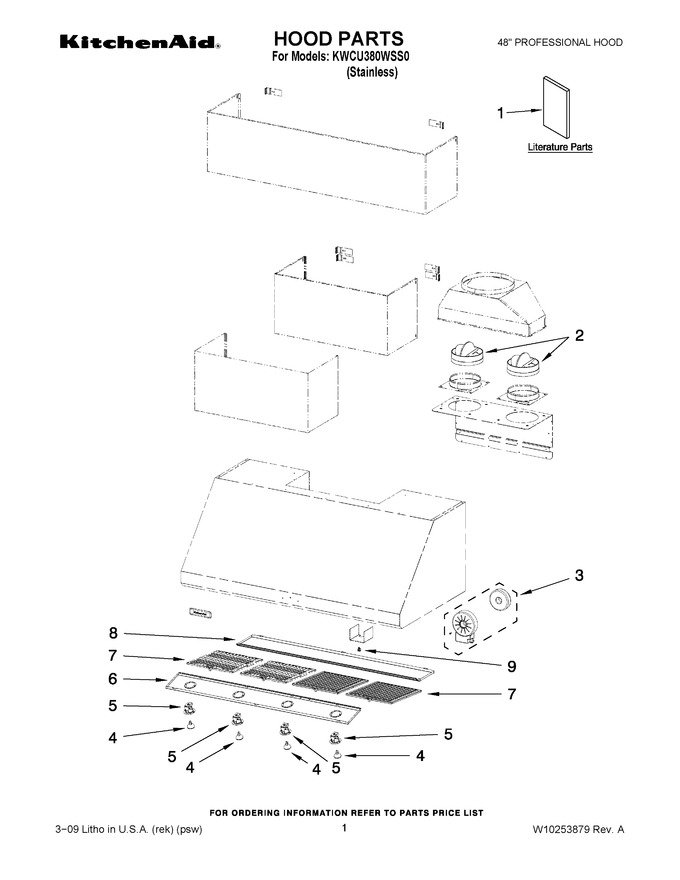

01 - Hood Parts
02 - Ventilation Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10233972 | Use & Care Guide |
|
- | |||||
| 2 | W10252123 | Damper, Hood |
|
$ 136.81 | |||||
| 3 | W10252117 | Kit, Transformer |
|
$ 330.39 | |||||
| 4 | WPW10252088 | Bulb, Halogen (Replaces: W10252088) |
|
Immediately | $ 114.94 | ||||
| 5 | W10252116 | Socket, Bulb |
|
$ 267.02 | |||||
| 6 | W10252130 | Cover, Light |
|
- | |||||
| 7 | WPW10252087 | Filter, Grease (Replaces: W10252087) |
|
Immediately | $ 294.79 | ||||
| 8 | W10252127 | Support, Filter |
|
- | |||||
| 9 | W10252124 | Clamp, Cable |
|
- |
