SELECT A DIAGRAM

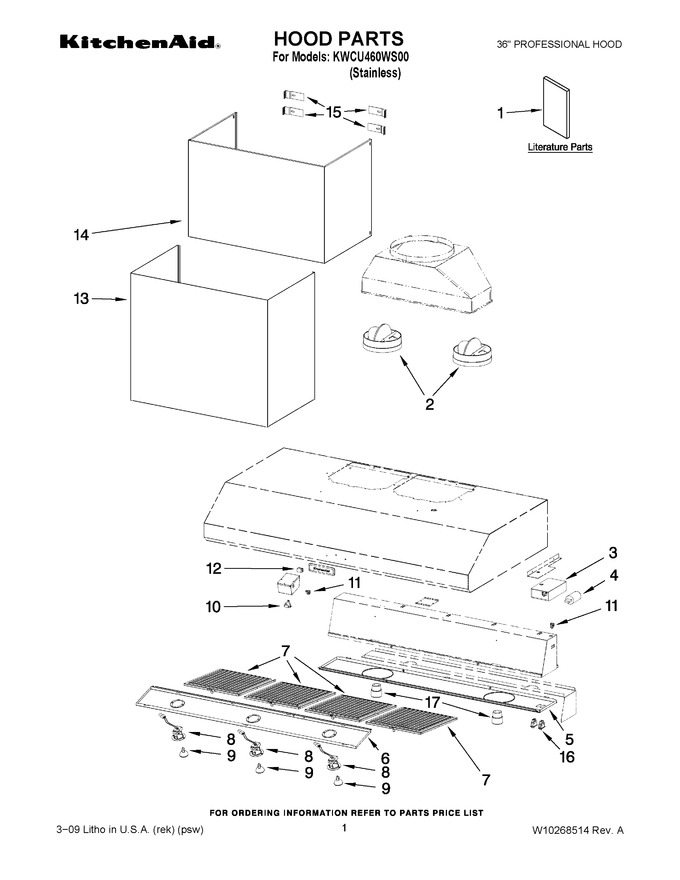

01 - Hood Parts


02 - Ventilation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10233970		Use & Care Guide		Appelez-nous	-
2	W10252123		Damper, Hood				$ 136.81
3	W10252760		Box, Control		Appelez-nous	-
4	W10252757		Capacitor		Appelez-nous	-
5	W10252768		Support, Lamps		Appelez-nous	-
6	W10252766		Cover, Light		Appelez-nous	-
7	WPW10252087		Filter, Grease   (Replaces: W10252087)			Immediately	$ 294.79
8	W10252116		Socket, Bulb				$ 267.02
9	WPW10252088		Bulb, Halogen   (Replaces: W10252088)			Immediately	$ 114.94
10	W10252751		Switch, Slide		Appelez-nous	-
11	W10252785		Clamp, Cable		Appelez-nous	-
12	W10252749		Thermostat		Appelez-nous	-
13	W10252772		Chimney, Lower		Appelez-nous	-
14	W10252775		Chimney, Upper		Appelez-nous	-
15	W10252783		Bracket, Chimney		Appelez-nous	-
16	W10252781		Switch, Slide		Appelez-nous	-
17	W10252782		Socket, Lamp		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
