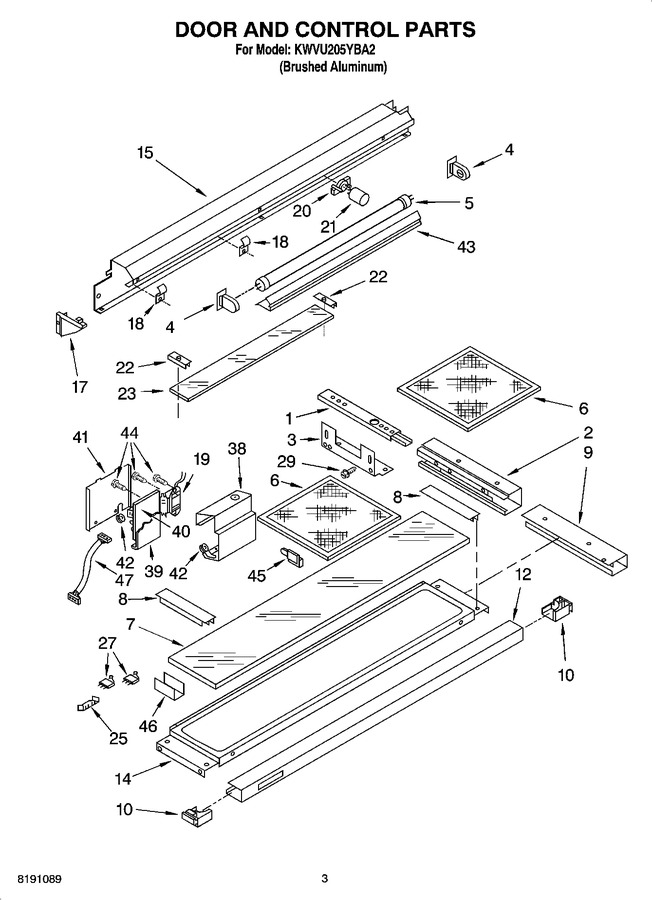

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4360010		Guide, Door (2)				$ 38.55
2	4360105		Housing Guide (right Side)		Appelez-nous	-
2	4360104		Housing Guide (left Side)		Appelez-nous	-
3	4360012		Support, Guide (2)		Appelez-nous	-
4	4360013		Socket, Lamp (2)		Appelez-nous	-
5	4360097		Lamp		Appelez-nous	-
6	WPW10370046		Filter   (Replaces: 4360015)				$ 157.19
7	4360076		Glass, Door		Appelez-nous	-
8	4360017		Brace, Glass (2)		Appelez-nous	-
9	4360024		Frame, Door (right Side)		Appelez-nous	-
9	4360018		Frame, Door (left Side)		Appelez-nous	-
10	4360069		End Cap, Door (left Side)		Appelez-nous	-
10	4360070		End Cap, Door (right Side)				$ 7.42
12	4360112		Handle		Appelez-nous	-
14	4360077		Baffle, Door		Appelez-nous	-
15	4360096		Support, Light		Appelez-nous	-
17	4360100		Bracket Light (left Side)		Appelez-nous	-
17	4360103		Bracket Light (right Side)		Appelez-nous	-
18	4360044		Clamp, Wiring		Appelez-nous	-
19	4360045		Ballast Lamp		Appelez-nous	-
20	4360047		Receptacle		Appelez-nous	-
21	4360046		Starter		Appelez-nous	-
22	4360041		Brace, Glass (2)		Appelez-nous	-
23	4360099		Lens Light		Appelez-nous	-
25	4360102		Base Switch		Appelez-nous	-
27	WPW10240604		Switch (2)   (Replaces: 4360035)				$ 260.25
29	4360073		Screw		Appelez-nous	-
38	4360090		Frame, Controls		Appelez-nous	-
39	4360091		Plate, Board Mtg.		Appelez-nous	-
40	4360092		Board, Microcomputer		Appelez-nous	-
41	4360093		Shield, Microcomputer				$ 12.12
42	4360094		Grommet (2)		Appelez-nous	-
43	4360098		Support, Light (front)		Appelez-nous	-
44	4360114		Screw		Appelez-nous	-
45	4360115		Guide, Cable				$ 5.86
46	4360116		Bracket, Guide		Appelez-nous	-
47	4360121		Harness		Appelez-nous	-
