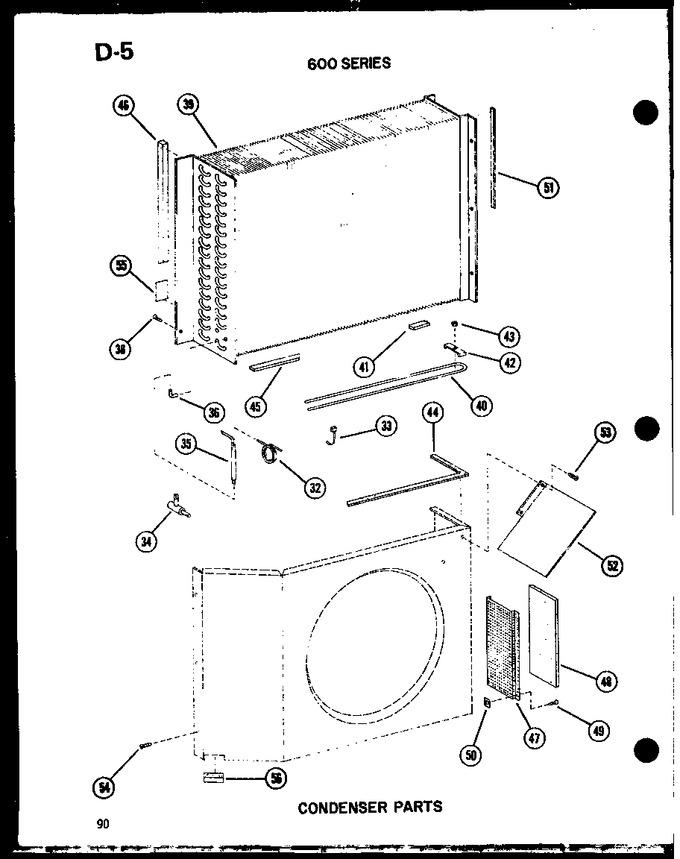

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
32	C5884501		Capillary Preform		Appelez-nous	-
33	M0321204		Wire Tie		Appelez-nous	-
35	B5159306		Strainer		Appelez-nous	-
36	A4698401		Elbow		Appelez-nous	-
38	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
39	D5465403		Cond Assy		Appelez-nous	-
41	A4017201		Seal Strip		Appelez-nous	-
44	A3030330		Gasket,per Ft		Appelez-nous	-
46	A3030316		Gasket		Appelez-nous	-
47	B5171601		Screen		Appelez-nous	-
48	B4734713		Gasket Pad, Condensate Anti-sp		Appelez-nous	-
49	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
50	M0286003		Nut A		Appelez-nous	-
51	A3030301		Gasket (inch)		Appelez-nous	-
52	B1106701		Baffle-cond		Appelez-nous	-
53	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
54	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
55	A4692201		Insulator		Appelez-nous	-
56	A3030303		Gasket (per Foot)		Appelez-nous	-
