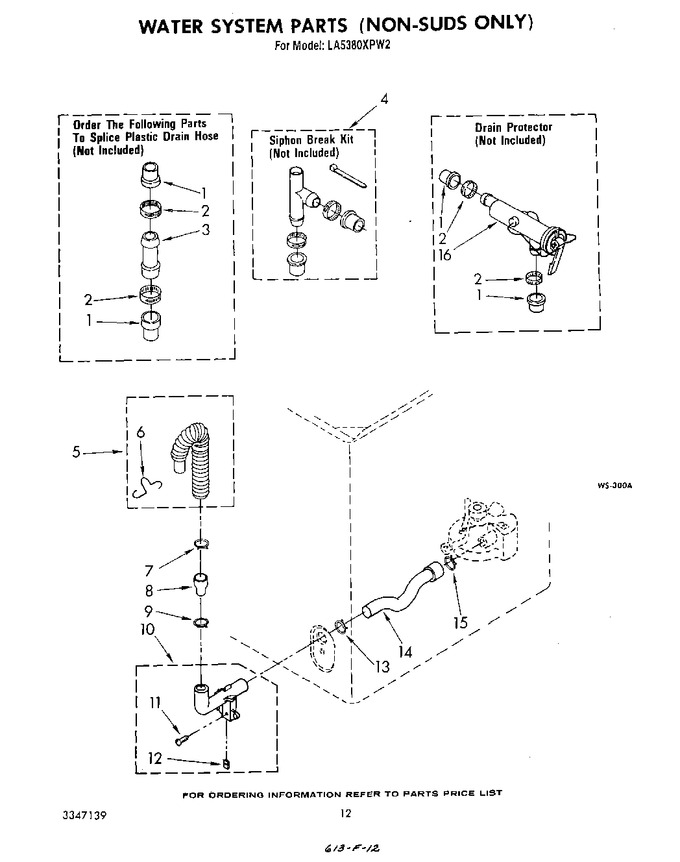

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 285321 | Sleeve Kit, Plastic Drain Hose (contains 2 Sleeves) |
|
$ 88.11 | |||||
| 2 | WP285655 | Clamp, Hose (2) (Replaces: 65349) |
|
Immediately | $ 8.81 | ||||
| 3 | WP16272 | Connector Straight (Replaces: 16272) |
|
$ 8.21 | |||||
| 4 | 76660 | Siphon Break Kit (not Included) (Replaces: 285320) |
|
Immediately | $ 139.91 | ||||
| 5 | 285666 | Hose, Corrugated Plastic Drain (10 Ft.) (not Included) (Replaces: 388418) |
|
Immediately | $ 62.34 | ||||
| 5 | 285664 | Hose, Corrugated Plastic Drain (5-1/2 Ft.) (Replaces: 387325) |
|
Immediately | $ 36.89 | ||||
| 6 | 357247 | Retainer, Drain Hose |
|
- | |||||
| 7 | WP616099 | Clamp, Hose (Replaces: 371504) |
|
Immediately | $ 8.58 | ||||
| 8 | WP384496 | Coupling, Hose (Replaces: 384496) |
|
$ 90.39 | |||||
| 9 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 10 | 358805 | Connector, 90 O |
|
- | |||||
| 11 | 90876 | Screw, Connector Mounting (10 X 3/4) |
|
- | |||||
| 12 | 351395 | Clip |
|
- | |||||
| 13 | WP356138 | Clamp, Hose (Replaces: 353095) |
|
Immediately | $ 8.52 | ||||
| 14 | 358560 | Hose, Pump To 90 O Connector |
|
- | |||||
| 15 | WP285655 | Clamp, Hose (Replaces: 272858) |
|
Immediately | $ 8.81 | ||||
| 16 | 367031 | Drain Protector (not Included) |
|
- |
