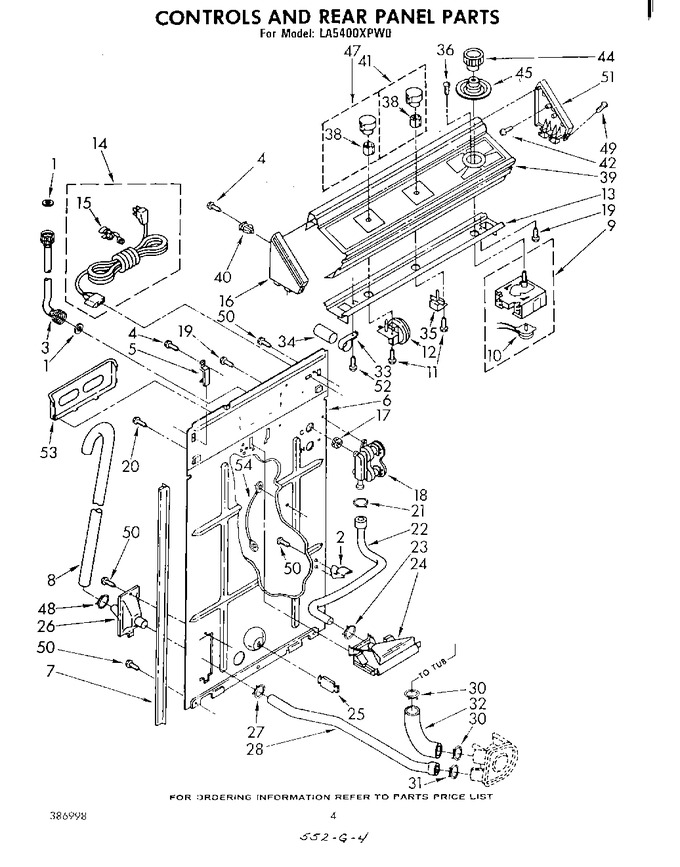

03 - Controls And Rear


04 - Agitator, Basket And Tub


05 - Miscellaneous


06 - Brake, Clutch, Gearcase, Motor And Pump


07 - Machine Base


08 - Wiring Harness


09 - Brake And Drive Tube


10 - Gearcase


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) (1-1/16 X 5/8)   (Replaces: 16123)				$ 8.16
2	63162		Pin, Cabinet Guide (2)		Appelez-nous	-
3	WP89503		Hose, Water Inlet (2)   (Replaces: 81339)			Immediately	$ 24.09
4	WP681414		Screw, 10-16 X 1/2   (Replaces: 687128)			Immediately	$ 8.47
5	DE81-08146A		Hinge, Console (2)   (Replaces: 62748)				$ 176.02
6	100092565		Panel, Rear   (Replaces: 63730)				$ 124.76
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 27.57
8	WP96743		Hose, Drain   (Replaces: 96743)				$ 106.08
9	64007		Timer, Control (60 Hz.)				$ 19.80
10	63493		Motor, Timer		Appelez-nous	-
11	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 8.25
12	63903		Switch, Water Level		Appelez-nous	-
13	63688		Bracket, Control		Appelez-nous	-
14	W10820044		Cord, Power   (Replaces: 62734)				$ 149.87
15	62733		Strain Relief, Power Cord		Appelez-nous	-
16	63789		Cap, End (l.h.)		Appelez-nous	-
17	WP96160		Screen, Filter (2)   (Replaces: 96160)				$ 12.30
18	285805		Valve, Water Mixing   (Replaces: 358992)			Immediately	$ 55.08
19	WP3351614		Screw, 10-24 X 3/8 (2)   (Replaces: 90864)			Immediately	$ 7.30
20	WP681414		Screw, Ground (10-16 X 1/2)   (Replaces: 359262)			Immediately	$ 8.47
21	WP596669		Clamp, Hose   (Replaces: 272846)			Immediately	$ 8.82
22	WP3357328		Hose, Vacuum Break   (Replaces: 62662)			Immediately	$ 24.78
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.82
24	WP3347034		Break, Vacuum   (Replaces: 63029)			Immediately	$ 75.28
25	WP8519200		Support, Rear Panel   (Replaces: 63290)			Immediately	$ 19.85
26	WPW10358149		Connector, Drain   (Replaces: 63206)			Immediately	$ 48.16
27	WP356138		Clamp, Hose   (Replaces: 272856)			Immediately	$ 8.52
28	WP3348552		Hose, Pump To Drain Connector   (Replaces: 63172)				$ 89.09
30	WP371502		Clamp, Hose   (Replaces: 371502)				$ 12.31
31	WP285655		Clamp, Hose   (Replaces: 272858)			Immediately	$ 8.81
32	285871		Hose, Pump To Tub   (Replaces: 62731)			Immediately	$ 28.99
33	357030		Clamp, Capacitor				$ 22.14
34	WP8572717		Capacitor, Motor Start (mfd 189, 110 Volts)   (Replaces: 357021)			Immediately	$ 80.14
35	660746		Switch, Water Temperature		Appelez-nous	-
35	358935		Switch, Water Temperature (alt.)		Appelez-nous	-
35	358934		Switch, Water Temperature (alt.)		Appelez-nous	-
36	WP356418		Screw, Timer Mounting (10-32 X 1) (2)   (Replaces: 96435)				$ 9.26
38	WP688805		Clip, Control Knob   (Replaces: 688805)			Immediately	$ 8.20
39	63679		Panel, Console		Appelez-nous	-
40	689559		Nut, Push-in (2)		Appelez-nous	-
41	386630		Knob, Water Temperature				$ 65.25
42	355326		Screw, 13/16 X 5/8 (4)		Appelez-nous	-
44	386570		Knob, Timer		Appelez-nous	-
45	64138		Dial, Timer				$ 34.89
47	386629		Knob, Water Level		Appelez-nous	-
48	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
49	WP388326		Screw, 8-18 (2) (panel To Top)   (Replaces: 64211)				$ 9.29
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 8.25
51	63795		Cap, End. (r.h.)				$ 14.10
52	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
53	63020		Rack, Literature				$ 30.32
54	364089		Wire, Ground		Appelez-nous	-
