Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 LIT2220773 Literature Parts (sheet, Service & Wiring) Appelez-nous -
1 LIT628371 Modular Icemaker Service Sheet Appelez-nous -
1 LIT2220775 Literature Parts (energy Label) Appelez-nous -
1 LIT2254913 Literature Parts (use & Care Guide) Appelez-nous -
2 2203007 Front Roller (2) Appelez-nous -
3 3400512 Bolt Appelez-nous -
4 2203008 Roller (rear) (2) Appelez-nous -
5 3400511 Bolt Appelez-nous -
6 2209558 Clip, Grille Special Order $ 7.85

7 WP489478 Screw   (Replaces: 489478) Special Order $ 7.36

8 2214629 Shield, Wiring Appelez-nous -
9 WP2181911 Shim   (Replaces: 2156056) Special Order $ 31.38

11 2205330 Service Cord Appelez-nous -
12 2307007B Hinge Top (left, Black)   (Replaces: 2199935B) Special Order $ 126.07

12 2307008B Hinge Top (right, Black)   (Replaces: 2203124B) Special Order $ 42.80

16 2208137 Hinge & Cam Assy. Special Order $ 48.43

20 W11594405 Pin   (Replaces: 981126) In-Stock Immediately $ 17.21

21 2203067B Filler, Wrapper (black) Special Order $ 30.25

22 2199904B Grille (black) Special Order $ 49.36

23 WP489497 Screw   (Replaces: 489497) In-Stock Immediately $ 26.18

24 WP2199840 Housing, Water Filter   (Replaces: 2199840) In-Stock Immediately $ 238.14

25 EDR5RXD1B Water Filter   (Replaces: 2203220) In-Stock Immediately $ 49.99

26 WP489478 Screw   (Replaces: 489478) Special Order $ 7.36

27 WP2186494B Cap, Water Filter (black)   (Replaces: 2186494B) In-Stock Immediately $ 50.27

35 WP489464 Screw   (Replaces: 489464) In-Stock Immediately $ 7.54

41 W11566763 Drain Fitting   (Replaces: 940139) In-Stock Immediately $ 48.11

42 2199954 Extension Tube Appelez-nous -
43 WP1108439 Clip, Drain Tube   (Replaces: 1108439) Special Order $ 10.15

47 2214527 Cover, Unit Appelez-nous -
48 N/A Cabinet (not A Serviceable Part) Appelez-nous -
52 489348 Clamp, Service Cord Appelez-nous -
53 WPW10141645 Screw   (Replaces: 489084) Special Order $ 7.25

N/A Literature Parts Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

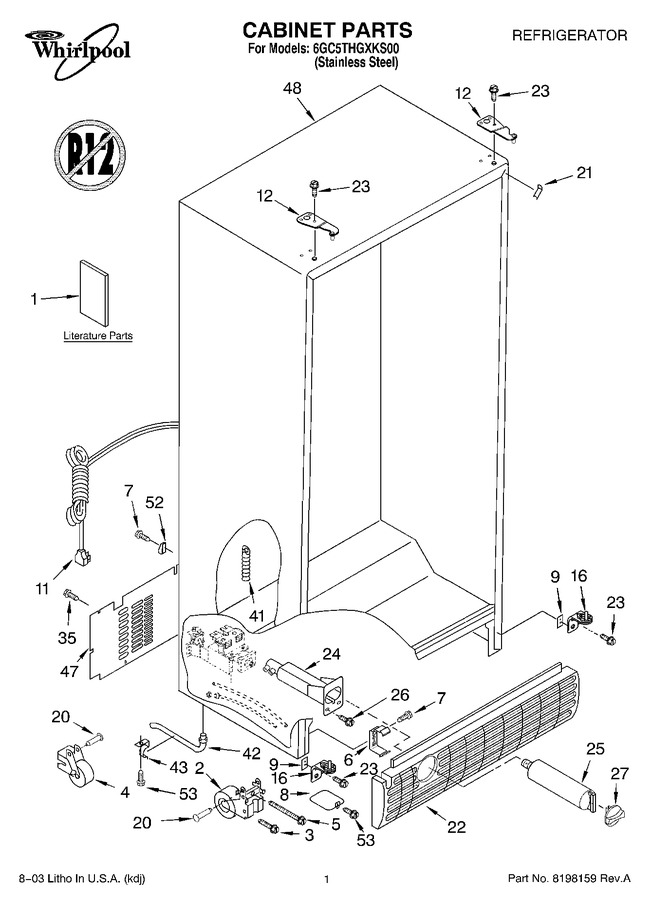

Diagram for 6GC5THGXKS00
