SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Air Flow Parts


06 - Motor And Ice Container Parts


07 - Refrigerator Door Parts


08 - Freezer Door Parts


09 - Dispenser Front Parts


10 - Unit Parts


11 - Icemaker Parts


12 - Control Parts, Optional Parts (not Included)

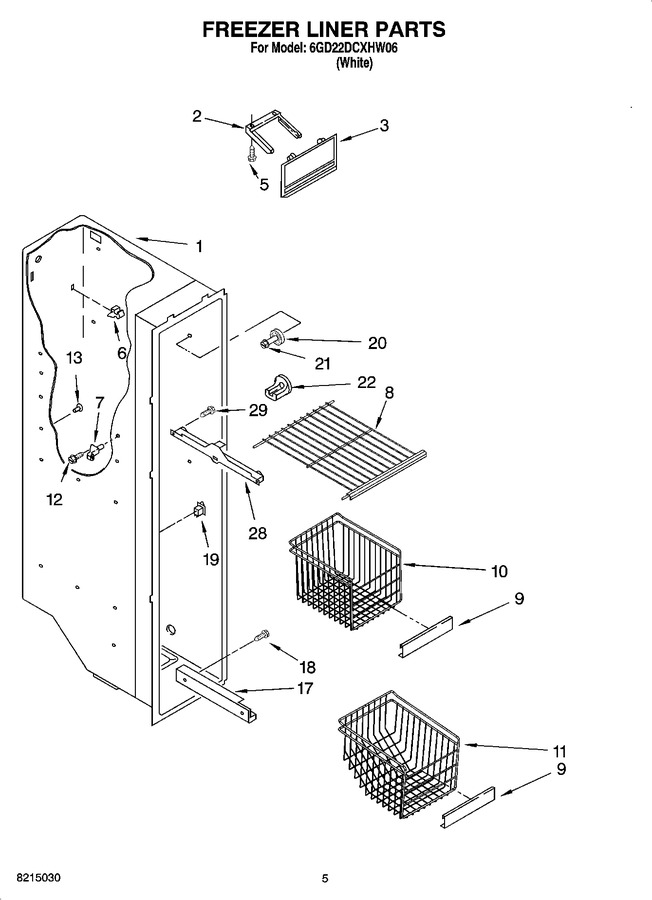

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	1115380		Slide, Ice Door		Appelez-nous	-
3	2171712		Door, Ice Compartment				$ 69.91
5	WP489478		Screw   (Replaces: 489478)				$ 7.75
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.94
7	2196206		Support, Stud		Appelez-nous	-
8	WP2174249K		Shelf (2)   (Replaces: 2174249K)				$ 211.19
9	2195904K		Trim, Basket		Appelez-nous	-
10	2301192		Basket, Tall		Appelez-nous	-
11	2301193		Basket, Slope		Appelez-nous	-
12	W10142289		Screw   (Replaces: 3400893)				$ 9.15
13	2176134		Grommet (4)				$ 5.83
17	2261449		Shelf Track (right Side (2))				$ 46.07
17	2261448		Shelf Track (left Side (2))				$ 46.07
18	W10759522		Screw (8)   (Replaces: W10004810)				$ 7.75
19	W11457217		Switch, Rocker Arm   (Replaces: 1115373)				$ 38.18
20	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 10.35
21	WP3400806		Screw   (Replaces: 8281158)				$ 7.71
22	2196207		Stud, Rear				$ 7.61
28	W10845585		Slide, Ice Container (left Side)   (Replaces: 1119237)				$ 132.77
28	W10845583		Slide, Ice Container (right Side)   (Replaces: 1119293)				$ 123.92
29	718257		Screw   (Replaces: 489100)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
