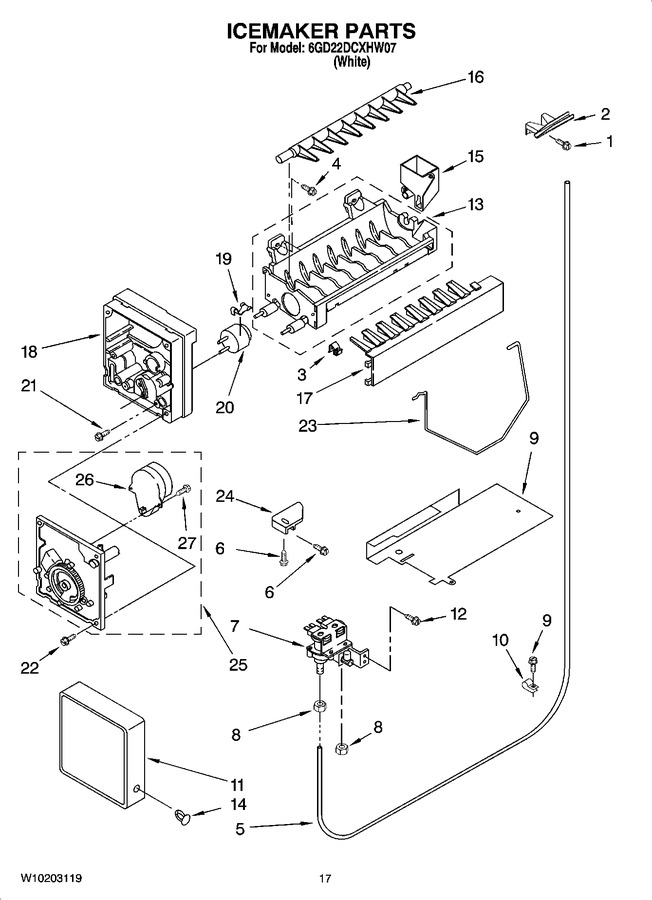

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 7.25 | |||||
| 2 | W11505385 | Chute, Water (Replaces: 2209774) |
|
$ 31.79 | |||||
| 3 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 9.99 | |||||
| 4 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 5 | W10823511 | Tube, Water (Replaces: 2304859) |
|
Immediately | $ 29.17 | ||||
| 6 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 7 | W10158155 | Valve, Solenoid |
|
- | |||||
| 8 | WP489478 | Nut, Compression (Replaces: W10001260) |
|
$ 7.36 | |||||
| 9 | 2256178 | Heat Shield (Replaces: 2182414) |
|
- | |||||
| 10 | WP488366 | Clamp, Tube (Replaces: 489385) |
|
$ 10.73 | |||||
| 11 | WPW10289690 | Cover (Replaces: 2174183) |
|
$ 7.94 | |||||
| 12 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 20.00 | |||||
| 13 | W10122523 | Mold & Heater Assembly (also Order 542638 Silicone Grease) |
|
- | |||||
| 14 | 489115 | Clip |
|
$ 5.51 | |||||
| 15 | W10122561 | Cup, Water Fill (Replaces: 628515) |
|
$ 26.24 | |||||
| 16 | WP627843 | Ejector (Replaces: 627843) |
|
$ 79.00 | |||||
| 17 | WP2182124 | Ice Striper (Replaces: 2182124) |
|
$ 81.32 | |||||
| 18 | WP2195914 | Support (Replaces: 2195914) |
|
$ 98.82 | |||||
| 19 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 10.44 | |||||
| 20 | WP2321258 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 2321258) |
|
$ 93.54 | |||||
| 21 | W10001280 | Screw |
|
- | |||||
| 22 | W10001240 | Screw |
|
$ 8.30 | |||||
| 23 | W11807379 | Shut Off Arm (Replaces: 2304354) |
|
Immediately | $ 56.89 | ||||
| 24 | W11500948 | Bracket (Replaces: 628320) |
|
Immediately | $ 30.40 | ||||
| 25 | W10122522 | Module Assembly (includes Items 26 & 27) |
|
- | |||||
| 26 | 628530 | Motor |
|
- | |||||
| 27 | 489136 | Screw |
|
$ 9.72 | |||||
| 100 | W10122504 | Complete Icemaker Assembly |
|
- |
