SELECT A DIAGRAM

02 - Top And Console


03 - Drive


04 - Tub And Basket

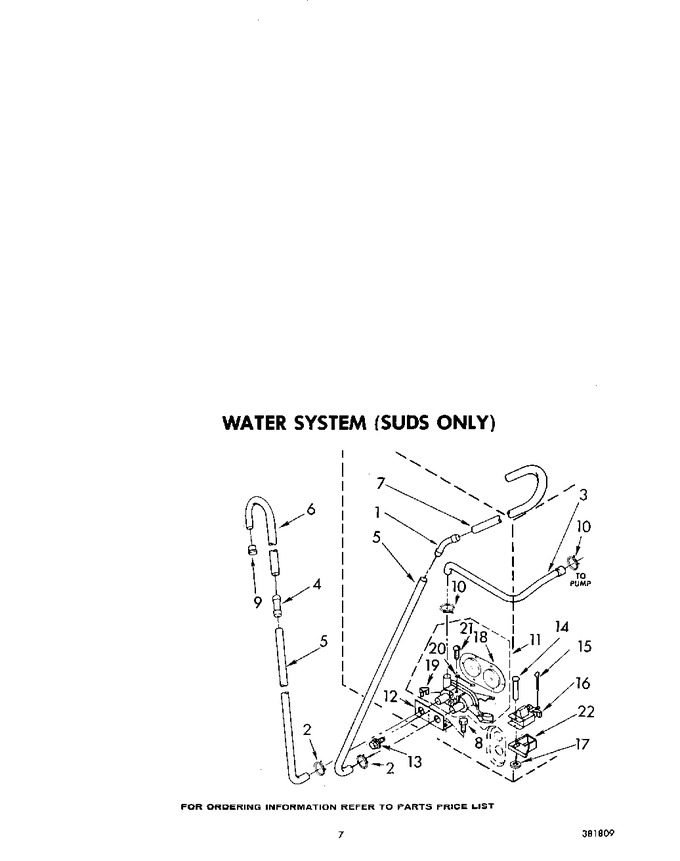

05 - Water System (suds Only)


06 - Cabinet


07 - Miscellaneous, Lit/optional


08 - Gearcase


09 - Basket Drive And Brake


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	95440		Connector, Hose				$ 22.55
2	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
3	357189		Hose, Pump To Valve (suds)		Appelez-nous	-
4	WP16272		Connector, Hose (suds)   (Replaces: 16272)				$ 8.21
5	96746		Hose, Outlet (suds)				$ 83.09
6	91273		Hose, Suds Return		Appelez-nous	-
7	WP96743		Hose, Drain   (Replaces: 96743)				$ 106.08
8	WP681414		Screw, No.10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
9	352833		Strainer, Hose (suds)		Appelez-nous	-
10	272857		Clamp, Hose		Appelez-nous	-
11	WP359364		Two-way Valve Assembly (suds)   (Replaces: 359364)			Immediately	$ 8.23
12	357191		Bracket, Two-way Valve		Appelez-nous	-
13	190575		Screw & Washer		Appelez-nous	-
14	359089		Rivet		Appelez-nous	-
15	90228		Pin, Cotter		Appelez-nous	-
16	DE81-09913A		Solenoid   (Replaces: 86798)				$ 37.56
17	WP90296		Clip, Push-on   (Replaces: 90296)				$ 8.24
18	358317		Diaphragm		Appelez-nous	-
19	96262		Clip, Retainer (8)		Appelez-nous	-
20	358343		Strap, Ground		Appelez-nous	-
21	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
22	359096		Shield, Two-way Valve		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
