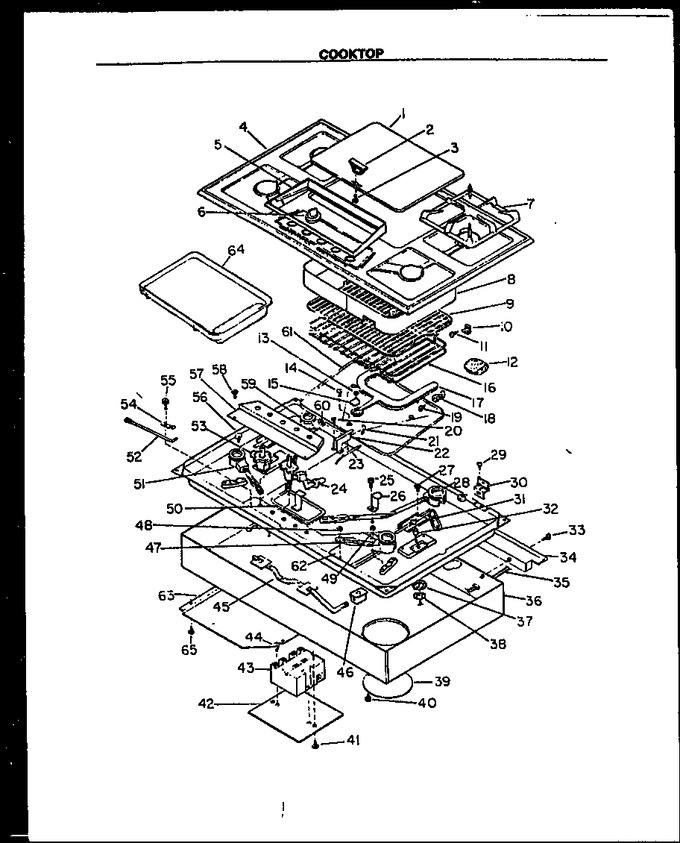

View Diagram in Separate Window
Print Part List
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0040605 | Grille Cover (chr) |
|
- | |||||
| 2 | 0042441 | Warming Tray Handle Xet-390 |
|
- | |||||
| 3 | WP4159193 | Screw, No.10-24x1/4 (pan Ph Hd) (Replaces: Y0041765) |
|
$ 4.77 | |||||
| 4 | 40033W | Main Top - White |
|
- | |||||
| 4 | 40033L | Main Top - Almond |
|
- | |||||
| 4 | 0040032 | Main Top, Chrome |
|
- | |||||
| 4 | 40033H | Main Top - Harvest |
|
- | |||||
| 5 | 0042666 | Control Tower |
|
- | |||||
| 5 | 0042836 | Name Plate (caloric) Gt587 |
|
- | |||||
| 6 | Y0042657 | Control Knob Gt587 Caloric |
|
- | |||||
| 7 | Y0042348 | Grate, Top Burner |
|
- | |||||
| 8 | 0040635 | Griddle Burner Baffle W/notch |
|
- | |||||
| 8 | Y0040636 | Griddle Burner Baffle W/notch |
|
- | |||||
| 9 | Y0042702 | Grille Alum Grill Tops |
|
- | |||||
| 10 | Y0041063 | Grill Support 583 |
|
- | |||||
| 11 | Y0041769 | Screw 6 32x5/16 Ph Fh |
|
- | |||||
| 12 | 0042813 | Charcoal 1 Bag Of 22 Pcs |
|
- | |||||
| 13 | Y0041802 | Screw |
|
- | |||||
| 14 | Y0041789 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 15 | 0040858 | Air Shutter |
|
- | |||||
| 16 | 0042738 | Charcoal Basket |
|
- | |||||
| 17 | 0041515 | Assy, Griddle Burner Gt-383 |
|
- | |||||
| 18 | Y0041894 | Locating Pin Gt-583 |
|
- | |||||
| 19 | Y0041789 | Screw, No.8-32 X 5/16 Pph (blk) |
|
- | |||||
| 20 | Y41808 | Screw |
|
- | |||||
| 21 | Y0042209 | Grille Electrode Gt-583 |
|
- | |||||
| 22 | Y0040958 | Grille Electrode Bracket |
|
- | |||||
| 23 | Y0042209 | Grille Electrode Gt-583 |
|
- | |||||
| 24 | 42326 | Spring |
|
$ 168.82 | |||||
| 24 | Y0042037 | Licon Switch Spark |
|
- | |||||
| 24 | 0042327 | Valve Extension |
|
- | |||||
| 25 | Y41808 | Screw |
|
- | |||||
| 26 | 0040959 | Grease Pan Support Gt-583 |
|
- | |||||
| 27 | Y41808 | Screw |
|
- | |||||
| 28 | 0042355 | Top Burner |
|
- | |||||
| 29 | W11245710 | Screw, No.8-18 X 3/8 P Trs Hd Lp (Replaces: Y0041809) |
|
Immediately | $ 14.05 | ||||
| 30 | Y0041908 | Hinge Cooktops |
|
- | |||||
| 31 | Y0040813 | Flash Tube Assy Gt-451 423 |
|
- | |||||
| 32 | 0041463 | Electrode-cap-brkt Assy Gt |
|
- | |||||
| 33 | Y41808 | Screw |
|
- | |||||
| 34 | 0042486 | Gt483 Trim 1000 Min |
|
- | |||||
| 35 | 0042028 | Cord Set (j) |
|
- | |||||
| 35 | Y0042109 | Strain Relief |
|
- | |||||
| 36 | Y0040471 | Outside Box W/a Gt-583 |
|
- | |||||
| 39 | Y0040637 | Access Cover Ct383 Japan |
|
- | |||||
| 40 | Y41808 | Screw |
|
- | |||||
| 41 | Y0041825 | Screw, No.8-32 X 3/8 Hex Wsh Hd |
|
- | |||||
| 42 | 40957 | Module Mounting Plate |
|
- | |||||
| 43 | Y0042219 | Kit, Spark Module (service) |
|
- | |||||
| 44 | Y0041825 | Screw, No.8-32 X 3/8 Hex Wsh Hd |
|
- | |||||
| 45 | 0042378 | Manifold Pipe |
|
- | |||||
| 46 | 0042301 | Pressure Regulator Ki-721 |
|
- | |||||
| 47 | 0042352 | Top Burner 1000 Min |
|
- | |||||
| 48 | Y41808 | Screw |
|
- | |||||
| 49 | Y0041803 | Metal Screw 10x1/2w/8hex Wa/hd |
|
- | |||||
| 50 | 40591CG | Drip Tray |
|
- | |||||
| 51 | 0042354 | Top Burner 1000 Min |
|
- | |||||
| 52 | Y0042737 | Prop Rod Gt-483-583 |
|
- | |||||
| 52 | Y0042002 | Rod Tip, Rubber |
|
- | |||||
| 53 | Y0042324 | Valve, Harper Surface Gt-451 |
|
- | |||||
| 53 | Y0042053 | Harper Spark Switch 160 |
|
- | |||||
| 54 | Y0041869 | Timerman |
|
- | |||||
| 55 | Y41808 | Screw |
|
- | |||||
| 56 | 40480CG | Burner Box |
|
- | |||||
| 57 | 40803CG | Switch Cover |
|
- | |||||
| 58 | Y41808 | Screw |
|
- | |||||
| 59 | Y0042356 | Top Burner Gt-483 |
|
- | |||||
| 60 | 41805 | Screw |
|
- | |||||
| 61 | 0040599 | Grease Pan, Chrome |
|
- | |||||
| 62 | Y0040632 | Access Cover |
|
- | |||||
| 63 | Y0040814 | Outside Box Baffle Gt-583 |
|
- | |||||
| 64 | 0043503 | Griddle, Teflon (blk) |
|
- | |||||
| 65 | Y41808 | Screw |
|
- | |||||
| NI | 0042106 | Plug Molex 1m-5m-10m |
|
- | |||||
| NI | 0042107 | Term Hous 1m-5m-10m |
|
- |
