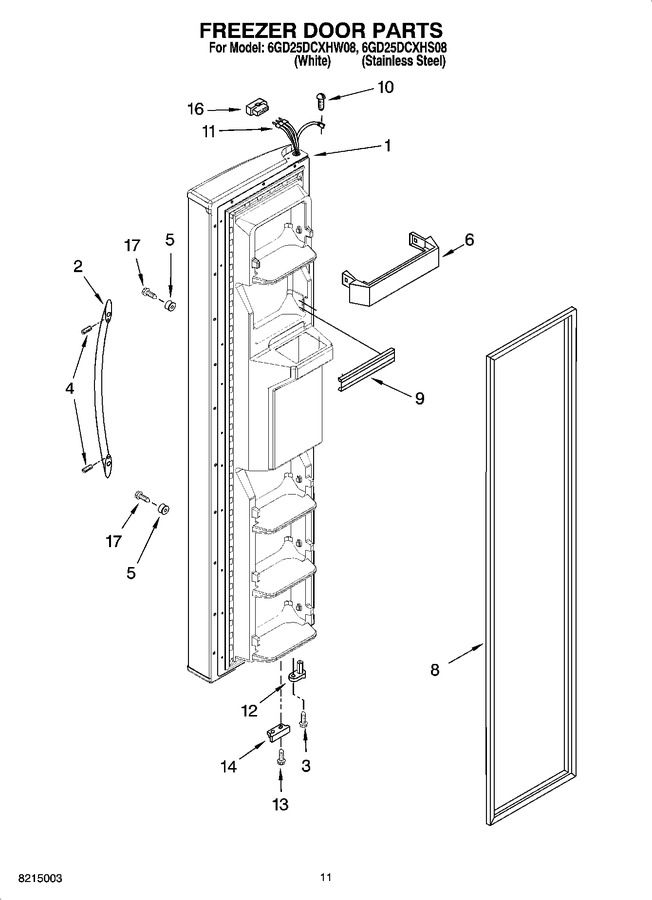

07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2261781SB		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless Steel)		Appelez-nous	-
1	2261781W		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	2304832W		Handle (white)		Appelez-nous	-
2	2304832SK		Handle (stainless)		Appelez-nous	-
3	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
4	W11366418		Screw, Set   (Replaces: W10010140)			Immediately	$ 16.59
5	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.69
6	WP2171157		Trivet, Shelf (4)   (Replaces: 2171157K)				$ 57.33
8	2159074		Door Gasket, Magnetic (black)   (Replaces: 2221303)				$ 293.13
8	2159082		Door Gasket, Magnetic (black)   (Replaces: 2221314)				$ 299.24
9	WPW10307490		Trim, Door Shelf   (Replaces: 2209681)			Immediately	$ 21.84
10	WP489128		Screw   (Replaces: 488500)				$ 10.26
11	2311641		Wiring Harness, Dispenser   (Replaces: 2206601)		Appelez-nous	-
12	WP2182179		Door Closer, Upper Cam   (Replaces: 2182179)			Immediately	$ 6.48
13	WP489483		Screw   (Replaces: 489420)				$ 10.27
14	2200082B		Bracket, Door Stop (black)				$ 42.44
14	2200082		Bracket, Door Stop (chrome)				$ 5.83
16	WP2154473		Connector   (Replaces: 2154473)				$ 22.35
17	WP488163		Screw   (Replaces: 488208)				$ 7.13
