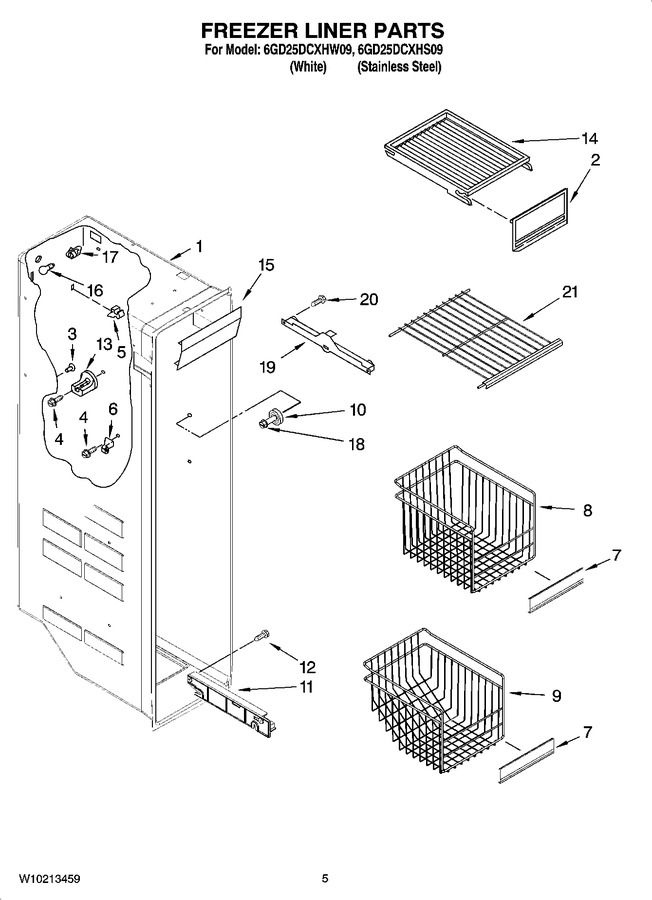

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP2171713		Door, Ice Compartment   (Replaces: 2171713K)				$ 87.27
3	2176134		Grommet				$ 5.83
4	W10142289		Screw   (Replaces: 3400893)				$ 9.15
5	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
6	2196206		Support, Stud		Appelez-nous	-
7	2195905K		Trim, Basket		Appelez-nous	-
8	2301190		Basket, Tall				$ 90.43
9	2301191		Basket, Sloped				$ 96.19
10	WP2196483		Stud Assembly (6)   (Replaces: 2196483)				$ 10.35
11	2261449		Slide, Basket (right Side (2))				$ 46.07
11	2261448		Slide, Basket (left Side (2))				$ 46.07
12	W10759522		Screw (8)   (Replaces: W10004810)				$ 7.75
13	2196207		Stud, Rear				$ 7.61
14	2171714K		Shelf, Top Compartment		Appelez-nous	-
15	2171705		Light Lens				$ 94.68
16	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 11.75
17	W11447232		Light Socket   (Replaces: W10134764)			Immediately	$ 13.21
18	WP3400806		Screw (6)   (Replaces: 8281158)				$ 7.71
19	W10845585		Slide, Container (left Side)   (Replaces: 1119237)				$ 132.77
19	W10845583		Slide, Container (right Side)   (Replaces: 1119293)				$ 123.92
20	718257		Screw   (Replaces: 489100)		Appelez-nous	-
21	WP2174267		Shelf   (Replaces: 2174267K)				$ 88.90
