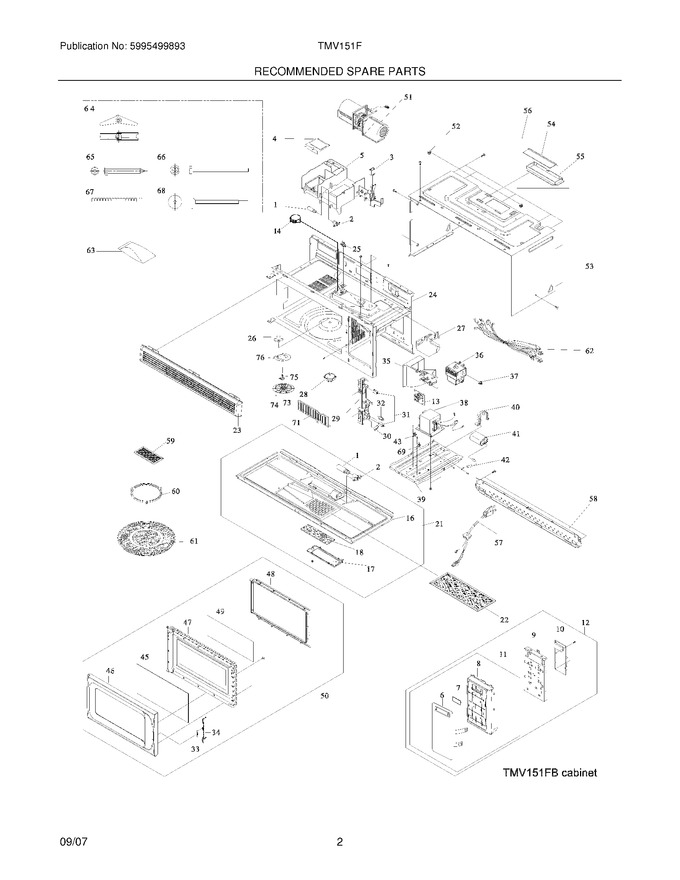

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 5304456069 | Bracket,duct ,upper |
|
- | |||||
| 5 | 5304456070 | Dust Assembly,upper |
|
- | |||||
| 7 | 5304456073 | Window,display |
|
- | |||||
| 8 | 5304456075 | Panel,control ,white |
|
- | |||||
| 9 | 5304456076 | Bracket,control Panel |
|
- | |||||
| 16 | 5304456084 | Base,bottom ,white |
|
- | |||||
| 17 | 5304456086 | Cover,cooktop Lamp ,white |
|
- | |||||
| 18 | 5304456087 | Glass,cooktop Lamp |
|
- | |||||
| 21 | 5304456089 | Bottom Base,assembly ,white |
|
- | |||||
| 22 | 5304456090 | Filter,air |
|
- | |||||
| 23 | 5304456092 | Grille,white |
|
- | |||||
| 24 | 5304456093 | Cavity,assembly |
|
- | |||||
| 26 | 5304456095 | Coupler,turntable/motor |
|
- | |||||
| 27 | 5304456096 | Guide,air ,upper |
|
- | |||||
| 29 | 5304456098 | Latch Body,assembly |
|
- | |||||
| 30 | 5304456099 | Lever,switch ,lower |
|
- | |||||
| 33 | 5304456102 | Spring,latch |
|
- | |||||
| 34 | 5304456103 | Latch,door |
|
- | |||||
| 35 | 5304456104 | Guide,air ,lower |
|
- | |||||
| 39 | 5304456108 | Base Plate,assembly |
|
- | |||||
| 40 | 5304456109 | Bracket,capacitor |
|
- | |||||
| 45 | 5304456113 | Screen,door |
|
- | |||||
| 46 | 5304456115 | Front,door ,white |
|
- | |||||
| 47 | 5304456116 | Middle Door,assembly |
|
- | |||||
| 48 | 5304456117 | Liner,door |
|
- | |||||
| 49 | 5304456118 | Film,door |
|
- | |||||
| 50 | 5304456120 | Door Complete,assembly ,white |
|
- | |||||
| 52 | 5304456122 | Nut,holder Assembly ,(2) |
|
- | |||||
| 53 | 5304456124 | Wrapper,outer ,white |
|
- | |||||
| 54 | 5304456125 | Cover,damper |
|
- | |||||
| 55 | 5304456126 | Damper,main |
|
- | |||||
| 56 | 5304456127 | Damper Assembly,hood |
|
- | |||||
| 58 | 5304456129 | Plate,mounting |
|
- | |||||
| 59 | 5304455657 | Filter,charcoal |
|
$ 73.53 | |||||
| 60 | 5304456130 | Guide,roller Assembly |
|
- | |||||
| 61 | 5304456131 | Tray,turntable |
|
- | |||||
| 63 | 5304456133 | Hardware Assembly,mounting |
|
- | |||||
| 64 | 5304456134 | Nut,toggle ,(3) |
|
- | |||||
| 65 | 5304456135 | Screw,machine ,inch |
|
- | |||||
| 66 | 5304456136 | Bolt,toggle ,(3) |
|
- | |||||
| 67 | 5304456137 | Grommet,(2) |
|
- | |||||
| 68 | 5304456138 | Bolt,flat ,(3) |
|
$ 10.08 | |||||
| 71 | 5304456140 | Cover,front |
|
- | |||||
| 73 | 5304456141 | Cover,stirrer |
|
- | |||||
| 74 | 5304456142 | Button,lock |
|
- | |||||
| 75 | 5304456143 | Holder,stirrer |
|
- | |||||
| 76 | 5304456144 | Blade,stirrer |
|
- | |||||
| F1 | 5304456066 | Lamp,incandescent ,(3) |
|
- | |||||
| F10 | 5304456077 | Pc Board,assembly |
|
- | |||||
| F11 | 5304456079 | Control Panel,assembly ,white ,complete |
|
- | |||||
| F12 | 5304456081 | Control Box,assembly ,white |
|
- | |||||
| F13 | 5304456082 | Filter,noise |
|
- | |||||
| F14 | 5304464016 | Motor,stirrer Fan |
|
- | |||||
| F2 | 5304456067 | Holder,lamp ,(3) |
|
- | |||||
| F25 | 5304456094 | Thermostat,upper |
|
$ 55.65 | |||||
| F28 | 5304456097 | Motor,drive |
|
- | |||||
| F3 | 5304456068 | Capacitor,motor |
|
- | |||||
| F31 | 5304456100 | Switch,micro ,(2) |
|
- | |||||
| F32 | 5304456101 | Switch,micro |
|
- | |||||
| F36 | 5304456105 | Magnetron Assembly |
|
$ 266.23 | |||||
| F37 | 5304456106 | Thermostat |
|
$ 46.62 | |||||
| F38 | 5304456107 | Transformer,high Voltage |
|
- | |||||
| F41 | 5304456110 | Capacitor,oil |
|
$ 172.62 | |||||
| F42 | 5304456111 | Diode,rectifier |
|
$ 60.27 | |||||
| F43 | 5304456112 | Thermostat,lh ,lower |
|
$ 43.65 | |||||
| F51 | 5304456121 | Motor,ventilation |
|
- | |||||
| F57 | 5304456128 | Cord,power Assembly |
|
- | |||||
| F6 | 5304456072 | Membrane,switch ,white |
|
- | |||||
| F62 | 5304456132 | Harness,wiring ,main |
|
- | |||||
| F69 | 5304456139 | Thermostat,rh ,lower |
|
- | |||||
| NI | 316488500 | Owners Manual |
|
- | |||||
| NI | 316488501 | Installation Instructions |
|
- | |||||
| NI | 316488502 | Template,rear Wall Instl |
|
- | |||||
| NI | 316488503 | Template,installation ,top |
|
- |
