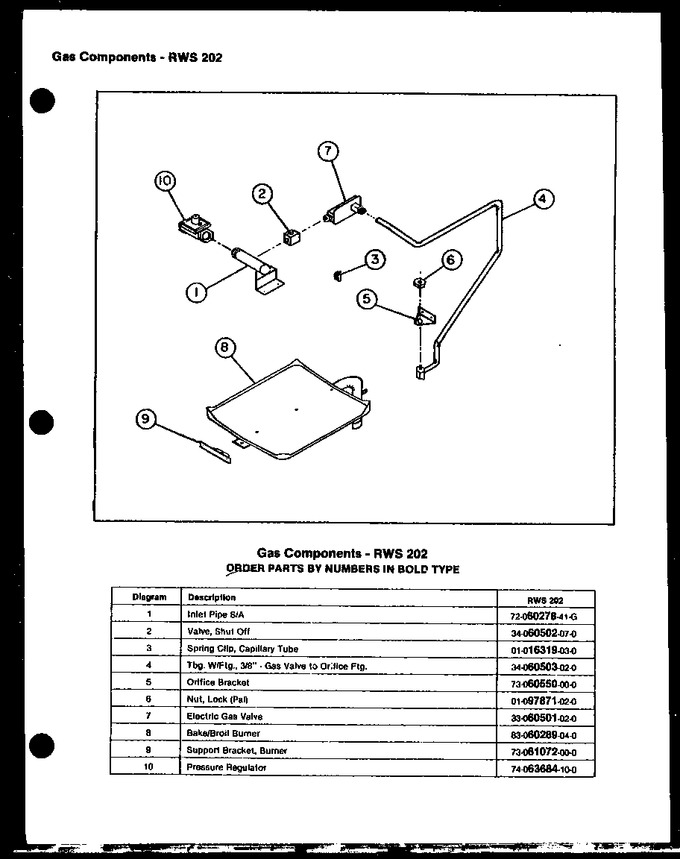

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 0060278 | Inlet Pipe Assy. |
|
- | |||||
| 2 | Y0060502 | Valve, Manual Shut Off |
|
- | |||||
| 3 | Y0016319 | Clip Spring Thermo Bulb |
|
- | |||||
| 4 | 0060503 | Hood & Tube Assy. |
|
- | |||||
| 5 | Y0060550 | Bracket, Orifice |
|
- | |||||
| 6 | Y0097871 | Nut, Pal 3/4-16 X 1.062 |
|
- | |||||
| 7 | Y0060501 | Valve, Gas |
|
- | |||||
| 8 | 0060289 | Broiler Burner Assy |
|
- | |||||
| 9 | Y0061072 | Mtg. Bracket, Broil Burner |
|
- | |||||
| 10 | Y0063684 | Regulator-5``/10`` Side Inlet |
|
- |
