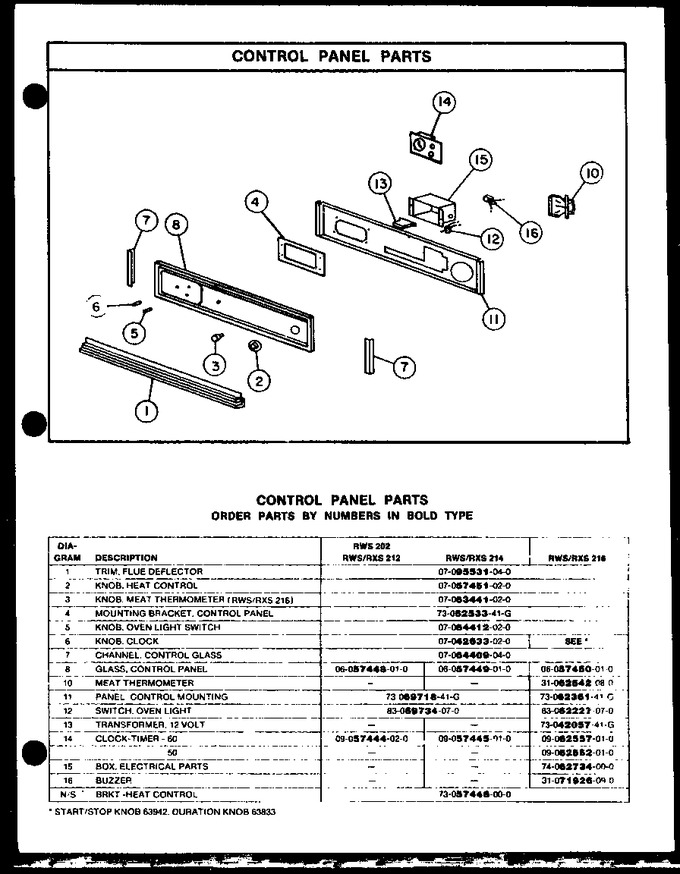

01 - Control Panel Parts
02 - Electrical Components
03 - Gas Components
04 - Oven And Broiler Door Parts Rws-rxs
05 - Oven And Broiler Parts Rws-rxs
06 - Page 1
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0095531 | Trim, Flue-deflector |
|
- | |||||
| 2 | Y0057451 | Knob, Oven Control |
|
$ 22.71 | |||||
| 3 | 0063441 | Knob, Clock |
|
- | |||||
| 4 | 0062533 | Mounting Bracket |
|
- | |||||
| 5 | 0064412 | Knob Light Switch |
|
- | |||||
| 6 | 63942 | Start/stop Knob |
|
- | |||||
| 6 | 63833 | Duration Knob |
|
- | |||||
| 7 | 0064409 | Channel Control Glass |
|
- | |||||
| 8 | 0057450 | Glass, Control Panel |
|
- | |||||
| 10 | 0062542 | Meat Thermometer |
|
- | |||||
| 11 | Y0062361 | Control Mounting Panel |
|
- | |||||
| 12 | Y0062227 | Switch, Oven Light |
|
- | |||||
| 13 | Y0042057 | Transformer Pyro W/o |
|
- | |||||
| 14 | 0062557 | Clock, Digital |
|
- | |||||
| 14 | 0062552 | Clock, Automatic (kit) |
|
- | |||||
| 15 | 0062734 | Box, Electrical Parts |
|
- | |||||
| 16 | 0071926 | Buzzer |
|
- | |||||
| NI | 0057446 | Brkt., Heat Control |
|
- |
