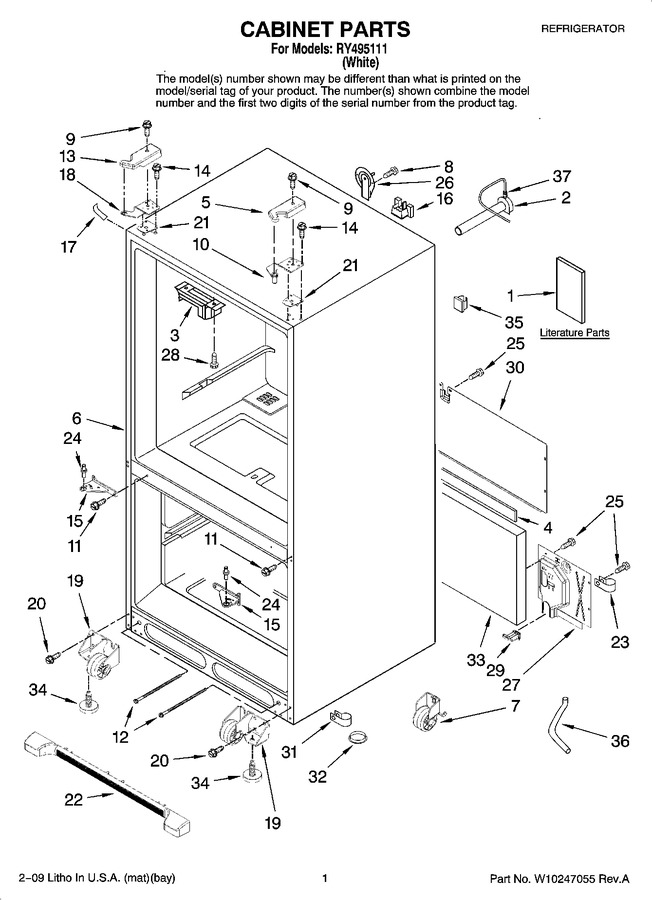

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	W11176463		Elbow, Fill Tube   (Replaces: W10137519)			Immediately	$ 119.86
3	WP67003405		Block, Pivot   (Replaces: 67003405)			Immediately	$ 8.21
4	B5759649		Gasket		Appelez-nous	-
5	12629801W		Cover, Right Hinge (white)				$ 24.68
7	67006118		Roller Assy.(rear)		Appelez-nous	-
8	WP98165		Screw   (Replaces: 67006287)				$ 8.57
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.55
10	12626910ED		Hinge, Top Right   (Replaces: 12626907ED)				$ 124.87
11	W11573362		Screw (6)   (Replaces: 67006380)				$ 14.72
12	67006697		Bolt, Adjusting (rear)				$ 12.88
13	67007156		Cover, Left Hinge (white)		Appelez-nous	-
14	WP489349		Screw (6)   (Replaces: 67006303)			Immediately	$ 8.43
15	12655102AP		Hinge, Center (white)   (Replaces: 12655102WD)				$ 150.87
16	12777701		Block, Fill Tube				$ 7.17
17	12587703W		Cover, Corner (2) (white)				$ 22.90
18	12626911ED		Hinge, Top Left   (Replaces: 12626908ED)				$ 89.05
19	W11820444		Roller Assy.(front) (left)   (Replaces: W10130460)			Immediately	$ 37.35
19	W11820445		Roller Assy.(front) (right)   (Replaces: W10130459)			Immediately	$ 37.35
20	67006564		Screw (8)			Immediately	$ 8.15
21	12579702		Shim, Hinge		Appelez-nous	-
22	W10131133		Grille, Toe (white)		Appelez-nous	-
23	W10833902		Clamp, Tube   (Replaces: M0108105)				$ 11.54
24	WP67006642		Pin, Center Hinge   (Replaces: 67006642)				$ 8.78
25	67006425		Screw (10)			Immediately	$ 7.30
26	12726003		Cover, Water Line   (Replaces: 67003331)				$ 19.19
27	67004735		Cover, Water Valve		Appelez-nous	-
28	WP7101P126-60		Screw (2)   (Replaces: 67006669)			Immediately	$ 8.36
29	12831101		Sweep, Dual Tube   (Replaces: 67004101)				$ 13.03
30	67002230		Cover, Unit		Appelez-nous	-
31	67001067		Clip, Drain Tube				$ 9.66
32	A3076901		Plug-button				$ 5.70
33	67003796		Insulation, Sound				$ 19.27
34	WPW10141622		Brake, Foot   (Replaces: W10141622)			Immediately	$ 8.24
35	WPM0104106		Clip (2)   (Replaces: M0104106)				$ 8.17
36	67001066		Tube, Drain				$ 55.82
37	WPM0114003		Clip   (Replaces: M0114003)				$ 11.60
