SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Parts Not Illustrated

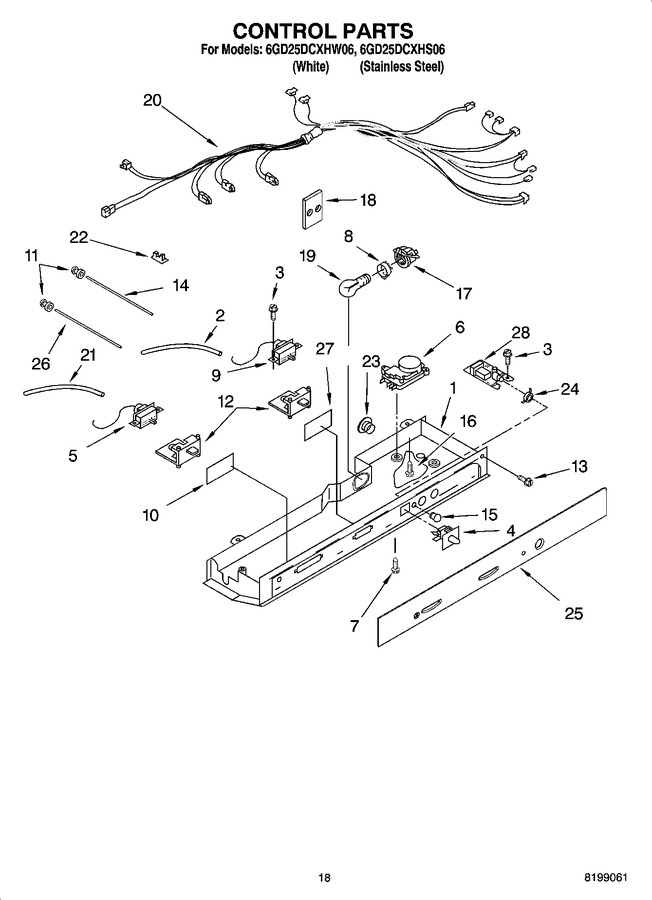

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2200135		Control Box		Appelez-nous	-
2	WP2196003		Tube Barrier, Thermostat (rc)   (Replaces: 2182150)				$ 8.35
3	2006254		Screw   (Replaces: 489214)				$ 13.79
4	WP2149705		Light Switch   (Replaces: 2149705)			Immediately	$ 40.40
5	2187158		Thermostat (fc)				$ 90.49
6	WP2188379		Defrost Timer   (Replaces: 2188380)				$ 203.07
7	489392		Screw (2)   (Replaces: 489398)				$ 14.02
8	WP2175210		Shroud, Light   (Replaces: 2175210)				$ 86.74
9	WP2161460		Thermostat (r.c.)   (Replaces: 2161460)			Immediately	$ 261.10
10	2172940		Window		Appelez-nous	-
11	2172906		Grommet, Light Bar		Appelez-nous	-
12	2161466		Slide, Thermostat				$ 22.28
13	WPW10141645		Screw (2)   (Replaces: 489084)				$ 8.05
14	2179920		Light Bar (rc)				$ 37.08
15	2200096		Cover, Light Lens				$ 64.10
16	WP488488		Screw   (Replaces: 489290)				$ 8.52
17	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 115.67
18	2172931		Heat Shield				$ 73.90
19	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 12.34
20	2206516		Control Box Harness		Appelez-nous	-
21	WP2196003		Tube Barrier, Thermostat (fc)   (Replaces: 2196003)				$ 8.35
22	1115375		Clip, Wiring				$ 11.15
23	940014		Hole Plug				$ 18.33
24	2200097		Retainer, Light Lens		Appelez-nous	-
25	2261751		Cover, Front Control		Appelez-nous	-
26	2179921		Light Bar (fc)		Appelez-nous	-
27	2172941		Window		Appelez-nous	-
28	2205787		P.c. Board Filter Indicator		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
