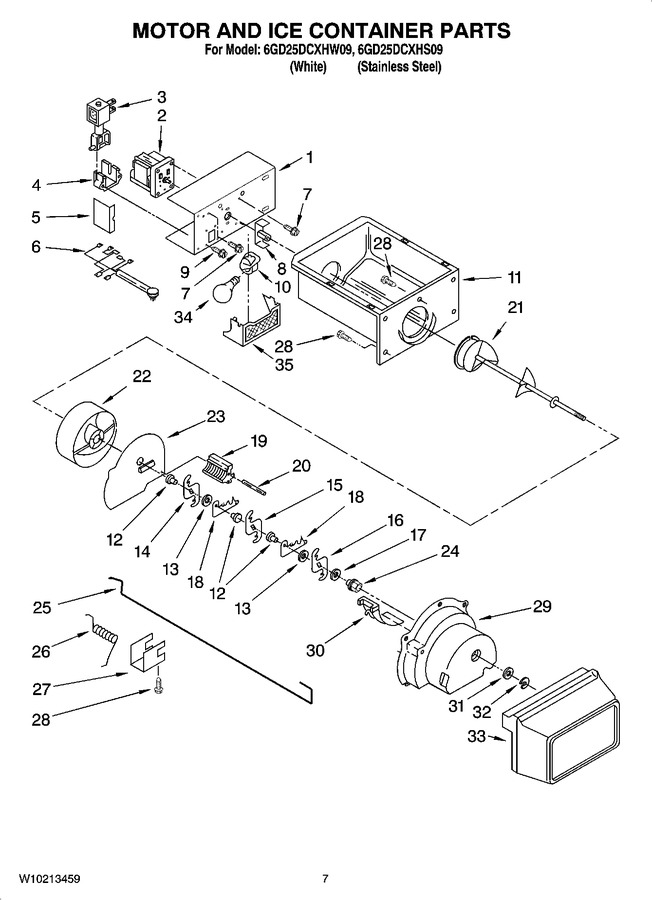

05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2254587		Bracket, Motor		Appelez-nous	-
2	WP2321276		Motor, Dispenser   (Replaces: 2321276)				$ 297.68
3	WPW10129867		Soleniod Assembly   (Replaces: W10129867)				$ 191.61
4	W10850503		Guide, Solenoid   (Replaces: 2149100)				$ 10.87
5	1129563		Shield, Wiring		Appelez-nous	-
6	W10123604		Wiring Assembly, Ice Dispenser		Appelez-nous	-
7	WP489399		Screw   (Replaces: 489399)				$ 7.30
8	WPW10169511		Coupling, Motor   (Replaces: W10140958)				$ 24.51
9	WP489478		Screw   (Replaces: 489478)				$ 8.18
10	W11447232		Socket, Light   (Replaces: W10134764)			Immediately	$ 13.87
11	WPW10670845		Ice Container   (Replaces: 2196091)				$ 199.19
12	WP1119005		Spacer, Step (3)   (Replaces: 1119005)				$ 11.74
13	WP1119007		Spacer, Flat (2)   (Replaces: 1119007)				$ 14.77
14	W10278731		Blade, Rotary   (Replaces: 2257022)				$ 90.87
15	W10278732		Blade, Rotary   (Replaces: 2257023)				$ 91.00
16	W10278733		Blade, Rotary   (Replaces: 2257024)				$ 91.00
17	489235		Washer, Plain				$ 8.05
18	1119009		Blade, Fixed (2)				$ 72.21
19	2157405		Block, Blade				$ 22.33
20	489229		Roll Pin				$ 48.47
21	W10422851		Auger   (Replaces: 2196295)				$ 174.14
22	4388736		Drum   (Replaces: 2305377)				$ 96.97
23	W10852691		Floating Baffle   (Replaces: 2171682)			Immediately	$ 34.85
24	WP1119018		Nut, Bearing   (Replaces: 1119018)				$ 7.90
25	W11596045		Control Arm   (Replaces: 2155231)				$ 35.51
26	1119020		Spring, Return				$ 19.13
27	1119021		Retainer Clip, Rod				$ 10.96
28	WP488787		Screw   (Replaces: 488886)				$ 11.26
29	WPW10185018		Housing, Crusher   (Replaces: 2180348)				$ 130.65
30	WP1119017		Deflector, Ice   (Replaces: 1119017)				$ 7.95
31	489234		Washer, Plain				$ 14.04
32	WP489236		Retainer Ring   (Replaces: 489236)			Immediately	$ 12.78
33	2204321		Front Cover, Ice Container		Appelez-nous	-
34	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 12.34
35	WP2171706		Light Lens, Dispenser   (Replaces: 2171706)				$ 95.91
100	WPW10312300		Ice Container (complete)   (Replaces: 2209780)				$ 388.09
