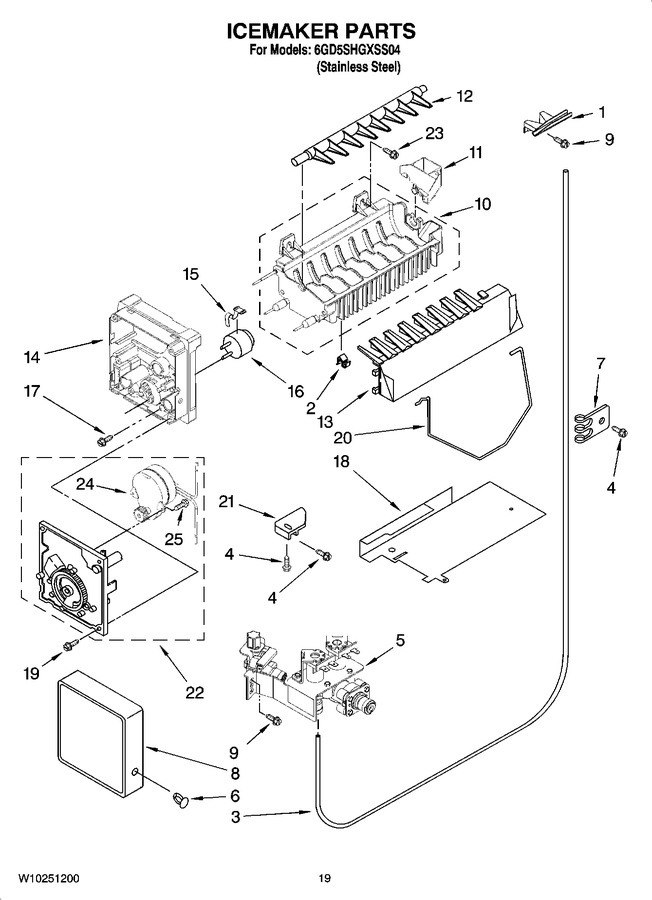

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11505385 | Chute, Water (Replaces: 2209774) |
|
$ 31.79 | |||||
| 2 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 9.99 | |||||
| 3 | W10823511 | Tube, Water (Replaces: 2223137) |
|
Immediately | $ 29.17 | ||||
| 4 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 5 | WPW10158157 | Filter Valve Asm (Replaces: W10158157) |
|
$ 237.54 | |||||
| 6 | 489115 | Clip |
|
$ 5.51 | |||||
| 7 | WP488366 | Tube Clamp (Replaces: 489385) |
|
$ 10.73 | |||||
| 8 | WPW10289690 | Cover (Replaces: 2174183) |
|
$ 7.94 | |||||
| 9 | WPW10141625 | Screw (Replaces: 488649) |
|
$ 20.00 | |||||
| 10 | W10122523 | Mold & Heater Assembly (also Order 542638) |
|
- | |||||
| 11 | W10122561 | Cup, Water Fill (Replaces: 628515) |
|
$ 26.24 | |||||
| 12 | WP627843 | Ejector (Replaces: 627843) |
|
$ 79.00 | |||||
| 13 | WP2182124 | Ice Striper (Replaces: 2182124) |
|
$ 81.32 | |||||
| 14 | WP2195914 | Support (Replaces: 2195914) |
|
$ 98.82 | |||||
| 15 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 10.44 | |||||
| 16 | WP2321258 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 2321258) |
|
$ 93.54 | |||||
| 17 | W10001280 | Screw |
|
- | |||||
| 18 | 2256178 | Heat Shield (Replaces: 2182414) |
|
- | |||||
| 19 | WP489478 | Screw (Replaces: W10001260) |
|
$ 7.36 | |||||
| 20 | W11807379 | Shut Off Arm (Replaces: 2304354) |
|
Immediately | $ 56.89 | ||||
| 21 | W11500948 | Bracket (Replaces: 628320) |
|
Immediately | $ 30.40 | ||||
| 22 | W10122522 | Module Assembly (includes Items 24 And 25) |
|
- | |||||
| 23 | W10141596 | Screw |
|
$ 8.30 | |||||
| 24 | 2321277 | Motor |
|
- | |||||
| 25 | W10001240 | Screw |
|
$ 8.30 | |||||
| 100 | W10190963 | Complete Icemaker Assembly |
|
- | |||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| 799340 | Paint, Bulk (1qt.) (black) |
|
- | ||||||
| 799344 | Paint, Bulk (1qt.) (white) |
|
$ 237.46 | ||||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 86.78 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 7.62 | ||||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 11.50 | |||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 111.46 | ||||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 164.39 | |||||
| 72032 | Paint, Touch-up 1/2 Oz. (black) |
|
Immediately | $ 18.69 | |||||
| 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | |||||
| 350942 | Paint, Pressurized Spray (12 Oz.) (primer, White) |
|
$ 84.73 | ||||||
| 285006 | Paint, Pressurized Spray (12 Oz.) (black) (Replaces: 350939) |
|
$ 53.90 | ||||||
| 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 |
