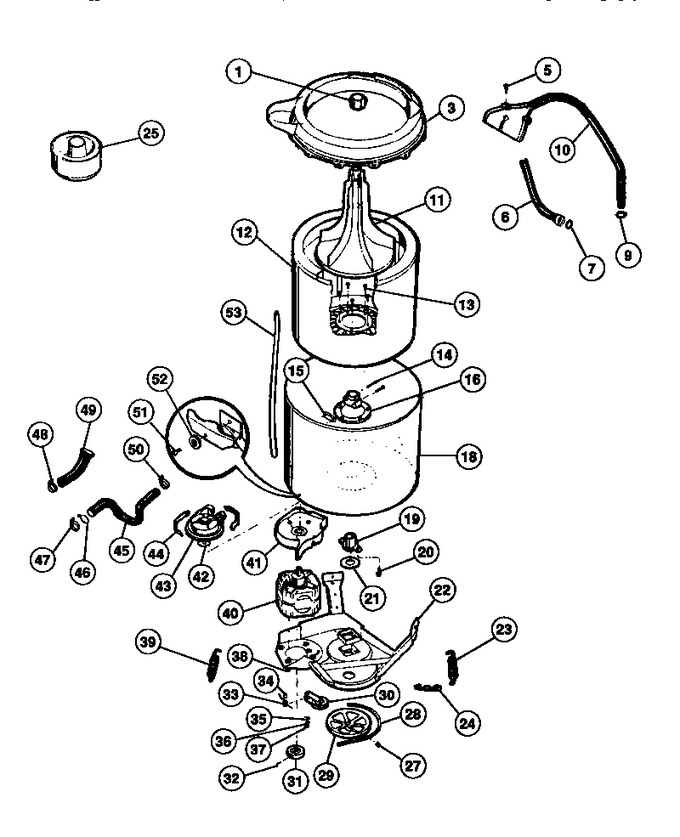

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3204395		Cap-agitator				$ 50.38
2	3204396		Seal Cap				$ 33.36
3	131196700		Cover-splash Tub		Appelez-nous	-
5	131205300		Screw			Immediately	$ 13.44
6	3804FF		Hose-inlet (2)   (Replaces: 5303271009)			Immediately	$ 18.67
7	5303161296		Washer (4)			Immediately	$ 2,636.62
9	5304488479		Clamp   (Replaces: 5303304824)			Immediately	$ 35.65
10	3204400		Nozzle & Hose		Appelez-nous	-
11	3204401		Agitator				$ 126.81
12	131099500		Spin Tub		Appelez-nous	-
13	137546400		Screw (5)   (Replaces: 5303283293)				$ 31.50
14	137539500		Screw   (Replaces: 131192800)				$ 22.49
15	137107000		Lockplate   (Replaces: 5308001923)			Immediately	$ 29.93
16	131154501		Trunnion		Appelez-nous	-
18	3204404		Splash Tub & Bearing		Appelez-nous	-
19	3204405		Bearing-upper Spin			Immediately	$ 108.68
20	3205150		Screw				$ 3.94
21	5308002401		Washer			Immediately	$ 17.78
22	131373600		Leg & Dome		Appelez-nous	-
23	134886600		Spring-vertical (short)   (Replaces: 5303208858)				$ 41.74
24	131373900		Spring-horizontal				$ 41.30
27	5303270023		Screw				$ 29.78
28	134511600		Belt   (Replaces: 131234000)			Immediately	$ 31.57
29	131361800		Pulley-transmission		Appelez-nous	-
30	3204422		Idler Arm		Appelez-nous	-
31	3204423		Pulley-motor				$ 140.07
32	3204424		Pin				$ 12.60
33	3204425		Spring Torsion				$ 45.09
34	3204426		Sleeve-idler Pivot				$ 9.35
35	3161433		Retaining Ring				$ 20.88
36	5303261031		Washer-pivot Shaft				$ 12.71
37	5303161306		Spring Washer				$ 13.88
38	5303283079		Hex Nut		Appelez-nous	-
39	134885900		Spring-vertical   (Replaces: 5303208860)				$ 23.63
40	3205647		Motor-main		Appelez-nous	-
41	131081700		Shield-motor				$ 84.26
42	3204451		Slinger-pump		Appelez-nous	-
43	131208500		Pump-complete		Appelez-nous	-
44	131217100		Clip-pump		Appelez-nous	-
45	3204454		Hose-pump To Coupler		Appelez-nous	-
46	3204455		Clip-hose To Leg		Appelez-nous	-
47	3204456		Clamp		Appelez-nous	-
48	3204457		Clamp		Appelez-nous	-
49	5303931759		Hose-pump To Tub				$ 223.26
50	3204456		Clamp		Appelez-nous	-
51	3204459		Screw				$ 24.20
52	131315800		Washer		Appelez-nous	-
53	5304401845		Tube, Pressure   (Replaces: 5300771996)				$ 64.58
*46283	5303212877		Spring Adjustment Insert				$ 18.38
*46284	5303293588		Switch-motor		Appelez-nous	-
