SELECT A DIAGRAM

02 - Top And Cabinet , Literature And Optional

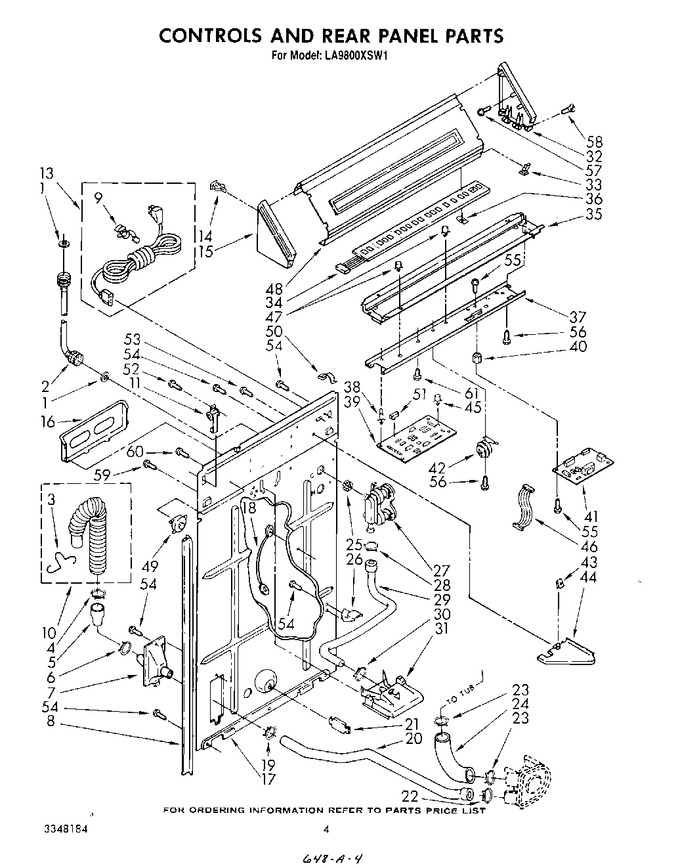

03 - Controls And Rear Panel


04 - Agitator, Basket And Tub


05 - Miscellaneous


06 - Brake, Clutch, Gearcase, Motor And Pump


07 - Machine Base


08 - Brake And Drive Tube


09 - Gearcase


10 - Wiring Harness


11 - Water System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4)   (Replaces: 16123)				$ 8.16
2	WP89503		Hose, Water Inlet (2)   (Replaces: 81339)			Immediately	$ 24.09
3	357247		Retainer, Wire		Appelez-nous	-
4	WP616099		Clamp, Hose   (Replaces: 371504)			Immediately	$ 8.58
5	WP384496		Coupling, Hose   (Replaces: 384496)				$ 90.39
6	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 8.52
7	WPW10358149		Connector, Drain   (Replaces: 63206)			Immediately	$ 48.16
8	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 27.57
9	W11733005		Clip, Strain Relief   (Replaces: 63848)				$ 13.58
10	285664		Hose, Corrugated Plastic Drain (5-1/2 Ft.)   (Replaces: 387325)			Immediately	$ 36.89
10	285666		Hose, Corrugated Plastic Drain (10 Ft.) (not Included)   (Replaces: 388418)			Immediately	$ 62.34
11	387402		Hinge, Console (2)				$ 5.84
13	W10820044		Cord, Power   (Replaces: 62734)				$ 149.87
14	689559		Nut, Push-in (2)		Appelez-nous	-
15	63789		Cap, End (l.h.)		Appelez-nous	-
16	63020		Rack, Literature				$ 30.32
17	387692		Panel, Rear		Appelez-nous	-
18	364089		Wire, Ground		Appelez-nous	-
19	WP356138		Clamp, Hose   (Replaces: 272856)			Immediately	$ 8.52
20	WP3348552		Hose, Pump To Drain Connector   (Replaces: 3348552)				$ 89.09
21	WP8519200		Support, Rear Panel   (Replaces: 63290)			Immediately	$ 19.85
22	WP285655		Clamp, Hose   (Replaces: 272858)			Immediately	$ 8.81
23	WP371502		Clamp, Hose   (Replaces: 371502)				$ 12.31
24	285871		Hose, Pump To Tub   (Replaces: 62731)			Immediately	$ 28.99
25	WP96160		Screen, Filter (2)   (Replaces: 96160)				$ 12.30
26	63162		Pin, Cabinet Guide (2)		Appelez-nous	-
27	285805		Valve, Mixing   (Replaces: 358992)			Immediately	$ 55.08
28	WP596669		Clamp, Hose   (Replaces: 272846)			Immediately	$ 8.82
29	WP3357328		Hose, Vacuum Break   (Replaces: 62662)			Immediately	$ 24.78
30	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 8.82
31	WP3360977		Vacuum Break   (Replaces: 387606)			Immediately	$ 50.46
32	63795		Cap, End. (r.h.)				$ 14.10
33	W10113937		Clip, Grounding   (Replaces: 357572)				$ 11.37
34	3407025		Touch Module		Appelez-nous	-
35	387861		Bracket, Control		Appelez-nous	-
36	445189		Nut, Push-on Spring		Appelez-nous	-
37	387857		Bracket, Console		Appelez-nous	-
38	313087		Support, Circuit Board (4)		Appelez-nous	-
39	3407003		Microcomputer		Appelez-nous	-
40	388249		Stand-off (4) (relay Board Mounting)		Appelez-nous	-
41	3407002		Power Supply		Appelez-nous	-
42	64195		Switch, Water Level		Appelez-nous	-
43	388494		Clip, ``u``		Appelez-nous	-
44	388904		Shield, Suds		Appelez-nous	-
45	772566		Support, Circuit Board		Appelez-nous	-
46	772553		Jumper, Board To Board		Appelez-nous	-
47	3348413		Support, Circuit Board (3)		Appelez-nous	-
48	3348431		Panel And Bezel, Control		Appelez-nous	-
49	3347639		Speaker		Appelez-nous	-
50	WP98997		Clip, Hose Routing   (Replaces: 98997)				$ 11.64
51	3407005		Connector, Two Terminal		Appelez-nous	-
52	WP308685		Screw, 10-16 X 1/2   (Replaces: 9416643)			Immediately	$ 7.87
53	339583		Screw, 6-20 X 1/2		Appelez-nous	-
54	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 8.25
55	302252		Screw, 6-32 X 1/4 (8) Board And Standoff Mounting)		Appelez-nous	-
56	WP90767		Screw, 8a X 3/8   (Replaces: 90767)			Immediately	$ 8.25
57	355326		Screw, 13-16 X 5/8		Appelez-nous	-
58	WP388326		Screw, Console To Top   (Replaces: 64211)				$ 9.29
59	WP681414		Screw, 10-16 X 1/2   (Replaces: 359262)			Immediately	$ 8.47
60	WP681414		Screw,10-16 X 1/2   (Replaces: 343641)			Immediately	$ 8.47
61	WP3351614		Screw, Ground 10-24 X 3/8   (Replaces: 90864)			Immediately	$ 7.30

    View Diagram in Separate Window       Print Part List
