SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts

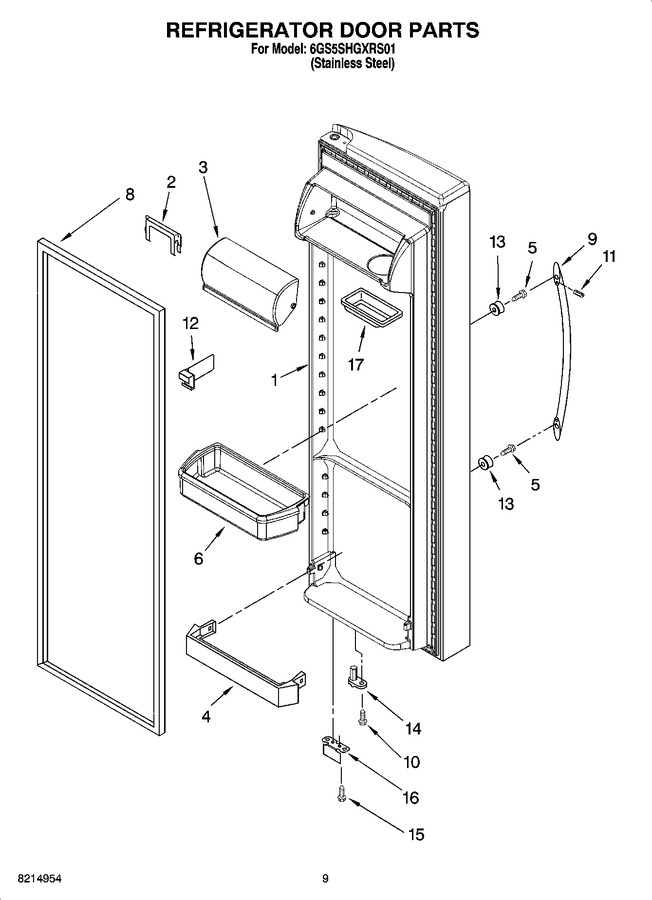

06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2254938SB		Refrigerator Door (includes Item 8) (stainless Steel)		Appelez-nous	-
2	2173643K		Retainer, Bottle		Appelez-nous	-
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 85.16
4	WP2156022		Trivet, Shelf   (Replaces: 2156022)			Immediately	$ 72.80
5	WP488163		Screw   (Replaces: 488208)				$ 7.54
6	WPW10321304		Shelf Bin (3)   (Replaces: 2304235K)			Immediately	$ 44.73
8	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
9	2304832S		Handle (includes 11) (stainless Steel)				$ 131.26
10	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
11	W11366418		Screw, Set   (Replaces: W10010140)			Immediately	$ 15.79
12	2195496K		Divider, Bin		Appelez-nous	-
13	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
14	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
15	WP489483		Screw   (Replaces: 489420)				$ 10.87
16	2200082B		Bracket, Door Stop (black)				$ 42.44
17	2165792K		Butter Dish				$ 9.72

    View Diagram in Separate Window       Print Part List
