Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 13024093SQ Door, Left (stainless) Appelez-nous -
2 13024074SQ Door, Right (stainless) Appelez-nous -
3 WP67003637 Door, Dairy   (Replaces: 12804701SP) In-Stock Immediately $ 82.67

4 WP67001279 Tray, Dairy   (Replaces: 12369502SP) In-Stock Immediately $ 88.01

5 WPW10324005 Bin, Shelf (3) (medium)   (Replaces: 12557212) Special Order $ 77.75

6 12722811AP Mullion, Door (apollo Grey) Appelez-nous -
7 W11311945 Screw   (Replaces: 12990204) Special Order $ 14.72

8 W10830162 Gasket, Door (2) (apollo Grey)   (Replaces: W10179332) In-Stock Immediately $ 212.57

9 W11351147 Handle, Door (stainless)   (Replaces: W10223019) Special Order $ 198.22

10 WP98165 Screw   (Replaces: 12990504) Special Order $ 8.57

11 W11401472 Stop, Door (apollo Grey)   (Replaces: 10447114) In-Stock Immediately $ 23.56

12 2220214 Nameplate Special Order $ 32.43

13 WP12992902 Screw, Handle   (Replaces: 12992902) Special Order $ 11.91

15 WP12028505AP Closure, Door (apollo Grey)   (Replaces: 12028505AP) In-Stock Immediately $ 61.46

16 WPW10289494 Bin, Shelf (2) (gallon)   (Replaces: 12699004) Special Order $ 87.58


    View Diagram in Separate Window     Print Icon   Print Part List

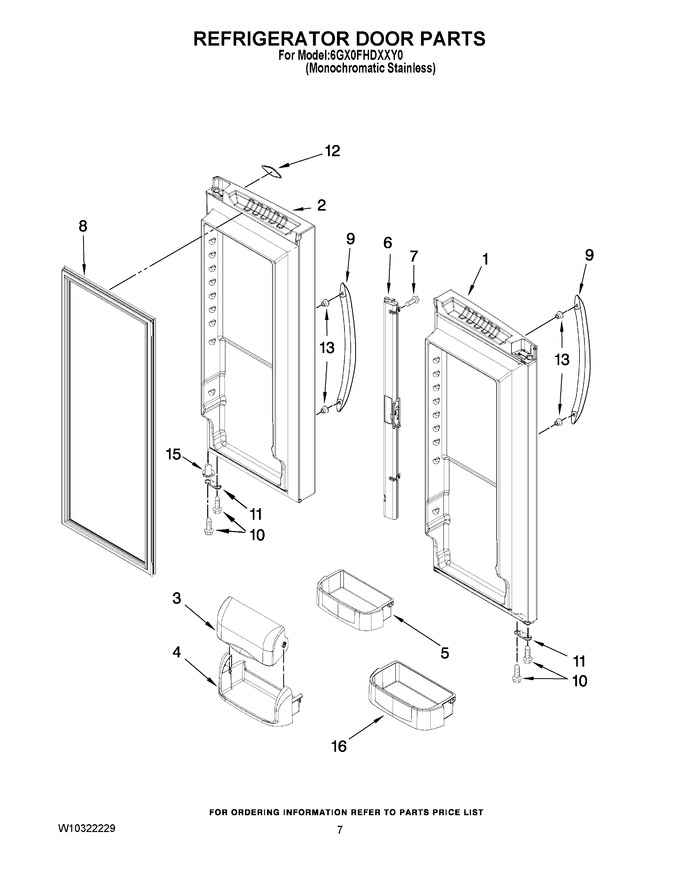

Diagram for 6GX0FHDXXY0
