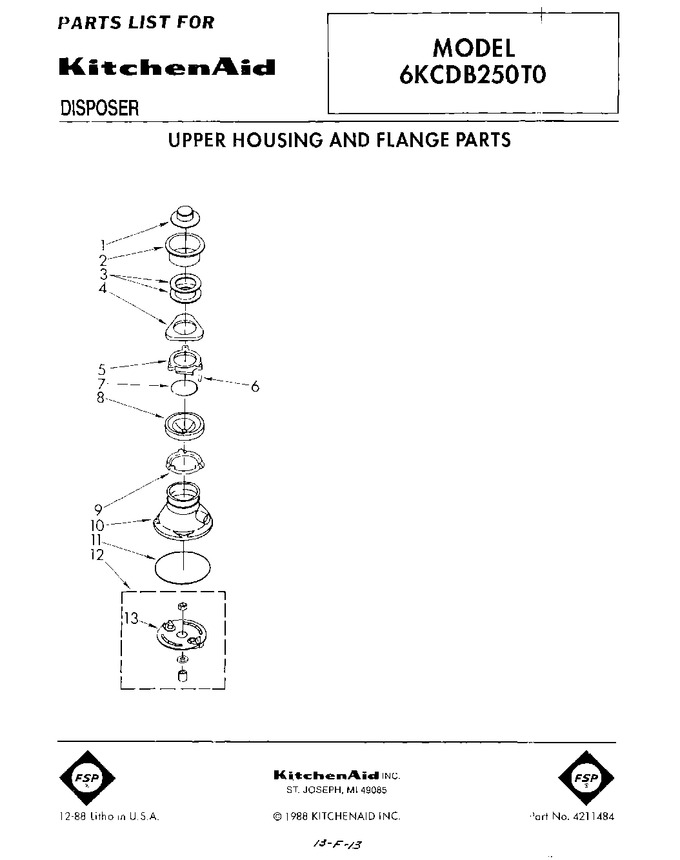

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4211300 | Stopper Assembly |
|
$ 27.11 | |||||
| 2 | 4211301 | Flange, Strainer |
|
$ 81.01 | |||||
| 3 | WP4211302 | Seal, Sink Flange (2) (Replaces: 4211302) |
|
$ 8.58 | |||||
| 4 | 4211303 | Flange, Backup |
|
- | |||||
| 5 | 4211304 | Flange, Mounting |
|
$ 137.21 | |||||
| 6 | 4211305 | Screw, Backup (3) |
|
$ 14.11 | |||||
| 7 | 4211306 | Ring, Retaining |
|
$ 10.56 | |||||
| 8 | 4211615 | Gasket, Mounting (Replaces: 4211307) |
|
$ 27.96 | |||||
| 9 | 4211308 | Flange, Body |
|
- | |||||
| 10 | 4211309 | Container, Body Assembly |
|
- | |||||
| 11 | 4211310 | O-ring |
|
- | |||||
| 12 | 4211578 | Kit, Sleeve And Seal (includes Nut, Slinger & Sleeve) (Replaces: 4211311) |
|
$ 124.78 | |||||
| 13 | 4211312 | Shredder Assembly, Rotating |
|
- |
